21

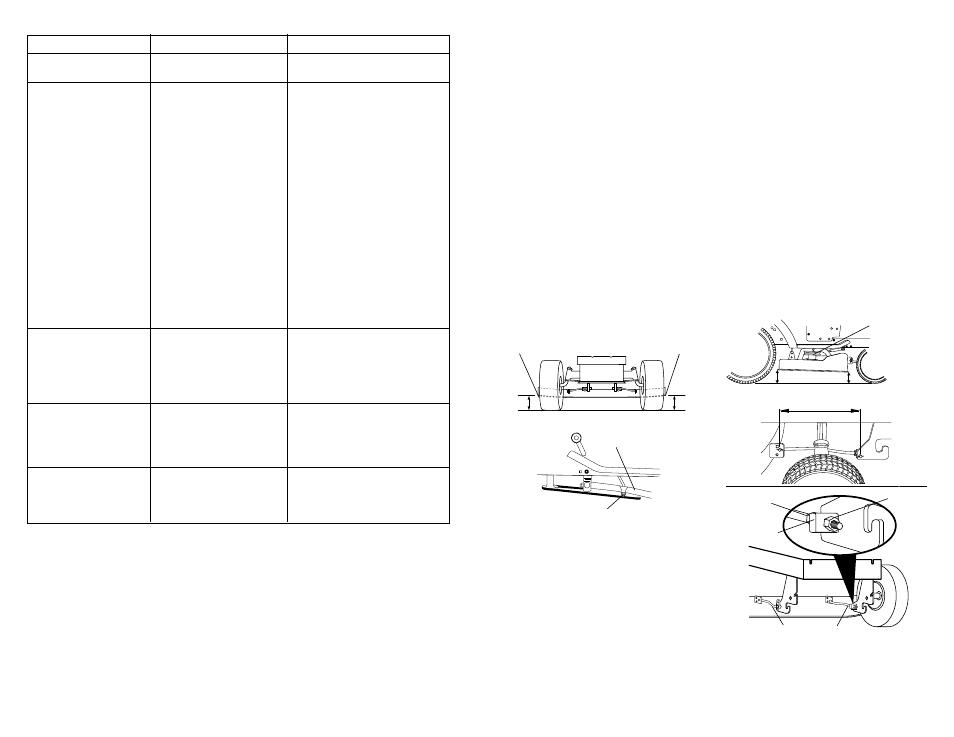

Both Front Links Should be Equal in Length
Nut “F”
Ground Line
Bottom edge of
mower to ground
Suspension Arm
Lift Link Adjustment Nut
Bottom edge of
mower to ground
A A
FRONT-TO-BACK ADJUSTMENT
IMPORTANT: Deck must be level side-to
side. If the following front-to-back
adjustment is necessary, be sure to
adjust both front links equally so mower
will stay level side-to-side.
To obtain the best cutting results, the
mower housing should be adjusted so
that the front is approximately 1/8" to 1/2"
lower than the rear when the mower is in
its highest position. Trunnion
Front Links
Nut “E”
“D” “D”
Mandrel
Check adjustment on right side of tractor.
Measure distance “D” directly in front
and behind the mandrel at bottom edge
of mower housing as shown.
• Before making any necessary adjust-
ments, check that both front links are
equal in length. Both links should be
approximately 10-3/8".
• If links are not equal in length, adjust
one link to same length as other link.
• To lower front of mower loosen nut “E”
on both front links an equal number of
turns.
• When distance “D” is 1/8" to 1/2" lower
at front than rear, tighten nuts “F”
against trunnion on both front links.
• To raise front of mower, loosen nut “F”
from trunnion on both front links.
Tighten nut “E” on both front links an
equal number of turns.
• When distance “D” is 1/8" to 1/2" lower
at front than rear, tighten nut “F”
against trunnion on both front links.
• Recheck side-to-side adjustment.
TO LEVEL MOWER HOUSING
Adjust the mower while tractor is parked
on level ground or driveway. Make sure
tires are properly inflated (See “PROD-
UCT SPECIFICATIONS” section of this
manual). If tires are over or
underinflated, you will not properly
adjust your mower.
SIDE-TO-SIDE ADJUSTMENT
• Raise mower to its highest position.
• At the midpoint of both sides of mower,
measure height from bottom edge of
mower to ground. Distance “A” on
both sides of mower should be the
same or within 1/4" of each other.
• If adjustment is necessary, make
adjustment on one side of mower only.
• To raise one side of mower, tighten lift
link adjustment nut on that side.
• To lower one side of mower, loosen lift
link adjustment nut on that side.
NOTE: Each full turn of adjustment nut
will change mower height about 1/8".
• Recheck measurements after adjust-
ing.
28
Mower blades will not • Frozen idler pulley. • Replace idler pulley.
rotate (Cont’n) • Frozen blade mandrel. • Replace blade mandrel.
Poor grass discharge • Engine speed too slow. • Place throttle control in “FAST”
position.
• Travel speed too fast. • Shift to slower speed.
• Wet grass. • Allow grass to dry before
mowing.
• Mower deck not level. • Level mower deck.
• Low/uneven tire air • Check tires for proper air
pressure. pressure.
• Worn, bent or loose blade. • Replace/sharpen blade.
Tighten blade bolt.
• Buildup of grass, leaves
• Clean underside of mower
and trash under mower. housing.
• Mower drive belt worn.
• Replace mower drive belt.
• Blades improperly • Reinstall blades sharp edge
installed. down.
• Improper blades used. • Replace with blades listed
in this manual.
• Clogged mower deck • Clean around mandrels to
vent holes from buildup open vent holes.
of grass, leaves, and
trash around mandrels.
Headlight(s) not • Switch is “OFF”. • Turn switch “ON”.
working (if so • Bulb(s) burned out. • Replace bulb(s).
equipped) • Faulty light switch. • Check/replace light switch.
• Loose or damaged • Check wiring and connections.
wiring.
• Blown fuse.
• Replace fuse.
Battery will not charge • Bad battery cell(s). • Replace battery.
• Poor cable connections. • Check/clean all connections.
• Faulty regulator (if so • Replace regulator.
equipped).
• Faulty alternator.
• Replace alternator.
Engine “backfires” • Engine throttle control • Move throttle control to
when turning engine not set at “SLOW” “SLOW” position and allow
“OFF” position for 30 seconds to idle for 30 seconds before
before stopping engine. stopping engine.
TROUBLESHOOTING CHART
PROBLEM CAUSE CORRECTION
