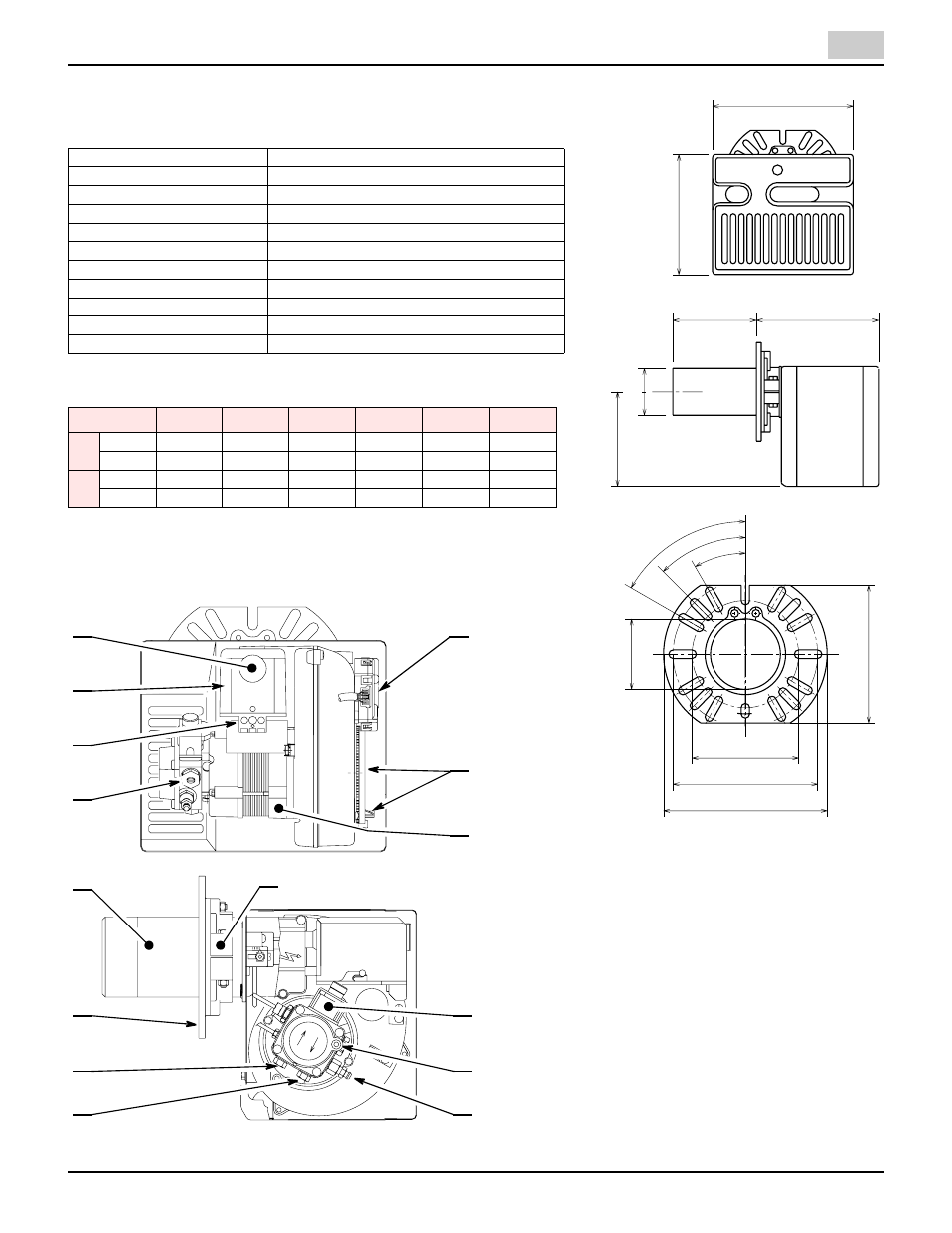

TECHNICAL DATA
SPECIFICATIONS
BURNER DIMENSIONS
E1: 10-inch long (254mm) tubes are also available.
BURNER COMPONENTS IDENTIFICATION
Fuel
No heavier than # 2 fuel oil
F3 Firing rate - Effective Output
0.50 to 0.95 US GPH - 70,000 to 133,000 BTU/h
F5 Firing rate - Effective Output
0.75 to 1.65 US GPH - 105,000 to 231,000 BTU/h
Voltage (single phase)
120V 60Hz (+ 10% - 15%)
F3 Absorbed electrical power
155 Watts
F5 Absorbed electrical power
175 Watts
Motor (rated)
3250 rpm Run Current 2.2 AMP
Capacitor
12.5 Microfarads
Pump pressure
130 to 200 psig
Primary control
RIELLO 530 SE/C
Ignition transformer
8kV 16mA
Model
A
B
C
D
E
F
F3
Inches
8 15/32
9 59/64
6 15/32
3 1/2
6
8 29/32
mm
215
252
164
89
152
226
F5
Inches
9 11/64
10 11/16
7 3/32
3 1/2
6
9 13/32
mm
233
272
180
89
152
239
BURNER COMPONENTS
1
Lockout indicator lamp and reset button
2
Primary control
3
Primary control sub-base
4
Pump pressure regulator
5
Motor
6
Air adjustment and shutter
7
Electronic air shutter assembly
8
Combustion head
9
Semi flange 2 pieces
10
Mounting flange with gasket
11
Supply fuel line port
12
Pump valve (coil)
13
Vacuum gauge port
14
Pressure gauge and bleeder port
15
Return fuel line port
5 1/2”-140mm
7 1/2” - 190 mm
8 15/32” - 215 mm
7
3/
32
”
- 18
0 m
m
3
31
/ 32
”
101
mm
60
°
45°
30°
D7351
D7352
B
A
E
F
E1
C
D
D7304
1
2
3
4
5
6
7
11
8
10
9
12
13
14
15
