QUICK REFERENCE GUIDE

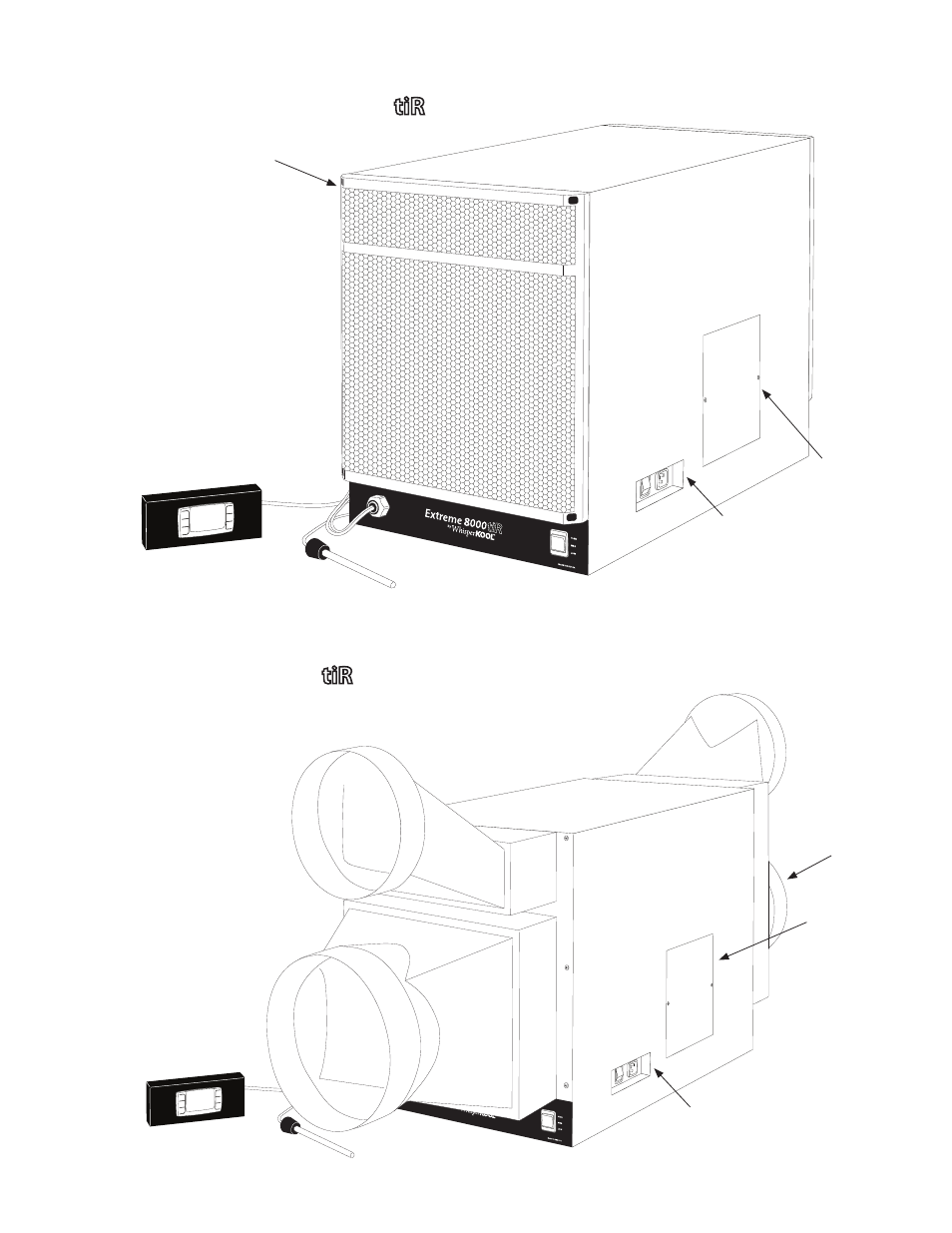

8000 - Front / Side View
8000 Fully Ducted - Front / Side View
Compressor
Access Panel
Controller w/Remote Box
Bottle Probe
Grille w/Filter
Control Panel
(see page 14 for details)
Compressor
Access Panel
Fan Speed Control
Controller w/Remote Box
Bottle Probe
Return Plenum
Supply Plenum
Control Panel
(see page 14 for details)
Compressor
Access Panel
Fan Speed Control
Exhaust Plenum
Intake Plenum
