Exterior Grille Installation

The exterior grille is required on all installations where the exhaust side of the unit is exposed to the outside of the

dwelling (i.e. rain and weather).

Non-Flush Installation

Install the system according to the standard through-the-wall procedure. After the system is installed, remove the

exhaust side filter grille and place the exterior grille over the system. Line up the screw holes on the top, bottom, and

sides. Use the supplied (8) self tapping screws to fasten the grille to the unit.

Flush Installation

This installation is slightly different because you are utilizing the same holes for both the mounting flanges and exte-

rior grille.

1. Slide the exterior grille onto the system and align the screw holes of the exterior grill with the screw locations

on the system.

2. Place the top mounting flange and use the supplied self tapping screws to fasten the flange and grille to the

system.

3. Repeat step 2 on the bottom and sides of the system.

4. Continue through-the-wall installation.

It is required to use self tapping screws provided. Do not drill screws into unit.

OPTIONAL EXTERIOR GRILLE

8000 / 8000

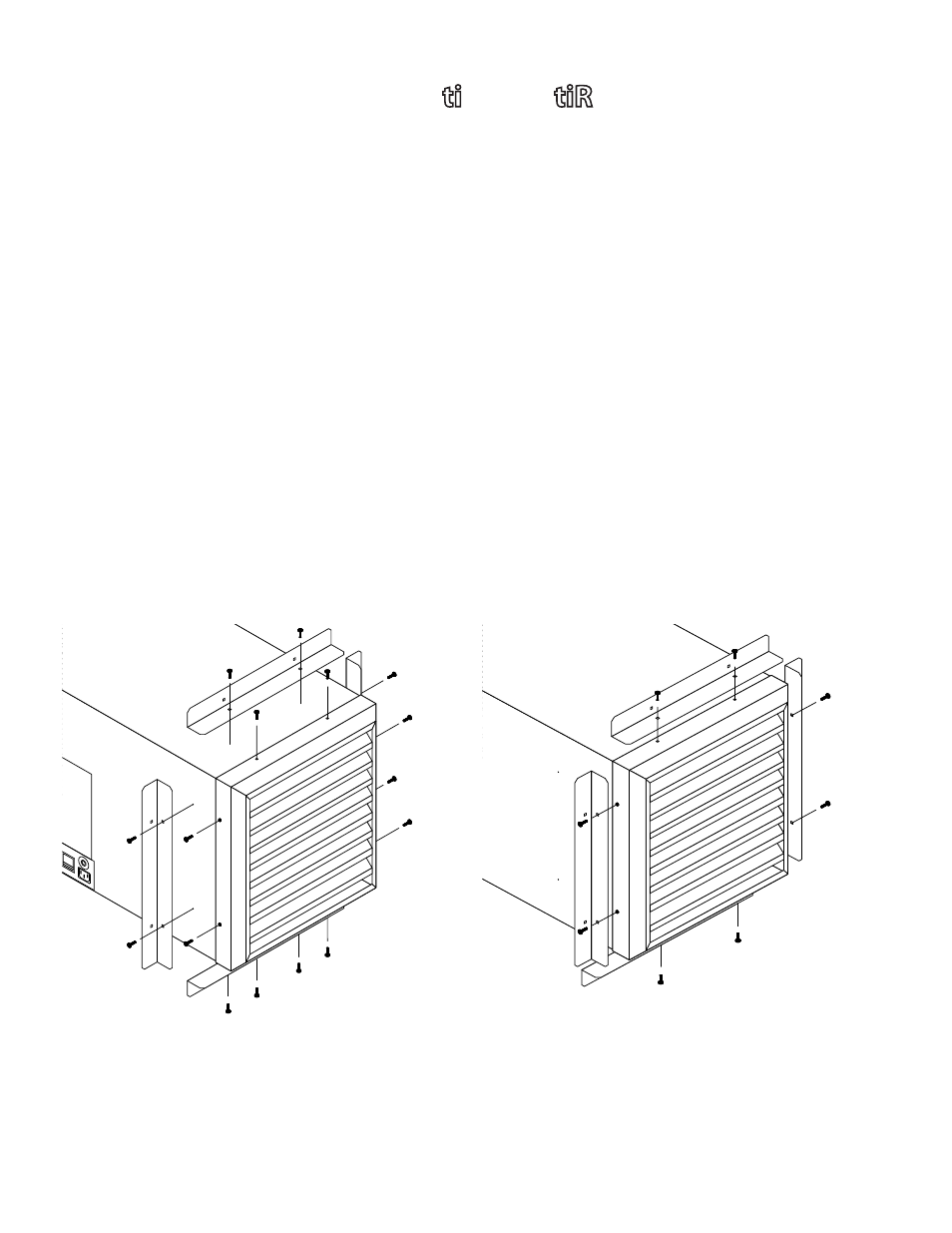

Non-Flush Installation

Flush Installation
