CONTROLS

86037580 GLIDE 01/03/07

3-13

15. STEERING WHEEL

The steering wheel turns the front wheel causing the machine to change direction.


16. STEERING TILT LEVER

The steering tilt lever is located on the right side of the steering wheel. To engage the tilt adjustment,
pull on the lever and adjust the steering column to desired position. Release lever and allow it to lock
into desired position.


17. HORN BUTTON

The horn button is located on left side of the steering column. The horn is activated by pressing the
horn button.


18. SEAT ADJUSTMENT GRAB BAR

The seat adjustment grab bar is located in front of seat at the bottom. While in a standing position,
grasp the back of the seat and the seat adjustment grab bar and lift seat into the adjustment slot and
lower into one of the locking positions. Adjust the seat to the desired position.


19. SQUEEGEE CAMBER ADJUSTMENT KNOB

The squeegee camber adjustment knob is located at the center of the squeegee at the rear of the
machine. (See maintenance section for adjustment).


20. SQUEEGEE DEFECTION ADJUSTMENT KNOB

The squeegee deflection knobs are located at the rear of the machine, one on either side of the
squeegee assembly. (See maintenance section for adjustment).


21. SIDE SQUEEGEE DEFECTION ADJUSTMENT KNOB

Side squeegee adjustment knobs are located above the scrub deck. (See maintenance section for
adjustment).

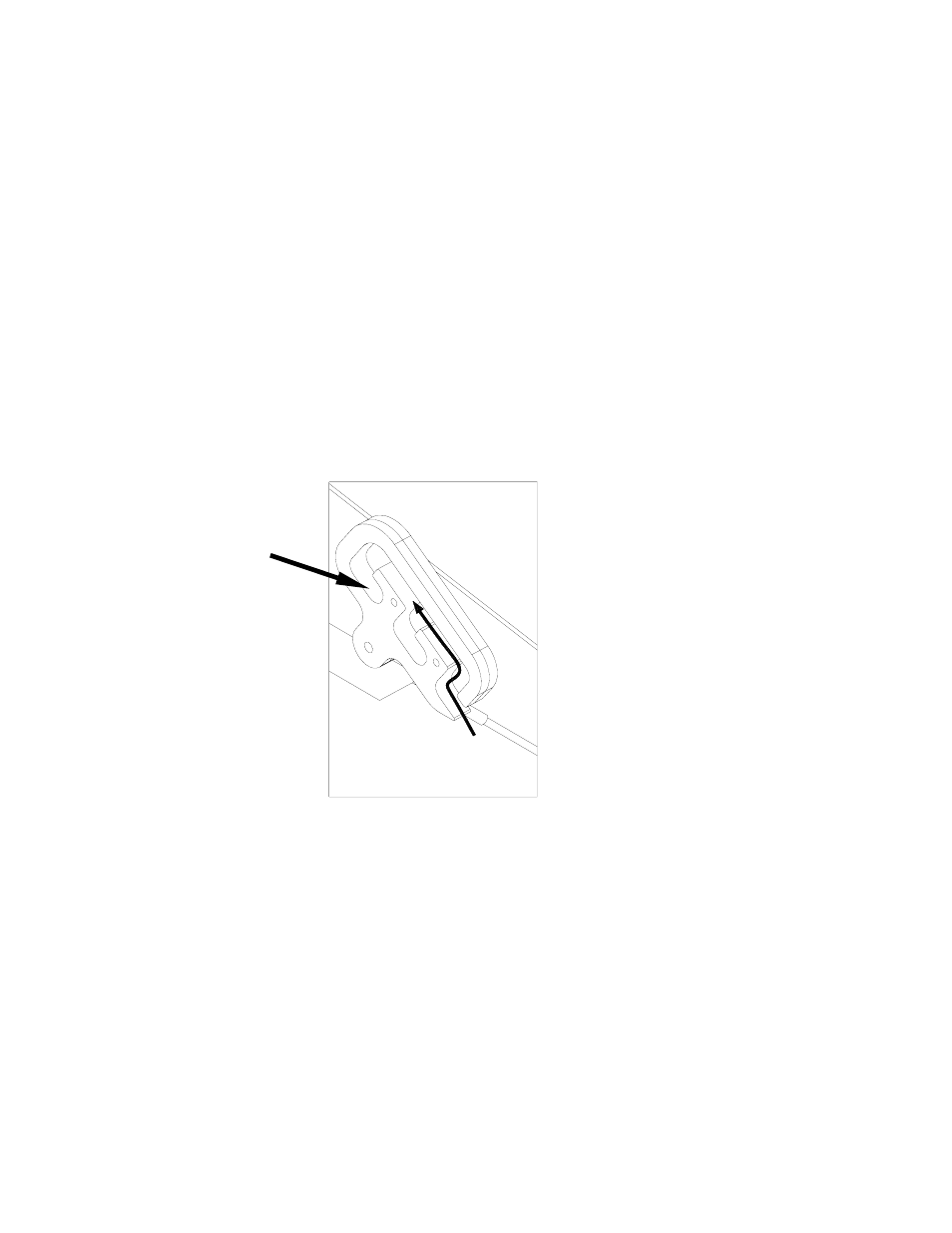

Locking position

Adjustment slot
