11
En
Connections
Eng
lish
If your AV receiver has video output jacks,
connect your receiver and then your TV so
that you can use one TV for several different
video sources (LD, VCR, etc.) by simply
switching the input source selector of your
receiver.
This unit has several types of video output
jacks. Use the one that corresponds to the
input jacks of the component to be connected.
S-video jack
S-video connections achieve a clearer picture
than composite video connections by
transmitting video signals on separate wires
for luminance (Y) and chrominance (C).
Connect the VIDEO OUT (S VIDEO) jack of
this unit to an S-video input jack of your AV
receiver and then to that of your TV using a
commercially available S-video cable.
Composite video jack
Connect the VIDEO OUT (VIDEO) jack of
this unit to a video input jack of your AV
receiver and then to that of your TV using the
supplied audio/video cable.
Component video jacks
Component video connections achieve higher
fidelity color reproduction than S-video
connections by transmitting video signals on
separate wires for luminance (Y: green) and
chrominance (P
B : blue, P R : red).
Connect the COMPONENT VIDEO OUT (Y,
P
B
, P
R
) jacks of this unit to component input
jacks of your AV receiver and then to those of
your TV using a commercially available
component cable. Observe the color of each
jack when you make connections.
If your receiver does not have component
output jacks, you can achieve a better video
image by connecting the component output
jacks of this unit directly to the component
input jacks of your TV.
y
If your AV receiver is equipped with the video
conversion function, you can connect the receiver
and your TV using the different cables from shown
above. For details, refer to the manual supplied with
your receiver.

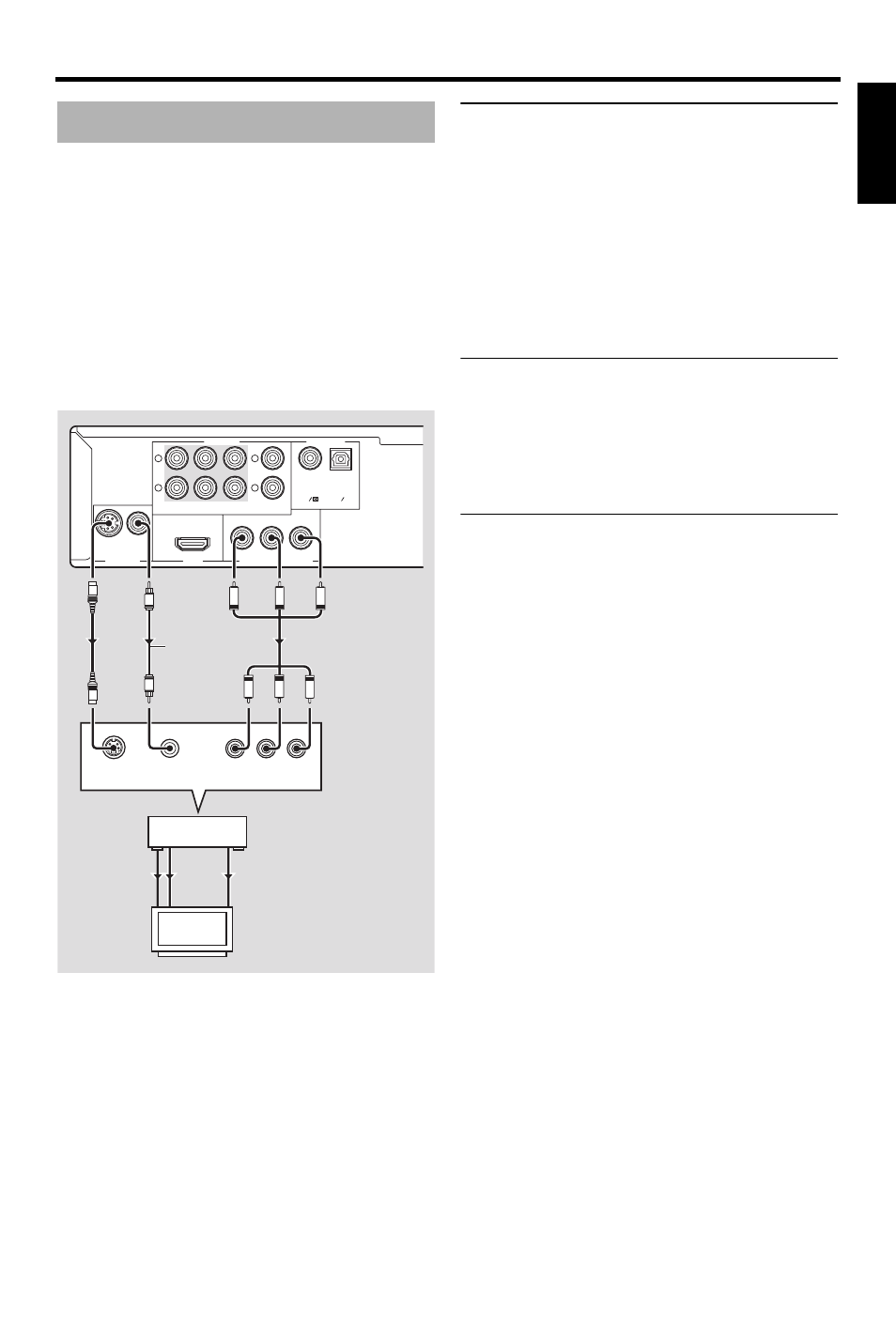

Video connections
S VIDEO VIDEO
VIDEO OUT HDMI
MIXED 2CH
OPTICAL COAXIAL
PCM DIGITAL DTS
AUDIO OUT DIGITAL OUT
FRONT SUB WOOFER SURROUND
6CH DISCRETE
P R P B Y
COMPONENT VIDEO OUT
CENTER
L
R
L
R
P R Y P B
P R Y P B
S
S
VIDEO
OUT
VIDEO
IN
S VIDEO
OUT COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN S VIDEO
IN
COMPONENT
VIDEO IN
S VIDEO
INPUT
VIDEO
INPUT
Y P B P R
V
V
AV receiver
TV
This unit
Video pin cable
