Connections

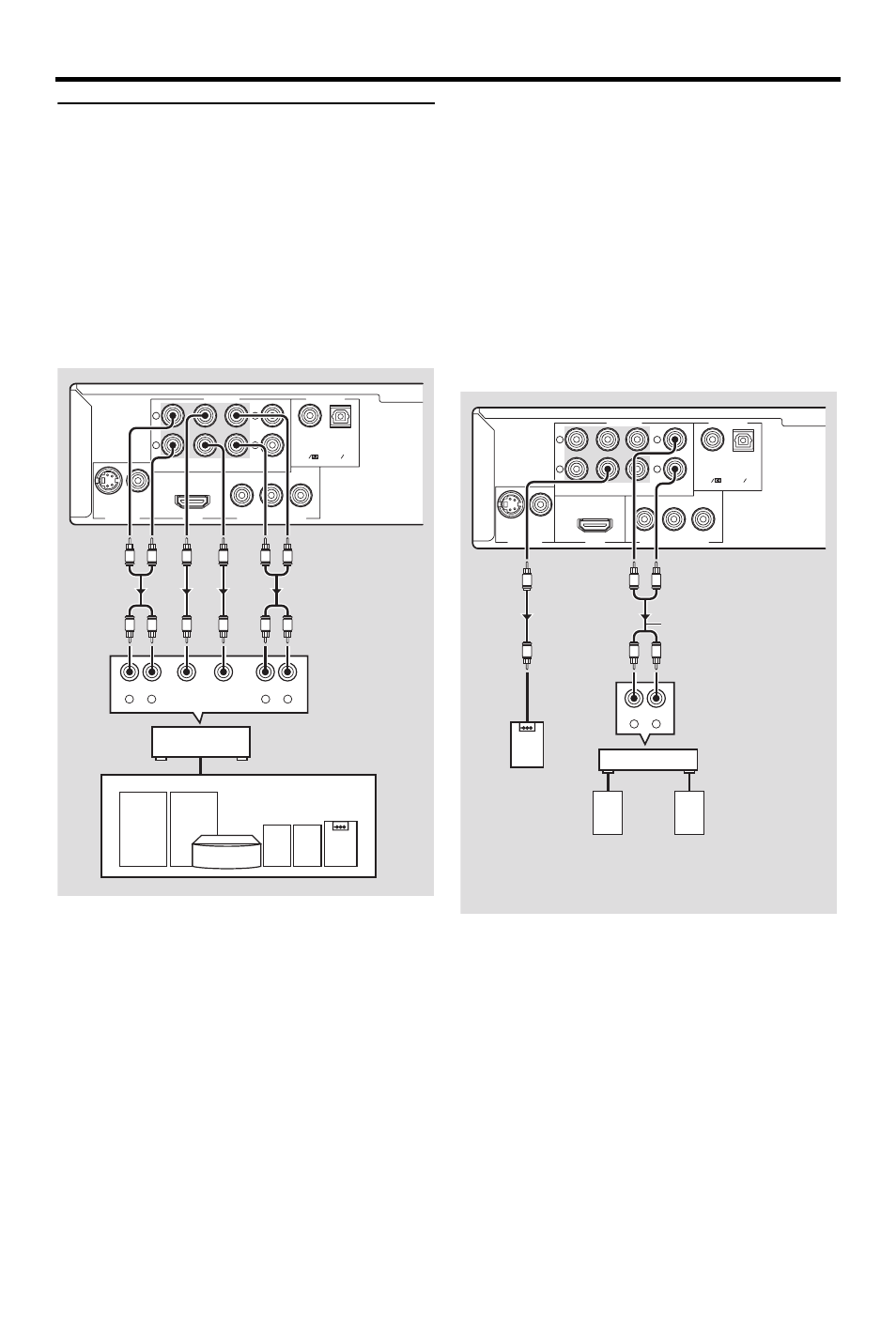

Analog connections
This unit has two types of analog output jacks.
■ 6-channel discrete jacks
If you want to reproduce multi-channel Super
Audio CD (SA-CD) and DVD-Audio, connect
AUDIO OUT (6CH DISCRETE) jacks of this
unit to the corresponding input jacks of your
AV receiver using commercially available
audio pin cables.
y
You can also enjoy Dolby Digital Surround and
DTS Surround formats if your AV receiver does not
support these formats.
In this case, set [ANALOG OUTPUT] to [MULTI-
CHANNEL] (see “Setting the analog output” on
page 31).
■ Mixed 2-channel jacks
Connect AUDIO OUT (MIXED 2CH) jacks
of this unit to the corresponding input jacks of
your audio component (such as a stereo
amplifier) using the supplied audio/video
cable. You can connect a subwoofer to the
SUBWOOFER jack.
Multi-channel audio signals are down mixed
to 2-channel audio signals. If you play back a
down mix prohibited DVD-Audio, only the
front L/R channel audio is output.
y
When you play back a down mix prohibited
DVD-Audio, “NO DOWN MIX” appears in the
front panel display, and the DOWN MIX indicator
goes out.
S VIDEO VIDEO
VIDEO OUT HDMI
MIXED 2CH
OPTICAL COAXIAL
PCM DIGITAL DTS
AUDIO OUT DIGITAL OUT
FRONT SUB WOOFER SURROUND
6CH DISCRETE
P R P B Y
COMPONENT VIDEO OUT
CENTER
L
R
L
R
R L
FRONT SURROUND CENTER SUBWOOFER
R L
L
L
R
R
L
L
R
R
This unit
AV reveiver
Speakers
S VIDEO VIDEO
VIDEO OUT HDMI
MIXED 2CH
OPTICAL COAXIAL
PCM DIGITAL DTS
AUDIO OUT DIGITAL OUT
FRONT SUB WOOFER SURROUND
6CH DISCRETE
P R P B Y
COMPONENT VIDEO OUT
CENTER
L
R
L
R
CD / DVD
L
L
R
R
R L
This unit
Subwoofer
Stereo
amplifier
Left
speaker
Right
speaker
Audio pin cable
