Installation/User Guide
Model # –WebShare
Part # – 030-300109 Rev C
Revision Date – 09/2000
 2000 Westell, Inc. Printed in the USA
030-300109C
11
S-236P-A
Connections are
located on the side
Power
Ready
Link
Activity

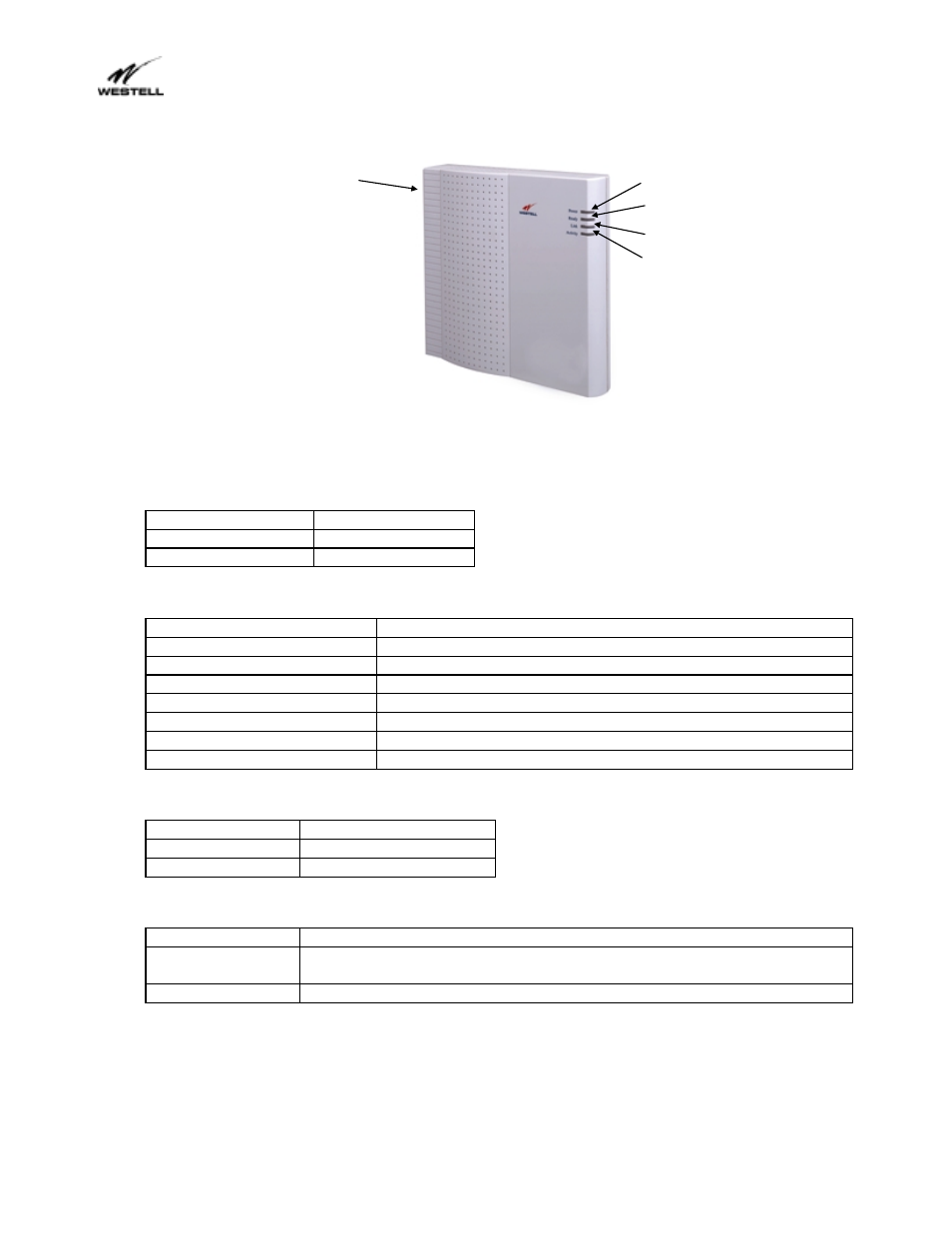

Figure 4. WebShare Proxy Router (Front)
Power
State Description
Solid Green Power ON
No Light No power
Ready
State Description
Slow Flashing Green Power ON and passed power-up diagnostics (1 flash/sec)
Moderate Flashing Green Power ON and attempting synchronization (2 flashes/sec)
Solid Green Power ON and synchronized with the ADSL line card
Solid Red Hardware power-up in progress
Blinking Red Unit failed power-up diagnostic
Alternating Red/Green Proxy Router diagnostic failed
No Light No power
Link
State Description
Solid Green Link established
No Light No 10Base-T link
Activity
State Description
Pulsing Yellow Data being transmitted. Pulses should match the reception or transmission of
Ethernet data.
No Light No data on Ethernet interface
