sPRING TuRN ChART
7’-0” 16
7’-3” 16-1/2
7’-6” 17
7’-9” 17-1/2
8’-0” 18
securing Drum Wraps
Tools: Step ladder
26
un-snap the drum wrap hinged latch and rotate down.
IMPORTANT: Pull THE COunTERBAlAnCE CABlE AWAY fROM THE HEADER TO ClEAR THE
lATCH, WHIlE SIMulTAnEOuSlY SlIDInG THE DRuM WRAP AGAInST THE lAST RIB unTIl THE
THREE CATCHES EnGAGE THE 3RD RIB.
Re-engage the hinge latch by rotating upward until a distinct snap is felt. Confirm the catch is
fully engaged by lightly tugging on it. Repeat for the other side.

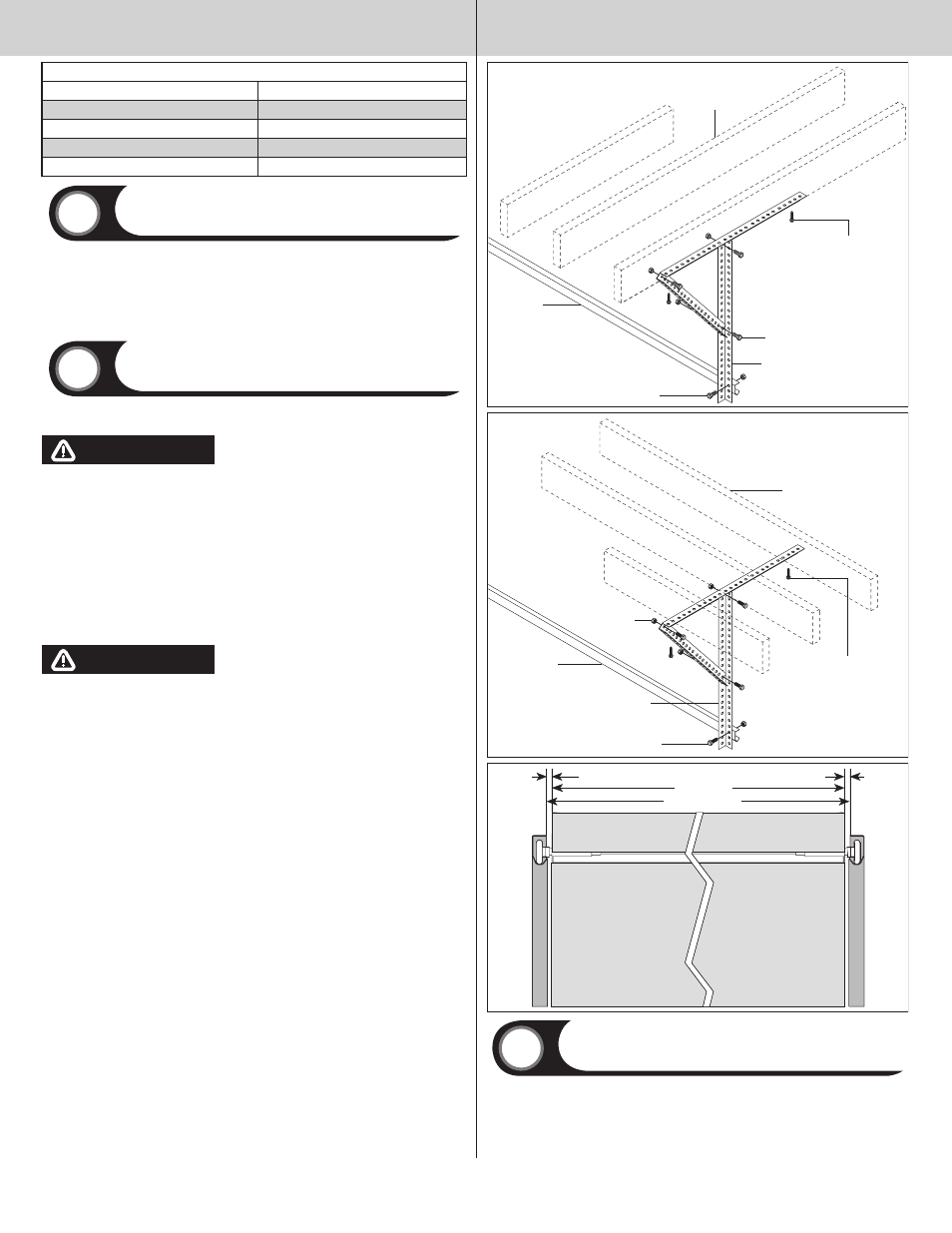

Rear support
Tools: Ratchet wrench, Socket: 1/2”, 5/8”, Wrench: 1/2”, 5/8”, (2) Vice
clamps, Tape measure, Level, Hammer, Step Ladder
27
Raise the door until the top section and half of the next section are in a horizontal position. Do
not raise door any further since rear of horizontal track is not yet supported.
WARNING WARNING
RAIsING DOOR fuRThER CAN REsuLT IN DOOR fALLING AND CAusE sEvERE
OR fATAL INjuRy.
Clamp a pair of vice clamps on the vertical tracks just above the second roller on one side, and
just below the second roller on the other side. This will prevent the door from raising or lowering
while installing the rear support.
using perforated angle (may not be supplied), (2) 5/16”-1- 5/8” hex head lag screws and (3)
5/16” bolts with nuts (may not be supplied), fabricate rear support for horizontal tracks. Attach
horizontal tracks to the rear supports with 5/16”-18 x 1 hex bolts and nuts (may not be sup-
plied). Horizontal tracks must be level and parallel with door within 3/4” to 7/8” maximum of
door edge.
NOTE: If an idrive® opener is installed, position horizontal tracks one hole above level when
securing it to the rear supports.
WARNING WARNING
kEEP hORIzONTAL TRACk PARALLEL AND WIThIN 3/4” TO 7/8” MAxIMuM Of
DOOR EDGE, OThERWIsE DOOR COuLD fALL, REsuLTING IN sEvERE OR fATAL
INjuRy.
IMPORTANT: DO nOT SuPPORT THE WEIGHT Of THE DOOR On AnY PART Of THE HORIzOn-
TAl TRACK HAnGER THAT CAnTIlEVERS 4” OR MORE BEYOnD A SOunD fRAMInG MEMBER.
NOTE: If rear supports are to be installed over drywall, use (2) 5/16” x 2” hex head lag screws
and make sure lag screws engage solid structural lumber.
NOTE: 26” angle must be attached to sound framing members and nails should not be used.
now, permanently attach the weather seal on both door jambs and header (temporarily attached
in Preparing the Opening, in the pre-installation section of this manual). Avoid pushing weather
seal too tightly against face of door.
5/16”-18 x 1-1/4”
Hex bolt must extend into the
track to serve as a roller stop
Perforated angle
Sound framing
members
Horizontal
track
(3) 5/16” Bolts and nuts
Perforated angle bolted
using (2) 5/16” x 1-5/8”
hex head lag screws to
ceiling member and
parallel to door
Perforated angle
Sound framing
members
Horizontal
track
(3) 5/16”
Bolts and nuts
Perforated angle bolted
using (2) 5/16” x 1-5/8”
hex head lag screws to
ceiling member and
parallel to door
5/16”-18 x 1-1/4”
Hex bolt must extend into the
track to serve as a roller stop
Horizontal tracks
Door edges
3/4” To 7/8” 3/4” To 7/8”
balancing Door
Tools: Ratchet wrench, Socket: 5/8”, 3” Socket extension, Wrench:
5/8”, (2) Vice clamps, Tape measure, Level, Step Ladder
28
NOTE: Windows will cause the top section to be significantly heavier than the remaining sec-
tions. Wayne-Dalton attempts to balance the door at the top and bottom. To prevent any sudden
door acceleration between the top and bottom, we recommend motor operating all doors with
windows. Doors with windows in the top section should not be manually operated.
Remove any vice clamps. lift the door and check its balance. Adjust spring(s) if door lifts by itself
(hard to pull down) or if door is difficult to lift (easy to pull down). Anytime spring adjustments are
made, ratchet pawl knob must be in the upper position. An unbalanced door can cause idrive®
7
