3. PREPARATION BEFORE STARTING WORK
Caution
The operating instructions and the safety regulations for the additional system
components used must be read before starting-up .
This spray gun must be used a part of an AirCoat-Electrostatic spraying system.
The control units VM 200 EN, VM 2000 EN or EPP 200 EN and other various
components are also needed (see Wagner-accesories).
The spray gun and paint supply system must be flushed out with a suitable cleaning
solvent before being used.
3.1 Preparation of paint
The viscosity of the paints is of great importance. The best results are obtained with
paints between 18 and 30 DIN sec. (measured in immersion flow cup DIN 4 mm). In
most cases, the application of paints of up to 50-60 DIN sec. for thick layers does not
cause problems.
3.2 Earthing
Perfect earthing is a prerequisite for optimum coating efficiency and safety.
The imperfect earthing of a workpiece will result in:
● Sparks between the object being sprayed and the suspension hook.
● Insufficient electrostatic effect (no wrap-around)
● Uneven coating thickness
● Back spraying to spray gun and sprayer
The prerequisites for perfect earthing and coating are:
● Clean workpiece suspension.
● Earthing of spraying cabin, conveyor system and suspension with 10mm 2 copper
cable to system earth, earthing strip or ring.
● Earthing of all conductive parts within the working area.
● The earthing resistance of the workpiece may not exceed 1 M
Ω.
GM 2000 EAC - EN

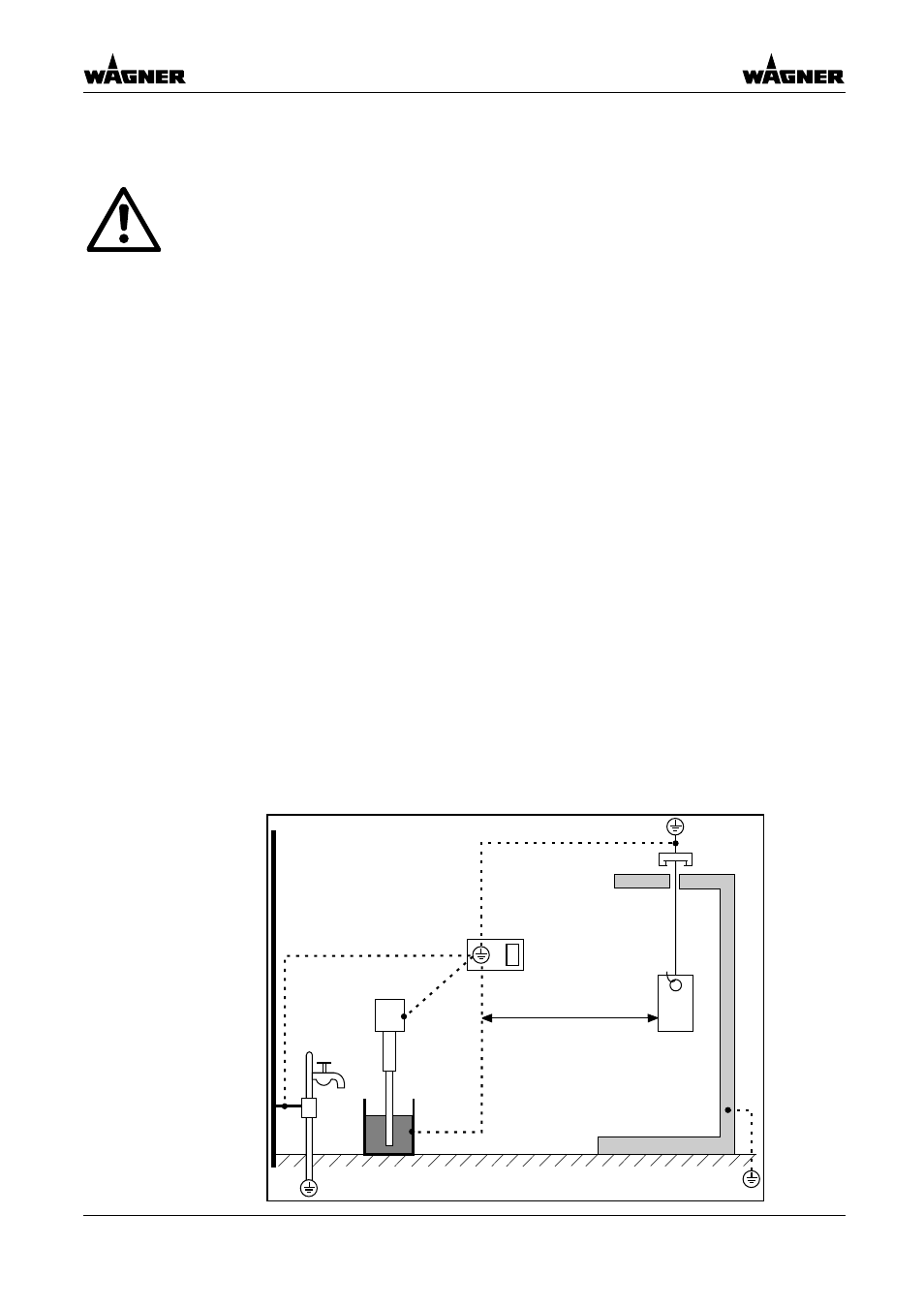

3.1
Pump
Spraying stand
Object to be
sprayed
conveyor
Control unit
R max < 1 M
Paint container
Floor, conductive
