P
HYSICAL
C
ONNECTIONS

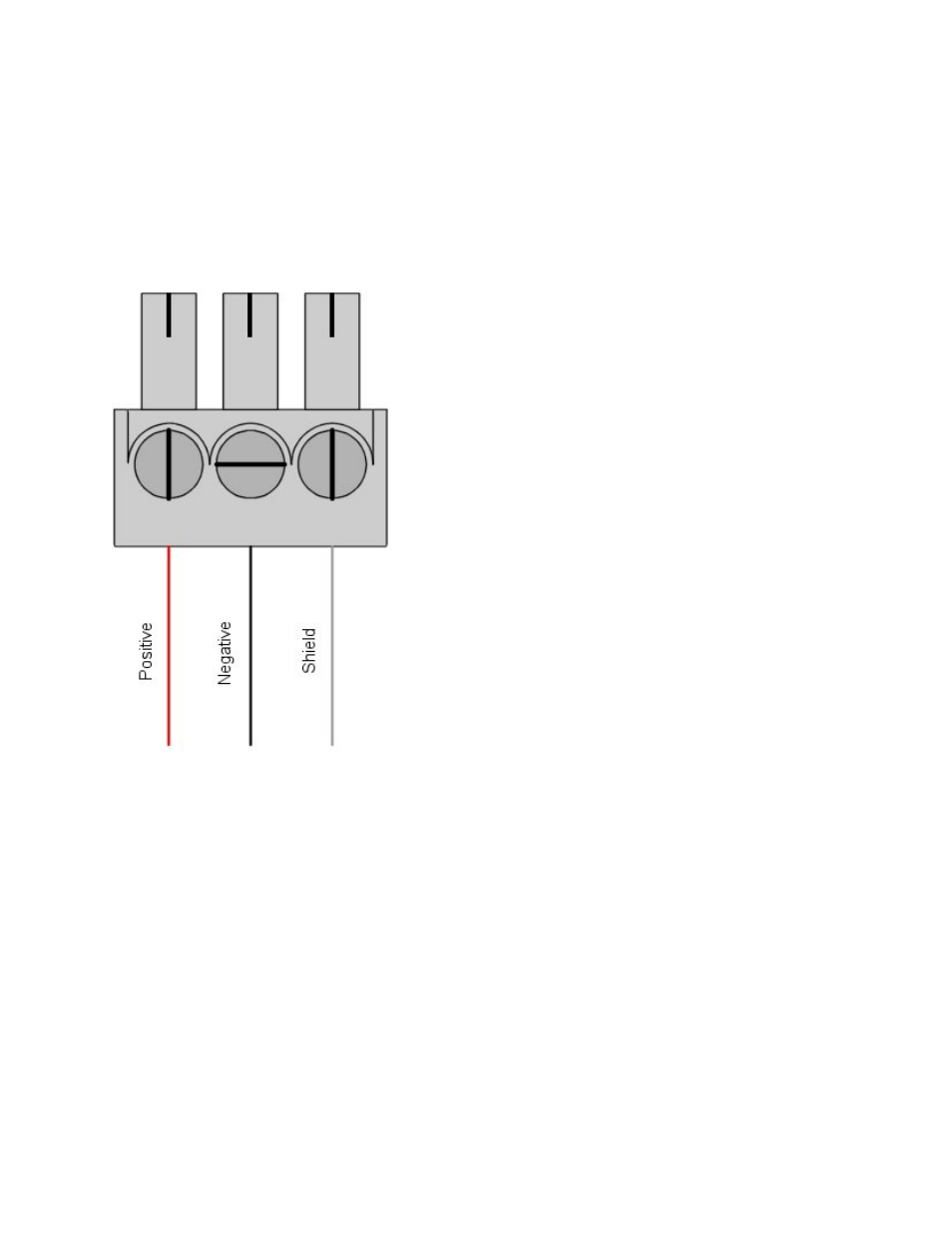

We use terminal blocks to make the audio connections to the printed circuit board. We use 3.5 mm pitch
plugs. Looking left to right, the conductors are positive, negative, shield (where shield is connected to
chassis ground of the Vortex device):
U
SING
W
IRED
M
ICROPHONES
Most wired microphones will have a male XLR connector on the end of its cable. As a result, you will need
to make a XLR to Phoenix converter cable. Connect the Positive conductor of the Vortex device to Pin 2 of
the XLR connector, the Negative conductor of the Vortex device to Pin 3 of the XLR connector, and the
Shield of the Vortex device to the Pin 1 of the XLR connector. Refer to Cable Drawing 1 in the Vortex Input
Wiring section of the Appendix.
13
