2 V ISIONEER P ATRIOT 480 S CANNER U SER ’ S G UIDE
T
HE
V
ISIONEER
P
ATRIOT
480 S
CANNER

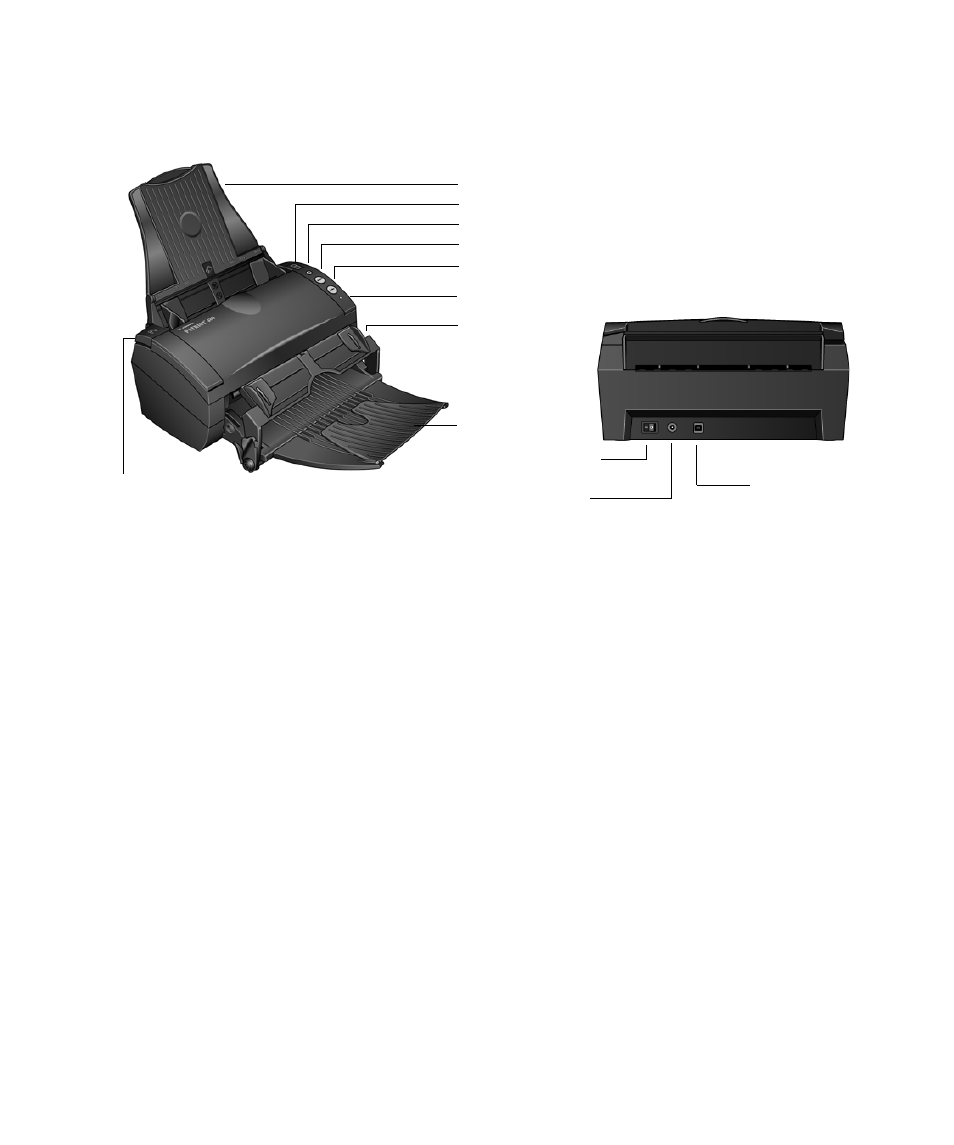

Input tray—Holds documents in the scanner, sides adjust to fit the
document width.
LED number—Shows the current scan setting for the Simplex and Duplex
OneTouch buttons.
Selector button—Press to select a new scan setting for the OneTouch
buttons.
Simplex button—Press to scan a one-sided document.
Duplex button—Press to scan a two-sided document.
Status light—Shows the scanner’s status. Refer to “Status Light
Troubleshooting Codes” on page 99 for additional details.
Front Feed tray—Place an item between the guides and press down to feed
items through the front of the scanner.
Output tray—Holds documents after being fed through the scanner.
ADF cover release—Opens the cover on the ADF.
Power switch—On/Off power switch.
Power jack—Connects the power cord to the scanner.
Universal Serial Bus (USB) port—Connects the scanner to the computer.
Input tray
Output tray
ADF cover release
Power switch
USB port
Power jack
Status light
LED number
Duplex button
Simplex button
Selector button
Front Feed Tray
