Calling Party Indication (7-SEG Display Type)

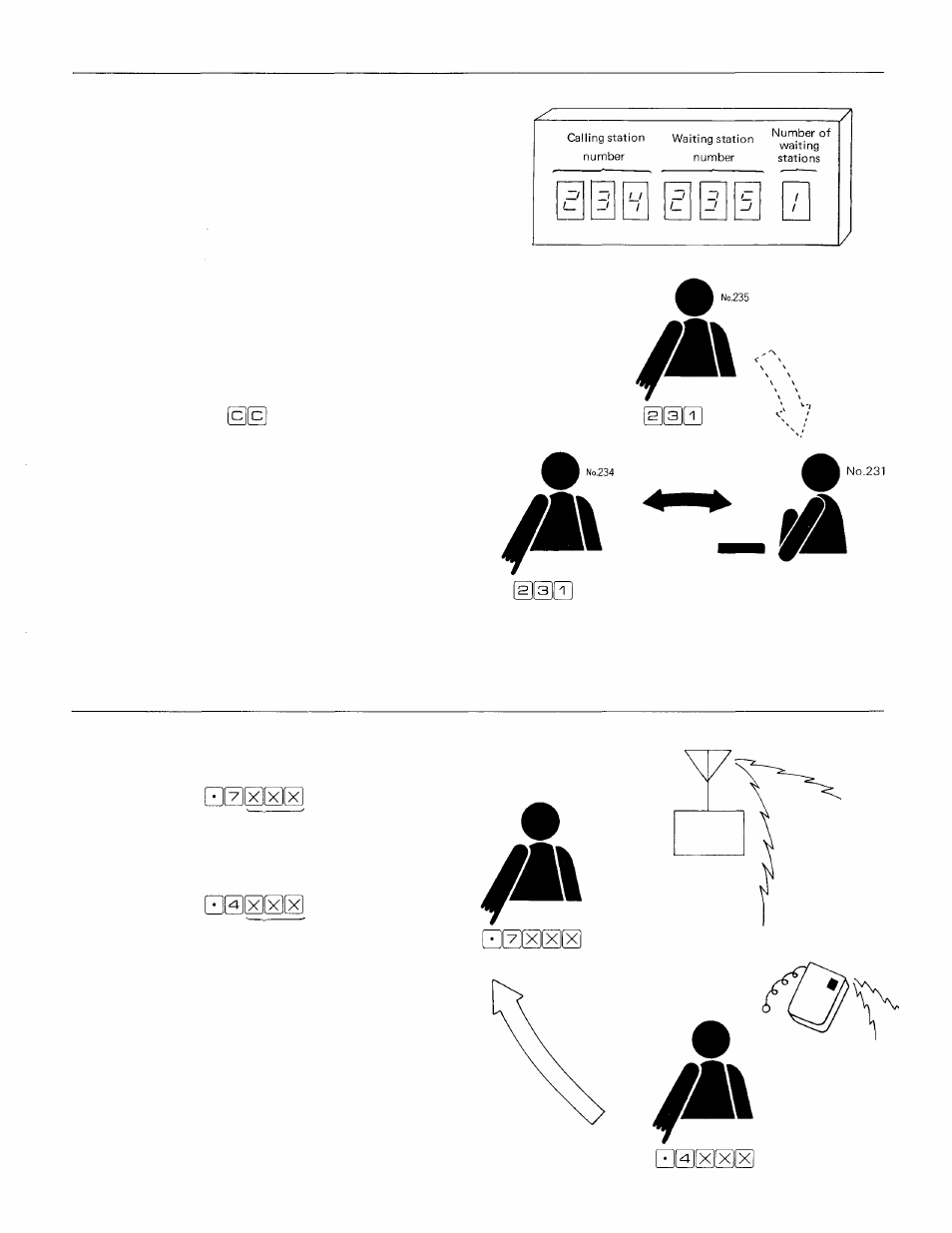

A numerical type calling party indication panel can be
provided for certain specified stations (32 stations from
No. 200 to No. 231).
1. The party receiving the call is indicated in the area for
the calling station number with 7 segment display.
2. When a call is made to the busy or the privacy station
(with the privacy switch on), the number of the calling
party is indicated in the area for the waiting station and
as a 1 in the number of waiting stations area. If there are
other stations waiting, the station numbers are stored but
not indicated. A maximum of 8 waiting stations can be
indicated. Even if a call is cancelled by a waiting station,
the indication is not cancelled.
3. When a call is placed to a station in the waiting station
mode, the next stored waiting station is indicated.
4. If a call is cancelled at the completion of a call, the
indication is turned off.
5. To cancel a waiting station number without calling, dial
to have the next station number indicated.
Note 1: If the number of waiting stations exceeds 8, the
indication for the station that has been waiting for
the longest period of time is cancelled and the
next station moves into that place.
Note 2: When 2-digit dialing is specified, the station num-
ber in also indicated as a 2-digit number.
Note 3: The indication panel must be used with the Data
Transmitting and Receiving Units. For further
details, please refer to the Installation Hand Book
for CPU-55 and Instructions for the Data Trans-
mitting and Receiving Units.
Pocket Pager
The system can be connected with usual type Pocket pager
using the interface with Make/break relay output.
1. Dial
(000~239, terminal No.)
and the pager is called.
2. When
000~239(personal terminal No.)
is dialed by the party called from the nearest master
station, it is possible to respond a call to the station.
Note 1: Once a receiver is called from one station and a
response is waited for, camp-on-busy will result
for other callers. But, if a response to the call is
not received within 2 minutes, the terminal can be
called from a new calling station.
Note 2: For further details, please refer to the Installation
Hand Book for CPU-55 and Instructions for the
Data Transmitting and Receiving Units.
Camp-on-busy
During a call
Pager transmitter
Pager call
Pager receiving call
Response
Response call
