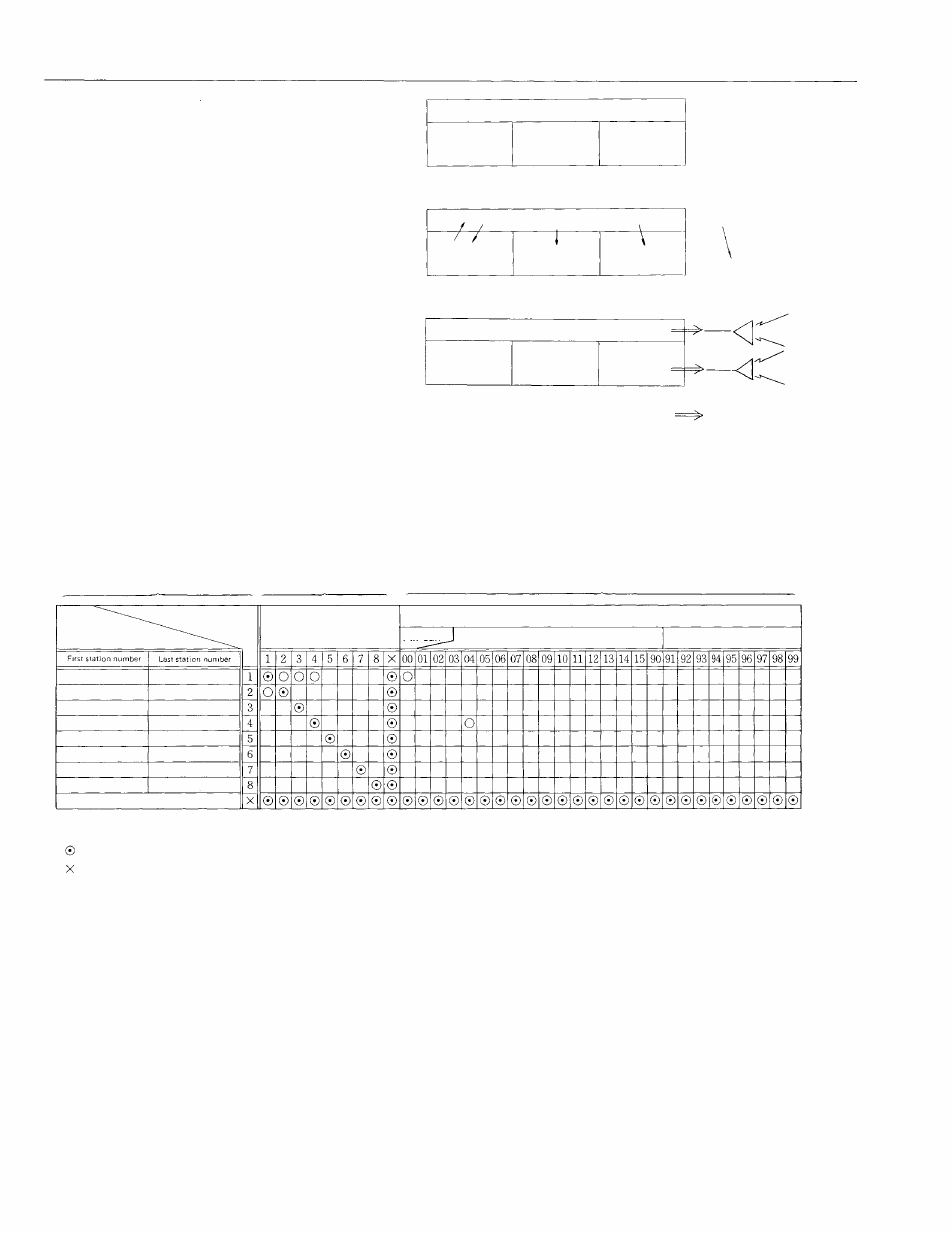

< Example >
Calling station
Station receiving
Group Blocking
Function (A) . . The system can be grouped or divided
into a maximum of 8 groups of stations
with sequencial station numbers. Stations
in the group cannot call another.
Function (B) . . The group can call and/or be called by
any other group(s) by programming.
Function (C) . . The paging zone number (all-call, indivi-
dual zone and combination) which each
group can call is programmable. (No dis-
tinction is made between external and
station paging.)
To use this function, station No. 200 programming of the
allocated station number, group, paging zone, etc., must
be set up in the exchange. For further details, please
refer to Installation Hand Book for EXES-5000 CPU-55.
Paging station Paging zone
Function registration (A) Function registration (B) Function registration (C)
Station for
each group
Group No. of calling
station
Group No. of station
receiving call
Paging zone of station receiving call
All-call Zone No. Combination zone No.
Station not in group
This chart shows the possibilities for one sample set
of conditions.
indicates that registration is not necessary.
indicates that the station is not within the group.
< Example >
Group 1 No.201~20 9
Group 2
No.210~21 9
Group 3
No.220~24 9
Group 4
No.250~27 9
Group 1
Group 2 Group 3 Group 4
Group 1
Group 2 Group 3 Group 4
All-call paging
Zone 4 paging
2 0 1
2 1 0
2 2 0
2 5 0
2 0 9
2 1 9
2 4 9
2 7 9
— 25 —
