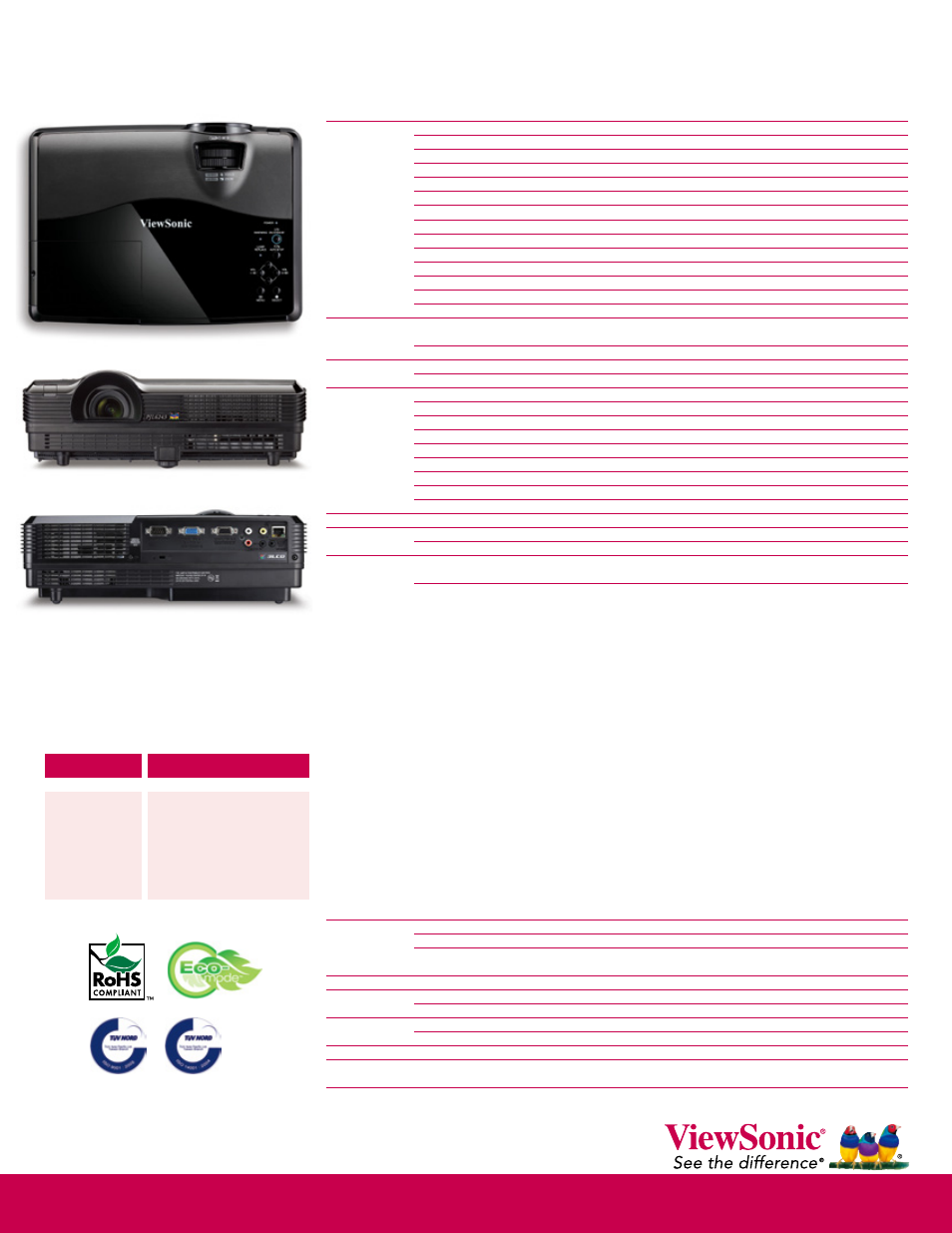

DISPLAY

Type

0.63" (x3) Poly-Si TFT

Resolution

XGA 1024x768 (Native) / UXGA 1600×1200 (compressed)

Color Depth

24 bits, 16.7 million color (8+8+8)

Lens

1.2× Manual optical zoom / Manual focus

Keystone

Vertical digital keystone correction: +/– 30 degrees

Size

40"–300" / 1.0m–7.6m

Throw Distance

3.6 ft. – 28.5 ft. / 1.1m – 8.7m

Throw Ratio

1.43 – 1.72:1

Lamp

215 watt

Lamp Life (Normal / Eco-mode) 4000 / 6000

†

hours

Brightness

3000 Lumens

Contrast Ratio

2000:1 (typ) / 4200:1 (max with Active IRIS)

Aspect Ratio

4:3 (native)

Color Gamut

114% NTSC 1931 CIE

INPUT SIGNAL

Computer and Video

NTSC M (3.58MHz), 4.43MHz, PAL (B, D, G, H, I, M, N),

SECAM, SD (480i/576i), ED (480p/576p), HD (720p/1080i)

Frequency

Fh: 15–100KHz, Fv: 50–100Hz

COMPATIBILITY

Analog: VGA to UXGA

Mac

Analog: Up to 1152x870

CONNECTOR

RGB Input

15-pin mini D-sub (X2)

RGB Output

Shared with RGB 2

Component

Shared with RGB 1

S-Video

Shared with RGB 1

Composite Input

RCA jack

Audio Input

3.5mm mini jack, RCA (L/R)

Audio Output

3.5mm mini jack

Control

RS-232 (DB-9)

Network RJ45

AUDIO

Speaker

10W (x1)

POWER

Voltage

100~240VAC (Auto Switching), 50/60Hz (universal)

Consumption

286W (typ) / <1W (stand-by mode)

CONTROLS

Basic

ON/Stand-By, Auto Setup, Arrow Key Up, Arrow Key Down, Arrow

Key Left/Volume Down, Arrow Key Right/Volume Up, Menu, Select

OSD

Input Menu: Computer 1, Computer 2, Video

PC Adjust Menu: Auto PC adj, Fine sync, Total dots, Horizontal,

Vertical, Current mode, Clamp, Display area H, Display area V,

Reset, Mode free, Store

Image Select (PC): Dynamic, Standard, Real, Blackboard (Green),

Colorboard, Image1~4

Image Select (AV): Dynamic, Standard, Cinema, Blackboard

(Green), Colorboard, Image1~4

Image Adjust: Contrast, Brightness, Color*, Tint*, Color Temp, Red,

Green, Blue, Sharpness, Gamma, Noise reduction*, Progressive*,

Reset, Store (*Only available in video signal)

Screen: Normal, True*, Wide, Full*, Custom, Custom adj,

Digital Zoom +/-* (*Not available in video signal)

Sound: Volume, Mute

Setting: Language, Menu position, Auto setup (Input search, Auto PC

adj, Auto keystone), Keystone, Background, Display, Logo (Logo

select, Capture, Logo PIN code lock, Logo PIN code change), Ceiling,

Rear, Terminal (Computer 2, Monitor out), Power management, Direct on,

Standby mode (ECO, Network), P-timer, Closed Caption, Lamp control,

Remote Control, Security (Key lock, PIN code lock, PIN code change),

Fan, Fan control, Video delay control, Lamp counter, Filter counter,

Warning log, Factory default

Network: LAN mode select, Network setting, Network PIN code,

Network information, Network factory default

OPERATING

Temperature

41ºF–95ºF (5ºC–35ºC)

CONDITIONS

Humidity

20%–80% (non-condensing)

Altitude

0 to 6,000 ft (1,800m), operational up to 10,000 ft (3048m)

at reduced reliability and performance

NOISE LEVEL

Normal / Eco-mode

34dB / 29dB

DIMENSIONS

Physical

13.4 Ч 4.6 Ч 9.9 (in) / 341 Ч 117 Ч 251 (mm)

(W x H x D)

Packaging

16.5 Ч 8.3 Ч 15.7 (in) / 418 Ч 210 Ч 398 (mm)

WEIGHT

Net

6.4 lb. (2.9 kg)

Gross

11.1 lb. (5.0 kg)

REGULATIONS

UL/cUL, FCC B, C-Tick, CCC, CE, WEEE, RoHS, ErP

PACKAGE CONTENTS

Projector, power cable, RGB cable, remote control with batteries,

lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide)

WARRANTY

3-year limited warranty on parts, 1-year limited warranty on lamp,

1st year FREE Express Exchange

service.

Sales: (888) 881-8781 . [email protected] . ViewSonic.com

†Running Eco-mode exclusively can extend lamp life. See ViewSonic.com for full Express Exchange details. Specifications subject to change without

notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated

Projection Distance

For more product information, visit us on the web at ViewSonic.com

PJL6243

B R I G H T P E R F O R M A N C E P R O J E C TO R W I T H 3 L C D T E C H N O L O G Y

ViewSonic Corporation’s QMS & EMS have been

registered to ISO 9001 & ISO 14001, respectively,

by TUV NORD.

Feet

3.6
6.5
8.2

11.5
16.4
23.0
26.2
28.5

Meters

1.1
2.0
2.5
3.5
5.0
7.0
8.0
8.7

Inches

31.5–37.8
57.0–68.9
72.1–85.8

100.0–120.5
143.0–172.0
200.4–241.0
228.7–275.6
248.8–299.2

Meters

0.8-0.96

1.45–1.75
1.81–2.18
2.54–3.06
3.63–4.37
5.09–6.12

5.81–7.0
6.32–7.6

Optional Accessories
> Replacement Lamp ................................RLC-065
> Universal Ceiling Mount Kit .................WMK-005
> Wireless G Presentation Gateway ...... WPG-360
> Extended Express Exchange

.... PRJ-EE-08-03

4:3 Screen Size

(Diagonal)
