Projection Distance
For more product information, visit us on the web at ViewSonic.com

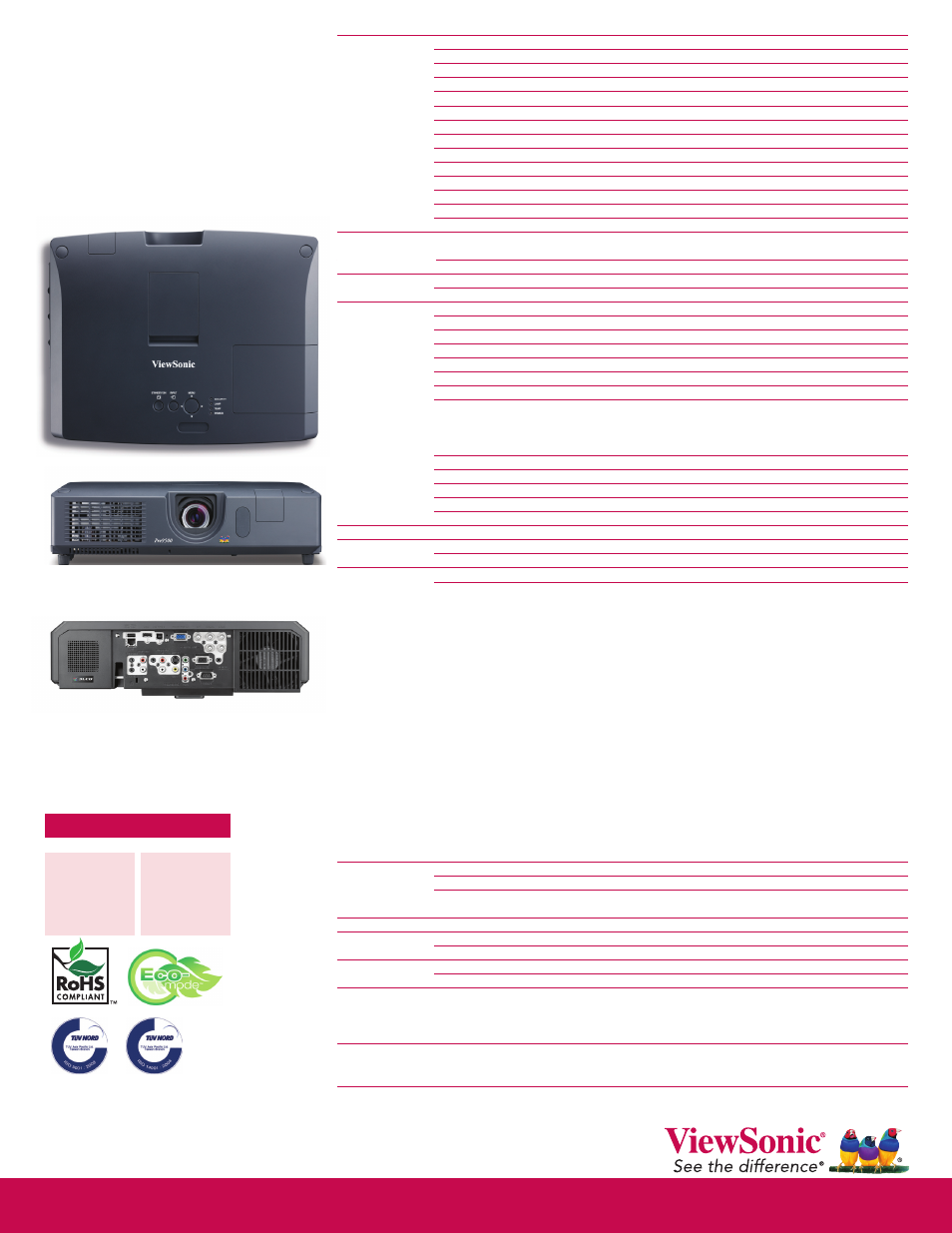

Pro9500
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
Feet
2.95
4.9
6.5
13.1
16.4
26.2
M
0.9
1.5
2
4
5
8
Inches
17.7–29.5
29.5–49
39–67
78.7–130
98.4–165
157.5–263.8
M
0.45–0.75
0.75–1.25
1.0–1.7
2–3.3
2.5–4.2
4–6.7
Optional Accessories
> Replacement Lamp .................................. RLC-063
> Universal Ceiling Mount Kit ..................WMK-005
> Wireless Presentation Gateway .............WPG-360
> Extended Express Exchange
®
........PRJ-EE-10-03
4:3 Screen Size
DISPLAY
Type
0.63" (x3) 3LCD Poly-Si TFT with Micro Lens
Resolution
XGA 1024x768 (Native) / UXGA 1600×1200 (compressed)
Color Depth
24 bits, 16.7 million colors (8+8+8)
Lens
1.7× Manual optical zoom / Manual focus
Lens Shift
Vertical 10:0-4:1 at Horizon 1:1 / Horizon 11:9-9:11 at Vertical 10:0-4:1
Keystone
Vertical digital keystone correction: +/– 30 degrees
Projection Size
30"–300" / 0.8m–7.6m diagonal
Throw Distance
2.95ft-29.9ft / 0.9m-9.1m
Throw Ratio
1.5-2.5:1
Lamp
245 watt
Lamp Life
3000 / 5000* hours (Normal / Eco-mode)
Brightness
5000 Lumens
Contrast Ratio
1800:1 (typ) 3500:1 (max)
Aspect Ratio
4:3 (native)
INPUT SIGNAL
Computer & Video NTSC M (3.58MHz), 4.43MHz, PAL (B, D, G, H, I, M, N),
SECAM, SD (480i/576i), ED (480p/576p), HD (720p/1080i/1080p)
Frequency
Fh: 31–106KHz, Fv: 56–120Hz
COMPATIBILITY
PC
Analog: VGA to UXGA
Mac
®
Analog: Up to WSXGA+
CONNECTOR
RGB Input
15-pin mini D-sub
RGB Output
15-pin mini D-sub
RGB-BNC
BNC-5 (x 1 set)
Digital Input
HDMI 1.3
Component
RCA (x3)
Composite Input
RCA jack
S-Video Input
4-pin mini-Din
USB
Type A: for PC-less slide show presentation - support JPEG,
BMP, TIFF, PNG, GIF from USB flash drive.
Type B: for direct presentation from PC (not Mac compatible),
Mouse Control
Audio Input
3.5mm mini jack (x2), RCA (L/R) x1 Pair
Audio Output
RCA (L/R) x1 Pair
Mic In
3.5mm mini jack (x1)
Control
RS-232 (DB-9), 3.5mm mini jack (wired remote)
Network RJ45
AUDIO
Speaker
8W (x2)
POWER
Voltage
100~240 VAC (Auto Switching), 50/60Hz (universal)
Consumption
420W (typ) / <0.5W (stand-by mode)
CONTROLS
Basic
STANDBY/ON, INPUT, MENU
OSD
PICTURE Menu: Brightness, Contrast, Gamma, Color Temp, Color, Tint, Sharpness,
Active IRIS, My Memory
IMAGE Menu: Aspect, Over Scan, V position, H position, H Phase, H size,
Auto Adjust Execute
INPUT Menu: Progressive, Video NR, Color Space, Component, Video Format,
HDMI Format, HDMI Range, Computer IN, Frame Lock, Resolution
SETUP Menu: Auto Keystone, Keystone H/V, Perfect Fit, Auto ECO Mode, ECO Mode,
Mirror, Standby mode, Monitor out
AUDIO Menu: Volume, Speaker, Audio Source, HDMI Audio, MIC Level, MIC Volume
SCREEN Menu: Language, Menu Position, Blank, Start up, Myscreen, Myscreen Lock,
Message, Source Name, Template, CC
OPTION Menu: Auto Search, Auto Keystone, Direct Power ON, Auto Power OFF,
USB Type B, Lamp Time, Filter Time, My Button, My Source, Service (Fan Speed, Auto
Adjust, Ghost, Filter Message, Key Lock, Remote FREQ, Communication,
Information, Factory Reset)
NETWORK Menu: Setup, Projector Name, My Image, AMX D.D,
Presentation, Information, Service
SECURITY Menu: Security password change, Myscreen password, PIN Lock, Transition
Detector, My Text Password, My Text Display, My Text Writing, Security Indicator, Stack Lock
OPERATING
Temperature
41ºF–95ºF (5ºC–35ºC)
CONDITIONS
Humidity
10%–85% (non-condensing)
Altitude
0 to 6,000 ft (1,800m), operational up to 10,000 ft (3048m)
at reduced reliability and performance
NOISE LEVEL
Normal / Eco-mode 36dB / 29dB
DIMENSIONS
Physical
15.8 Ч 4 Ч 12.5 (in) / 401 Ч 103 Ч 318 (mm)
(W x H x D)
Packaging
22 Ч 7.7 Ч 16.5 (in) / 560 Ч 197 Ч 420 (mm)
WEIGHT
Net
10.4 lb. (4.7 kg)
Gross
17.8 lb. (8.1 kg)
REGULATIONS
UL60950-1/C-UL, FCC part 15 Class B, CE approval:
EN61000-3-2, EN61000-3-3, EN55022, EN55024 (EMC
directive), EN60950-1 (low voltage directive); WEEE, RoHS
C-Tick (Australia/New Zealand), NOM, ErP
PACKAGE CONTENTS
ViewSonic Projector, power cable, RGB cable,
remote control with batteries, Lens Cap, Quick Start Guide,
ViewSonic Wizard CD (with User Guide)
WARRANTY
3-year limited warranty on parts, 1-year limited warranty
on lamp, 1st year Express Exchange
®
service.
HIGH BRIGHTNESS
PERFORMANCE PROJECTOR
WITH 3LCD TECHNOLOGY
