Vision Fitness Fitness Cycle E3100/3200 - Manual (Page 9)

E3200
Final Assembly
NOTE: Assembly Steps 10 and 11 refer to Models
E3200/E3200HRC only.
Step 10
••

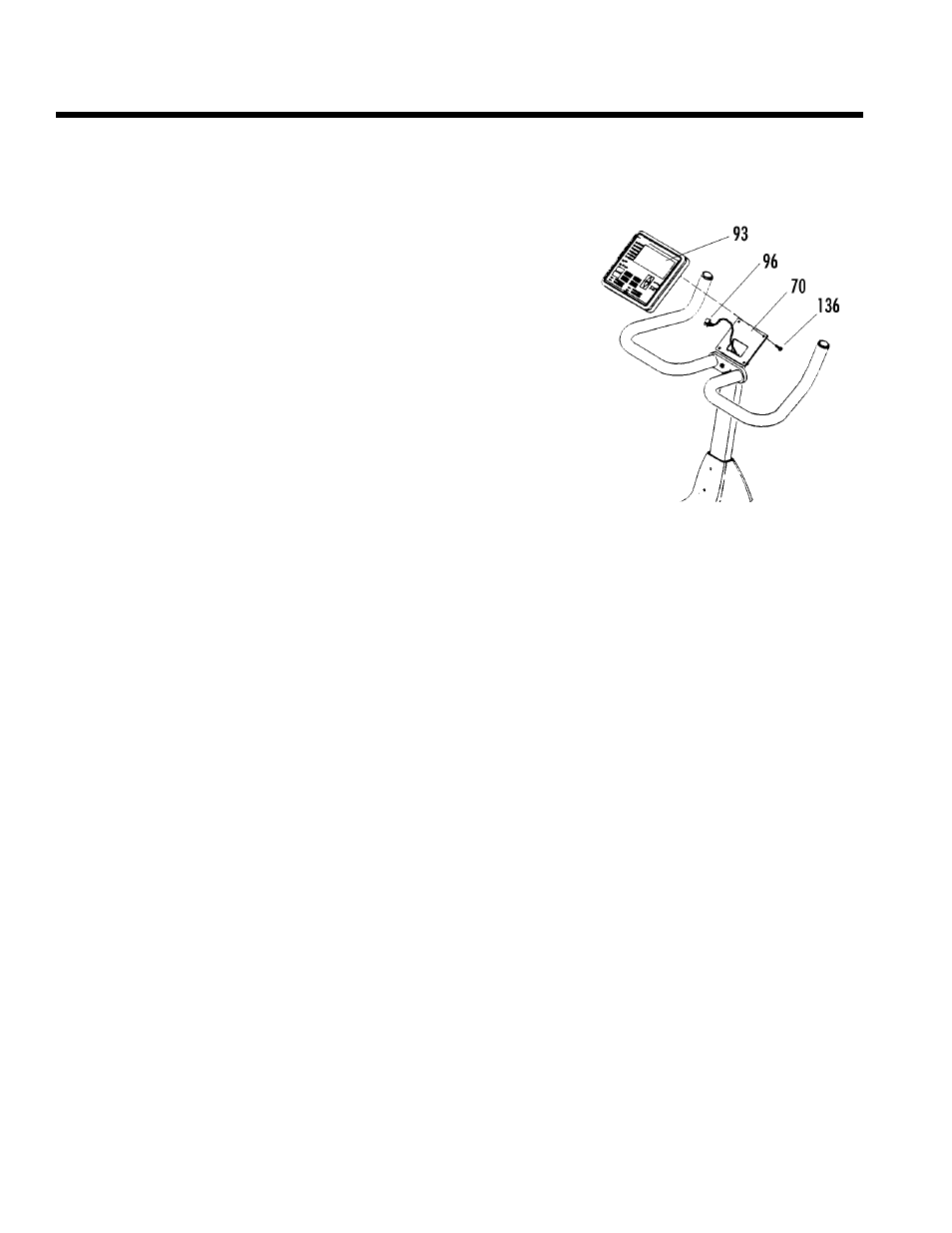

Console - Models E3200/E3200HRC only
1: Plug the Console Cable (96) into the Console (93).
NOTE: These connections are slotted and will only fit
properly one way. DO NOT FORCE the connection. Make
sure you DO NOT PINCH the Console Cable between the
Console and the Console Mast.
2: Mount the Console (93) to the Console Mast (70) using the
four Console Attachment Bolts (136). Make sure you DO
NOT PINCH the Console Cable (96) between the Console
(93) and the Console Mast (70).
3: Plug the Power Supply Cord into the receptacle located at
the base of the Fitness Cycle below teh Seat Rail. Plug the
Power Supply into an electrical outlet and begin testing
procedures.
Step 11 •• Operation Test
Models E3200/E3200HRC only.
Run this simple test prior to using.
1: Choose INTERVALS program, Level 8.
2: Choose TIME of “00:00” and press START.
3: Your machine will now operate indefinitely. After several
hours of operation, check for proper functioning of:
A: Resistance Change-change load one level at a time, using
the up and down arrows. Listen for notor noise (“whir”)
following each change in load, or pedal to feel load
change.
B: Check for display in RPMs while pedaling.
C: Check that all LEDs will light.
