E3100
Final Assembly
NOTE: Assembly Steps 7, 8 and 9 refer to Model E3100 only.
For Models E3200/E3200HRC proceed to Step 10 for Console
installation.

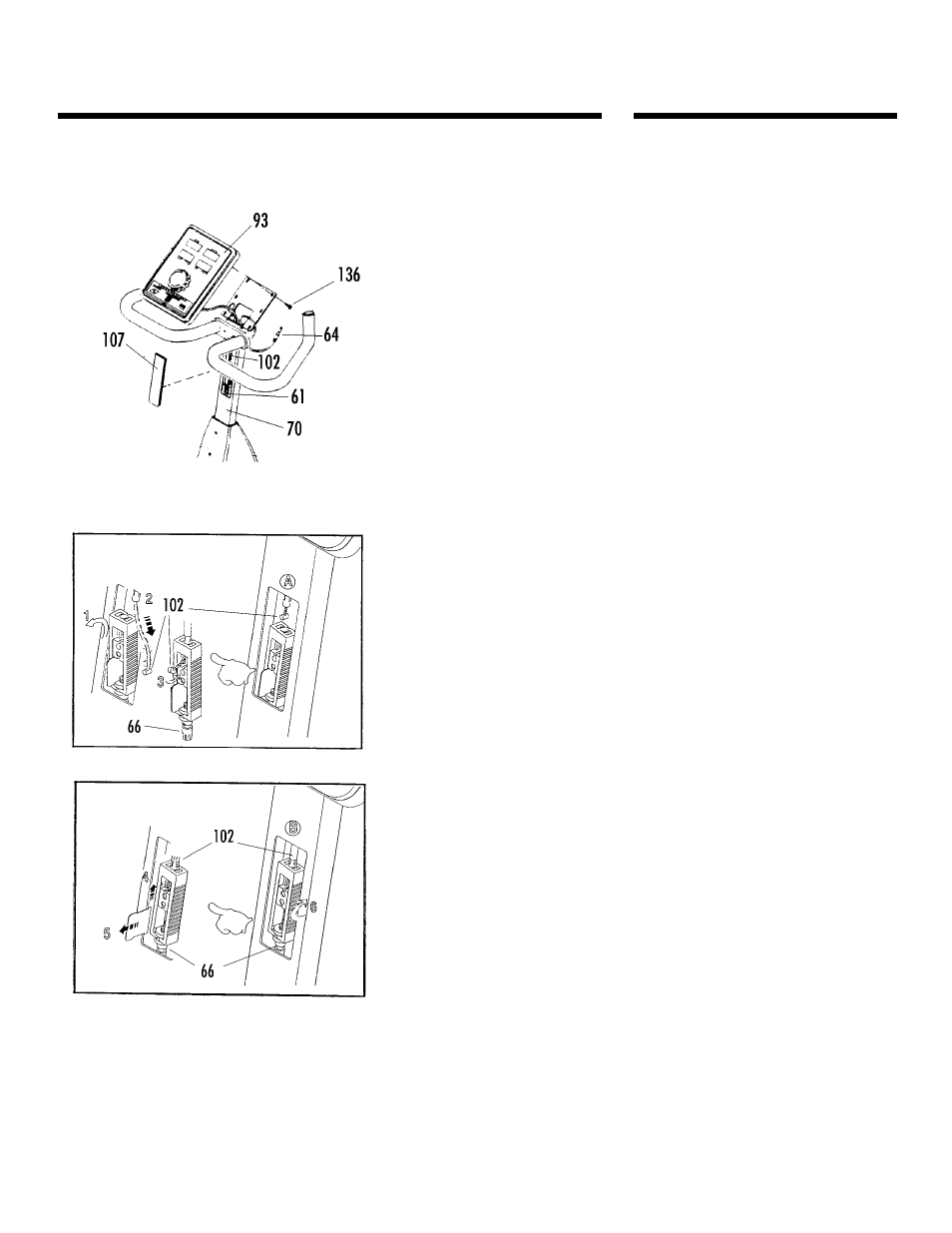

Step 7 • Console
- Model E3100 only
1: Insert Upper Magnet Shift Cable (102) into the top of the
Console mast (70).
2: Mount the Console (93) to the Console Mast (70) using the
six Console Attachment Bolts (136). Make sure you DO NOT
PINCH the Upper Magnet Shift Cable (102) and RPM Sensor
Wire (64) between the Console (93) and Console Mast (70).
3: Plug the RPM Sensor Wire (64) into the receptacle located on
the back of the Console (93). Make sure the RPM Sensor Wire
fits in the slot cut in the left side of the Console Mast (70).
Step 8 • Cable Connection - Model E3100 only
1: Turn the Tension Knob to position 8. Reach inside the opening
of the Console Mast (70) and connect the Upper Magnet Shift
Cable (102) to the rectangular red cable-slide on the end of
the Lower Magnet Shift Cable (66), as shown in the
accompanying illustrations.
2: While holding the metal separating tab (5), turn the Tension
Knob to Level 1 and then pull the tab out and discard.
3: Press the Console Mast Cover (107) into the opening of the
Console Mast (70).
Step 9 • Operation Test
- Model E3100 only
Run this simple test prior to using.
1: Choose Intervals program, Level 8.
2: Choose Time of “00:00”, and press Start.
3: Your machine will now operate indefinitely. After several hours
of operation, check for proper functioning of:
A: Resistance Change -- change load one level at a time
using the dial knob on console. Pedal to feel for load
change.
B: Check for display in RPMs while pedaling.
C: Check that all LCDs are working.
