E3100/3200

Assembly

NOTE: During assembly, it is recommended that all bolt threads

are greased to ensure proper tightening and prevent seizing due
to corrosion.

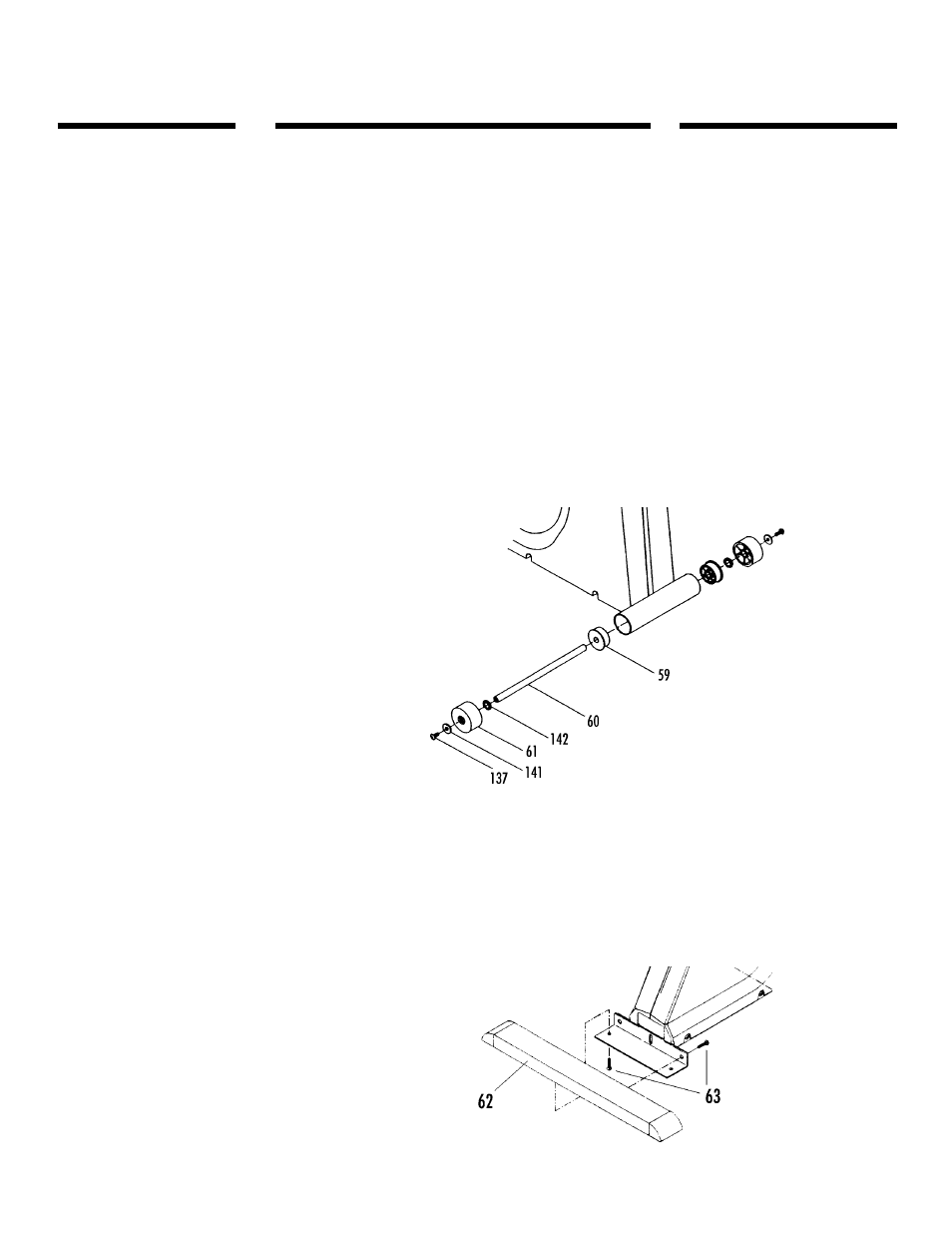

Step 1 • Front Wheel Assembly

1: Slide the Front Foot Axle (60) through the Front Foot Nylon

Sleeves (59).

2: Place the Inside Wheel Washers (142) onto the Front Foot Wheel

Axle (60).

3: Slip the Front Transport Wheels (61) onto the Front Foot Wheel Axle

and secure them with the Outside Wheel Washers (141) and the

Wheel Fixing Allen Bolts (137).

Step 2 • Rear Foot

1: Secure the Rear Foot Assembly (62) to the frame using the four

Rear Foot Attachment Allen Bolts (63).
