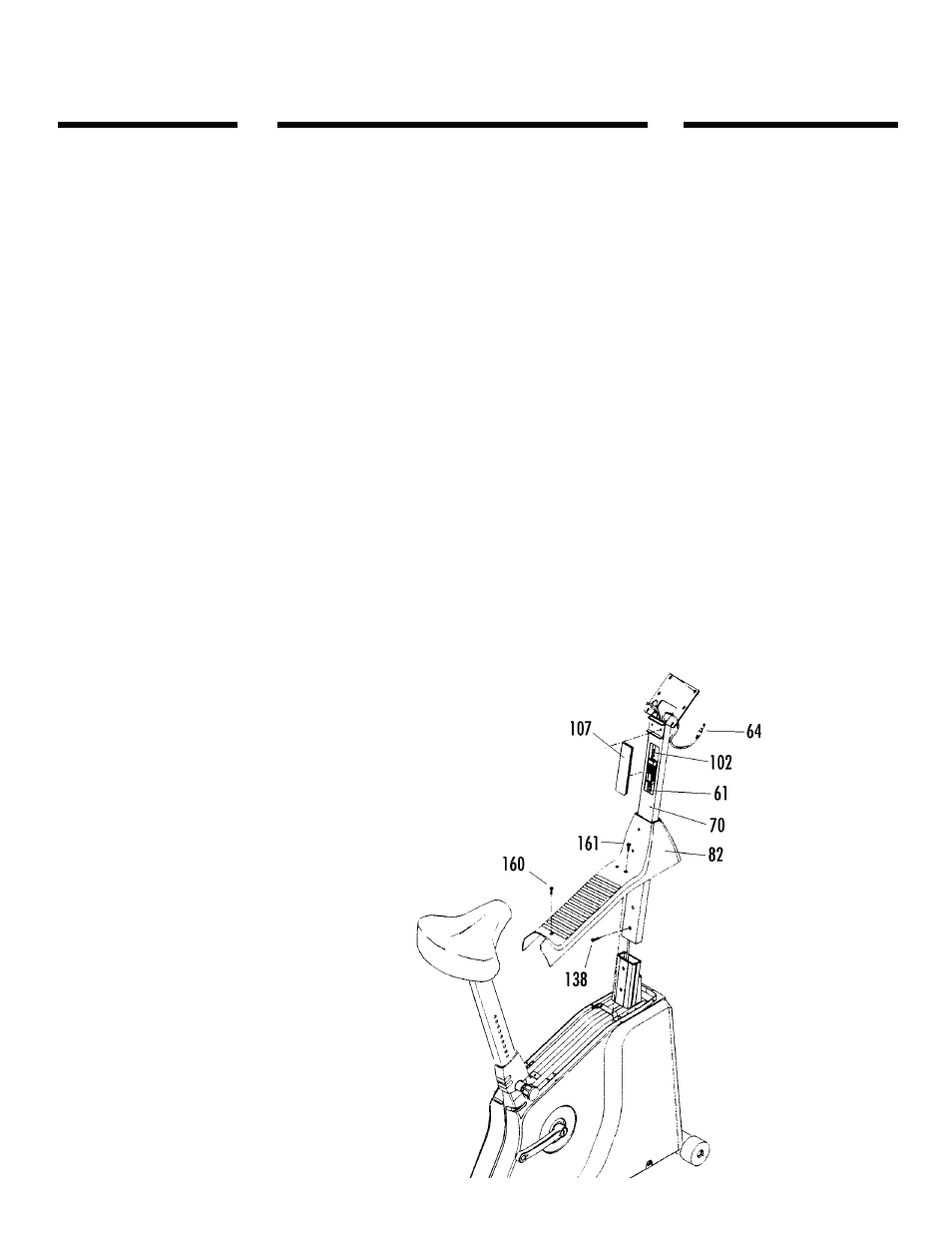

Step 4 • Console Mast and Top Cap
1: Remove the Top Cap Screws (160 and 161) that hold the Top Cap (82)
to the Frame. Remove the Top Cap.
NOTE: The two Phillips head bolts in the portion of the Top Cap
facing the rider are for mounting the waterbottle cage. Sliding the
Top Cap on or off with the waterbottle cage bolts fully threaded in can
scratch the paint on the Console Mast.
2: Slide the Top Cap (82) over the bottom of the Console Mast (70). The
VISION FITNESS decal on the Console Mast should be facing forward,
away from the rider.
3: Locate the Console Cable (64) that is folded into the Frame. Attach the
bottom end of the wire in the Console Mast to this Console Cable. You
will use this wire to pull the cable through the Console Mast.
4: Rest the Top Cap back into place. Holding the Console Mast above the
frame, pull the Console Cable (64) through the Console Mast while
simultaneously sliding the Console Mast into the Frame.
5: Lift the Top Cap again and install the two Console Mast Attachment
Bolts (138) and tighten.
6: Slide the Top Cap back into place. Make sure that the back end of the
Top Cap is nested fully into the Seat Cap groove. Secure the Top Cap
by threading two Short Top Cap screws (161) back into the front holes
and a single Long Top Cap Screw (160) into the rear hole.
