Proper installation/ ducting is
extremely important to ensure
maximum performance. Use a qualified
and trained installer.
DUCTING
• 460 CFM interior (blower
included)
• Check with a qualified and
trained installer for local
codes and makeup air
requirements, if any.
• Max. duct run length—50’
(152.4 m)
o Duct run length is for
general reference only;
for longer duct runs,
increase duct size and
contact a qualified and
trained installer.
o Straight runs and
gradual turns are best; for
example, each 90° elbow
is equivalent to 5’ – 10’
(1.52 – 3.05 cm) of
straight run.
• 7” round duct
o Never use flexible duct; it
creates back pressure/air
turbulence and greatly
reduces performance.
GAS
Not applicable
ELECTRICAL
• Hardwire direct with two-wire
with ground
• 120 VAC/60 Hz
• Max. amp usage—5.6
PLUMBING
Not applicable

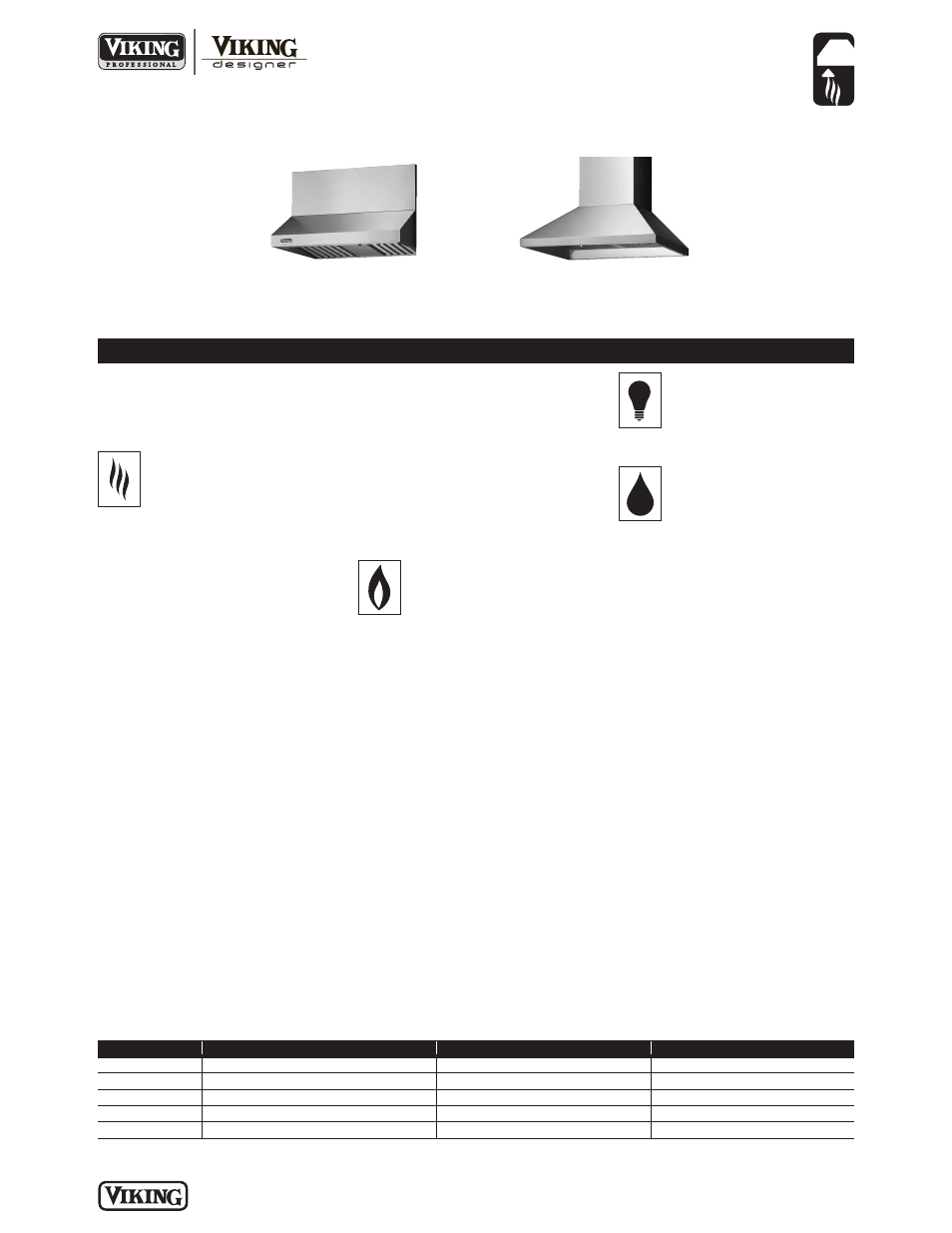

VWH Professional
Wall Hood
DCH Designer Chimney
Wall Hood
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
VENTILATION
Built-In 10”H. Wall Hood w/Ventilator/
12”H. Chimney Wall Hood w/Ventilator
UTILITY REQUIREMENTS
Installation Requirements
Model Interior Ventilator Kits Interior Duct Size Interior Max. Amps
VWH2410 460 CFM standard 7” (17.8 cm) 5.6
VWH3010 460 CFM standard 7” (17.8 cm) 5.6
VWH3610 460 CFM standard 7” (17.8 cm) 5.6
DCH3042 460 CFM standard 7” (17.8 cm) 5.6
DCH3642 460 CFM standard 7” (17.8 cm) 5.6
Note: All CFMs are based on tests with 0.1 static pressure. Without applying static pressure (some brands do not), CFM could be
greatly overstated.
