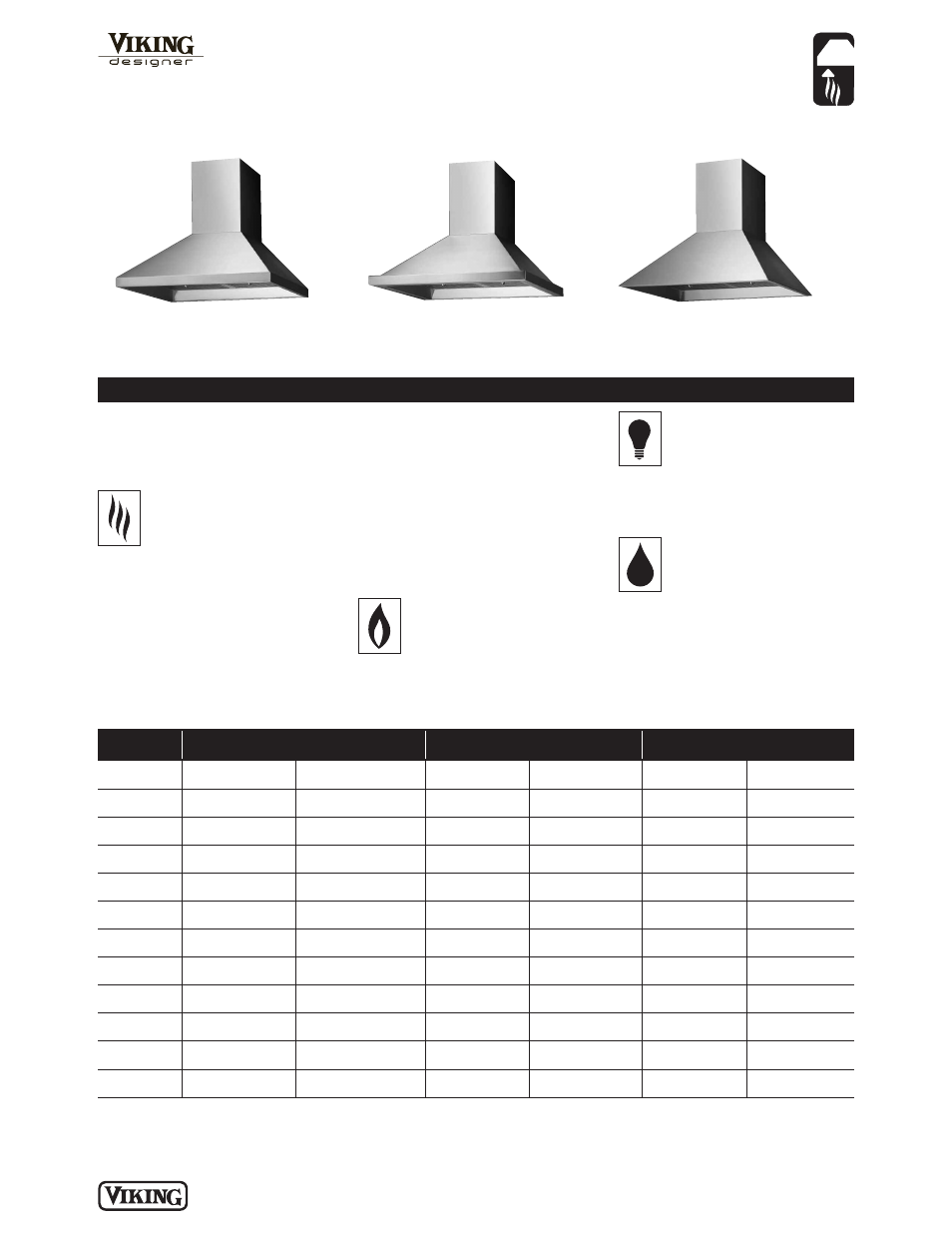

Viking DCWL - Manual (Page 5)

DCWH Designer
Chimney Wall Hood
DCWL Designer
Chimney Wall Hood
w/Ledge
DCWN Designer
Chimney Ledgeless
Wall Hood
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
Proper installation/ducting is extremely
important to ensure maximum
performance. Use a qualified and
trained installer.
VENTILATION
• Check with a qualified and
trained installer or local codes
for makeup air requirements, if
any.
• Max. duct run
o For 300 – 1,200 CFM—50’
(15.2 m)
o For 1,500 CFM—75’ (22.9 m)
o Duct run length is for general
reference only; always use a
qualified and trained installer.
o Straight runs and gradual
turns are best; for example,
each 90” elbow is equivalent
to 5’ – 10’ (1.52 – 3.05 cm) of
straight run.
• 7’ round duct for 300 – 600
CFM; 10’ for 900 – 1500 CFM
o Never use flexible duct; it
creates back pressure/air
turbulence and greatly
reduces performance.
GAS
Not applicable
ELECTRICAL
• Hardwire direct with two-wire
with ground
• 120 VAC/60 Hz
• Max. amp usage (rating
includes rec. ventilator kit
rating)
PLUMBING
Not applicable
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs.
Note: Maximum amp rating for hoods includes recommended ventilator kit rating. All products must be hard wired with two-wire ground. An interior- or
exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
VENTILATION
Built-In Classic Chimney Wall Hood—
Standard, w/Ledge, & Ledgeless
Installation Requirements
Model Ventilator kits Duct size Max. amps
Interior Exterior Interior Exterior Interior Exterior
DCWH3042 DIV300/DIV440 DEV900/DEV1200 7” (17.8 cm) 10” (25.4 cm) 1.7/3.2 6.6/3.9
DIL900/1200
DCWH3644 DIV300/DIV600* DEV900/DEV1200* 7” (17.8 cm) 10” (25.4 cm) 1.7/3.9 6.6/3.9
DIL900/1200
DCWH4244 DIV600 DEV900/DEV1200* 7” (17.8 cm) 10” (25.4 cm) 3.9 6.6/3.9
DIL900/1200
DCWH4844 DIV1200* DEV1200/DEV1500** 10” (25.4 cm) 10” (25.4 cm) 7.3 4.3/5.1
DIL1200
DCWL3342 DIV300/DIV440 DEV900/DEV1200 7” (17.8 cm) 10” (25.4 cm) 1.7/3.2 6.6/3.9
DIL900/1200
DCWL3944 DIV300/DIV600* DEV900/DEV1200* 7” (17.8 cm) 10” (25.4 cm) 1.7/3.9 6.6/3.9
DIL900/1200
DCWL4544 DIV600 DEV900/DEV1200* 7” (17.8 cm) 10” (25.4 cm) 3.9 6.6/3.9
DIL900/1200
DCWL5144 DIV1200 DEV1200/DEV1500** 10” (25.4 cm) 10” (25.4 cm) 7.3 4.3/5.1
DIL1200
DCWN3042 DIV300/DIV440 DEV900/DEV1200 7” (17.8 cm) 10” (25.4 cm) 1.7/3.2 6.6/3.9
DIL900/1200
DCWN3644 DIV300/DIV600* DEV900/DEV1200* 7” (17.8 cm) 10” (25.4 cm) 1.7/3.9 6.6/3.9
DIL900/1200
DCWN4244 DIV600 DEV900/DEV1200* 7” (17.8 cm) 10” (25.4 cm) 3.9 6.6/3.9
DIL900/1200
DCWN4844 DIV1200* DEV1200/DEV1500** 10” (25.4 cm) 10” (25.4 cm) 7.3 4.3/5.1
DIL1200
Note: All CFMs are based on tests with 0.1 static pressure. Without applying static pressure (some brands do not), CFM could be greatly
overstated.
UTILITY REQUIREMENTS
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
