5.
DRY:
This 1/4" output is for use
when running the Time Machine in
stereo. After connecting a 1/4"
cable to the OUT output, run a sec-
ond cable from the DRY output to a
second sound source, such as
another guitar amplifier. This will
enable lush, stereo delay effects.
Your guitar’s dry signal will pass
through this output without pass-
ing through any A/D D/A conver-
sion, while your delayed signal will
pass through the effected OUT out-
put.
6.
“ON” LED:
This LED illuminates
when Time Machine is turned on.
Note: If this LED begins to dim,
light unstably or if your pedal
makes any unusual noise, your bat-
tery is almost empty. If this happens, please replace the battery. When the bat-
tery is completely empty, you will hear no sound from the pedal.
7.
ON:
This switch turns the Time Machine on and off.

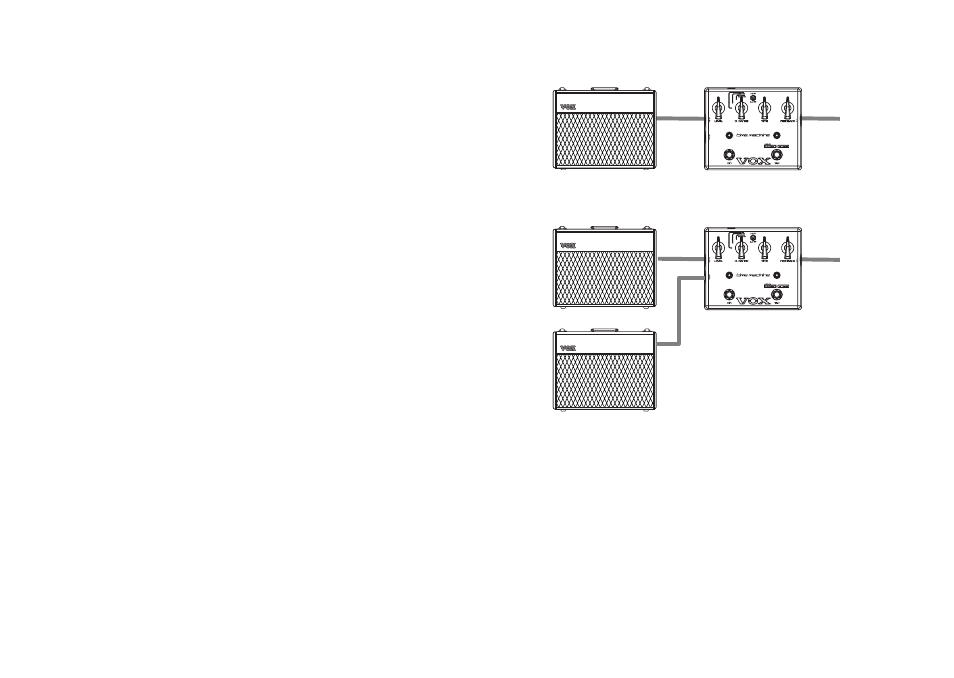

DELAY OUT
+ DRY OUT (no AD/DA convertion)
OUT
IN
IN
OUT
DRY
DELAY OUT
DRY OUT (no AD/DA convertion)
