VT3245-NT/VT3745-NT/VT4245-NT

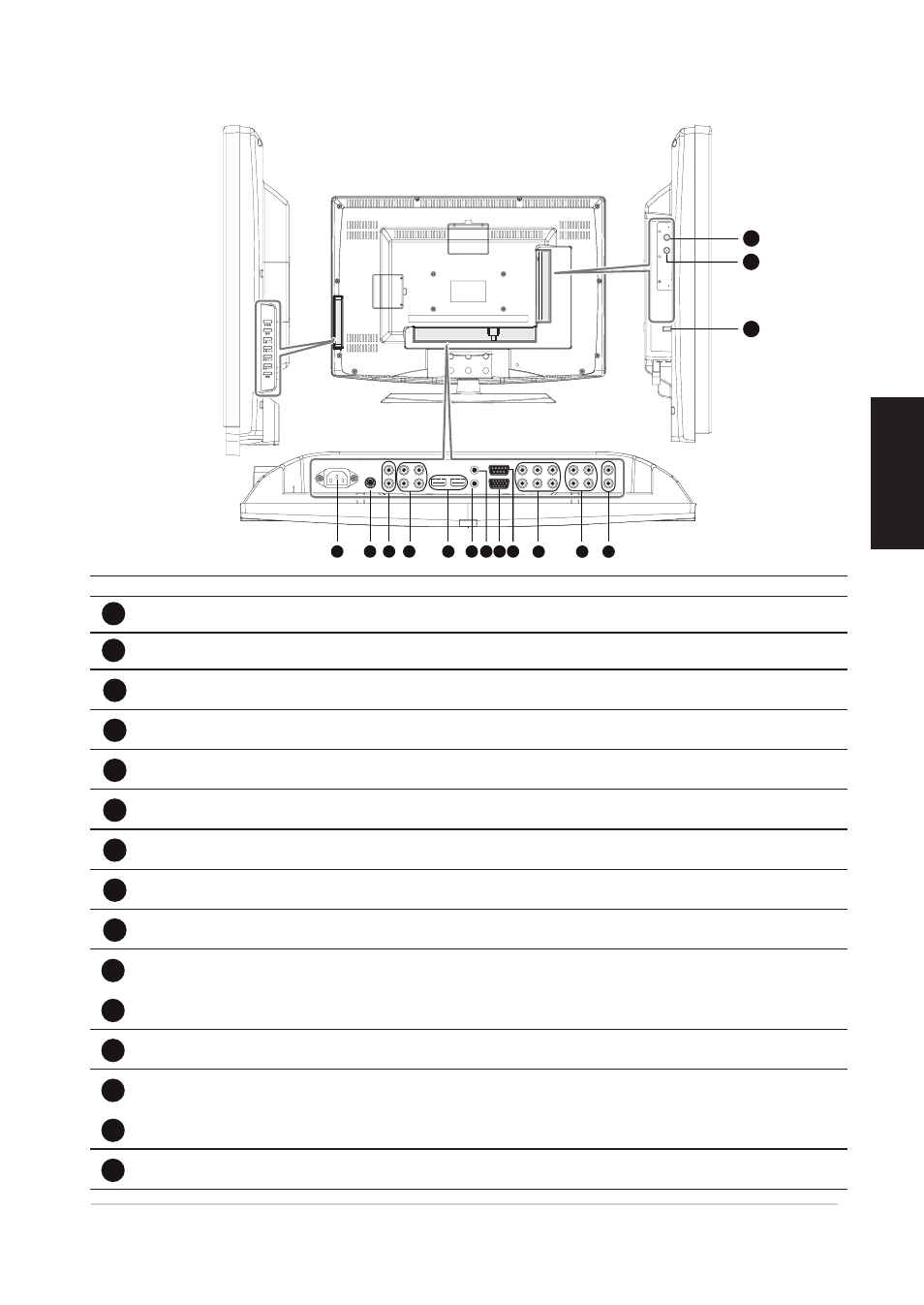

Rear view (32/42-inch)
13
15
14
5
6 7 8 9
10
1
2 3 4
11
12
NO
ITEM
FUNCTION
1
AC-IN
Connect to the AC outlet.
2
S-VIDEO IN
Connect to the S-Video output jack of your video/audio device.
3
AV IN
Connect to the A/V output jack of your A/V device.
4
AV AUDIO IN
Connect to the A/V output jack of your A/V device.
5
HDMI IN
Connect to the HDMI output of your PC or portable computer or A/V
device.
6
PC AUDIO IN
Connect to the audio output of your computer.
7
AUDIO OUT
Connect to the audio input jack of your audio device.
8
PC -IN
Connect to the VGA output of your PC or portable computer.
9
RS232 IN
Connect RS-232 serial port cable for remote control (for service only).
10
COMPONENT IN
Connect to the component output jack of your component device.
11
COMPONENT AUDIO IN
12
AUDIO OUT
Connect to the audio input jack of your Audio device.
13
ANTENNA/TV MODULE
CONNECTORS
Connect to the ATV signal and DTV signal.
14
15
USB
Connect a USB source.
7
