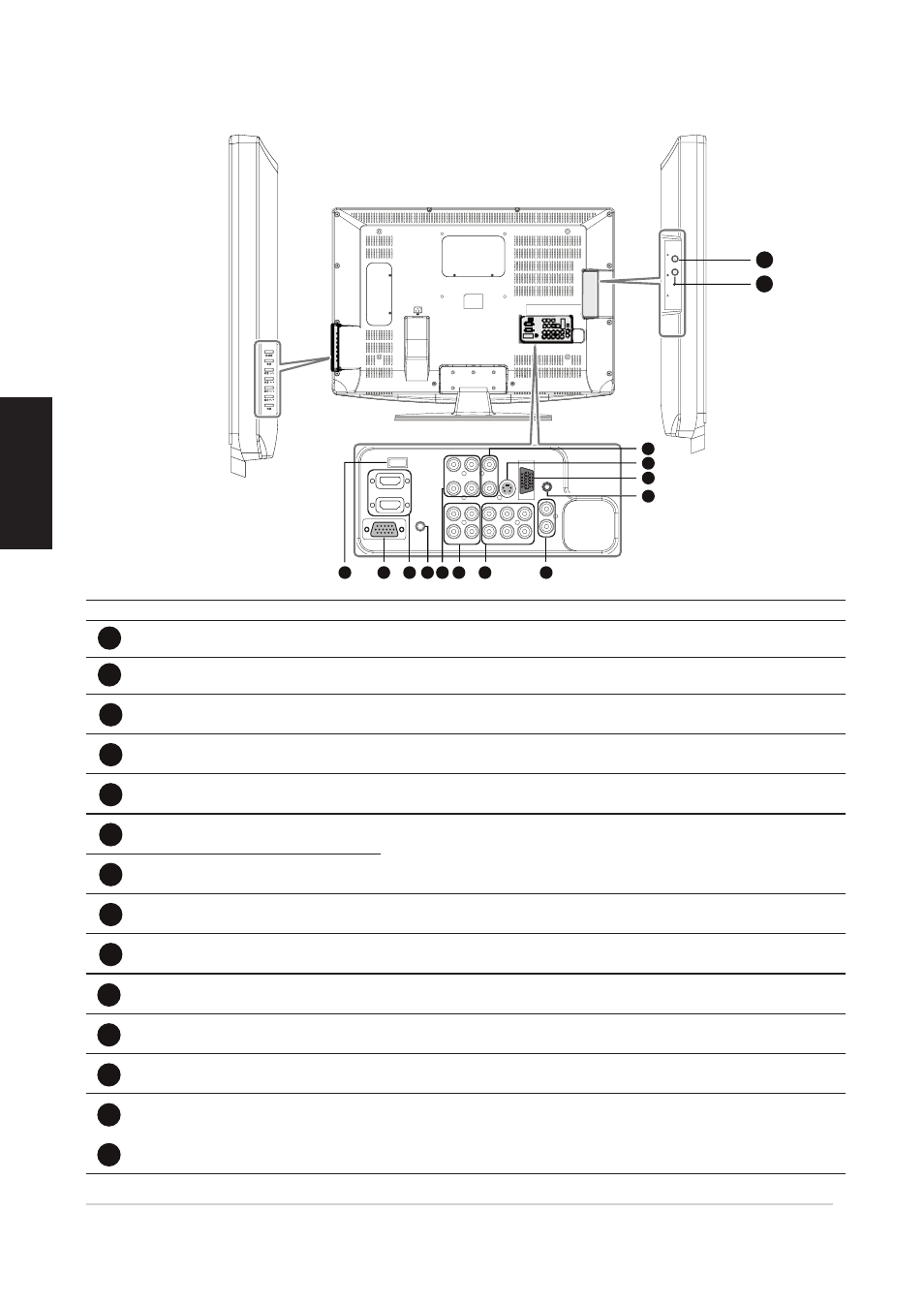

Rear view (32/42-inch)
13
14
5 6
11
10
1
2
3 4
7
9
8
12
NO
ITEM
FUNCTION
1
USB
Connect a USB source.
2
PC -IN
Connect to the VGA output of your PC or portable computer.
3
HDMI IN
Connect to the HDMI output of your PC or portable computer or A/V
device.
4
PC AUDIO IN
Connect to the audio output of your computer.
5
AV AUDIO IN
Connect to the A/V output jack of your A/V device.
6
COMPONENT IN
Connect to the component output jack of your component device.
7
COMPONENT AUDIO IN
8
AUDIO OUT
Connect to the audio input jack of your audio device.
9
AV IN
Connect to the A/V output jack of your A/V device.
10
S-VIDEO IN
Connect to the S-Video output jack of your video/audio device.
11
RS232 IN
Connect RS-232 serial port cable for remote control (for service only).
12
AUDIO OUT
Connect to the audio input jack of your Audio device.
13
ANTENNA/TV MODULE
CONNECTORS
Connect to the ATV signal and DTV signal.
14
