C O N T R O L S & F U N C T I O N S [ 6 ] w w w . u n i d e n . c o m
23 24 25 26
27
28
29
3031 32 33 43
44 45
42
34
35
36
37
38
39
40
41
46
47
48

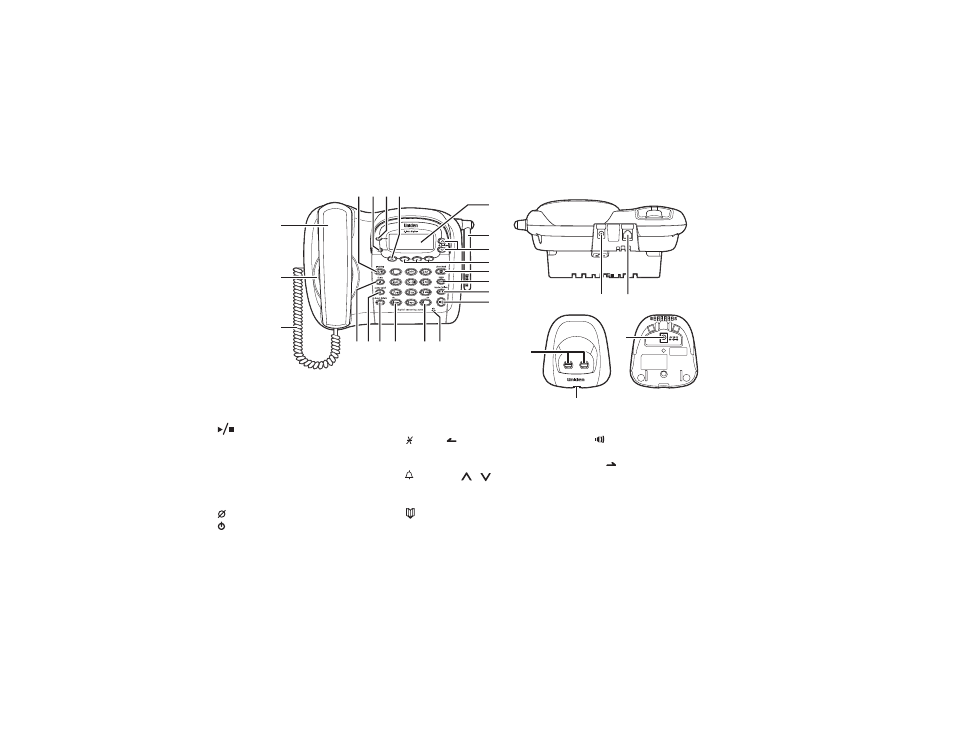

23. play/stop (P. 63)
24. In use LED
25. New Message LED
26. cid/exit (P. 52)
27. Corded Base Handset
28. Base Speaker
29. Curl Cord
30.
delete (P. 65)
31. answer on/off (P. 62)
32. do not disturb /DND LED (P. 36)
33.
/tone/ (P. 37 and 42)
34. LCD Display
35. Base Antenna
36.
/volume / (volume up/down)
(P. 35 and 20)
37. soft Keys (P. 9)
38.
phonebook (P. 41)
39. pause/redial (P.31 and 34)
40. transfer/int'com/hold (P. 73 and 33)
41.
(speaker) LED (P. 31)
42. mic (microphone)
43. #/
(P. 42)
44. DC IN 9V Jack
45. TEL LINE Jack
46. Charging Contacts
47. Charge LED
48. DC IN 9V Jack
