UNIDEN Model UH044DP DELUXE PACK UHF CB Radio

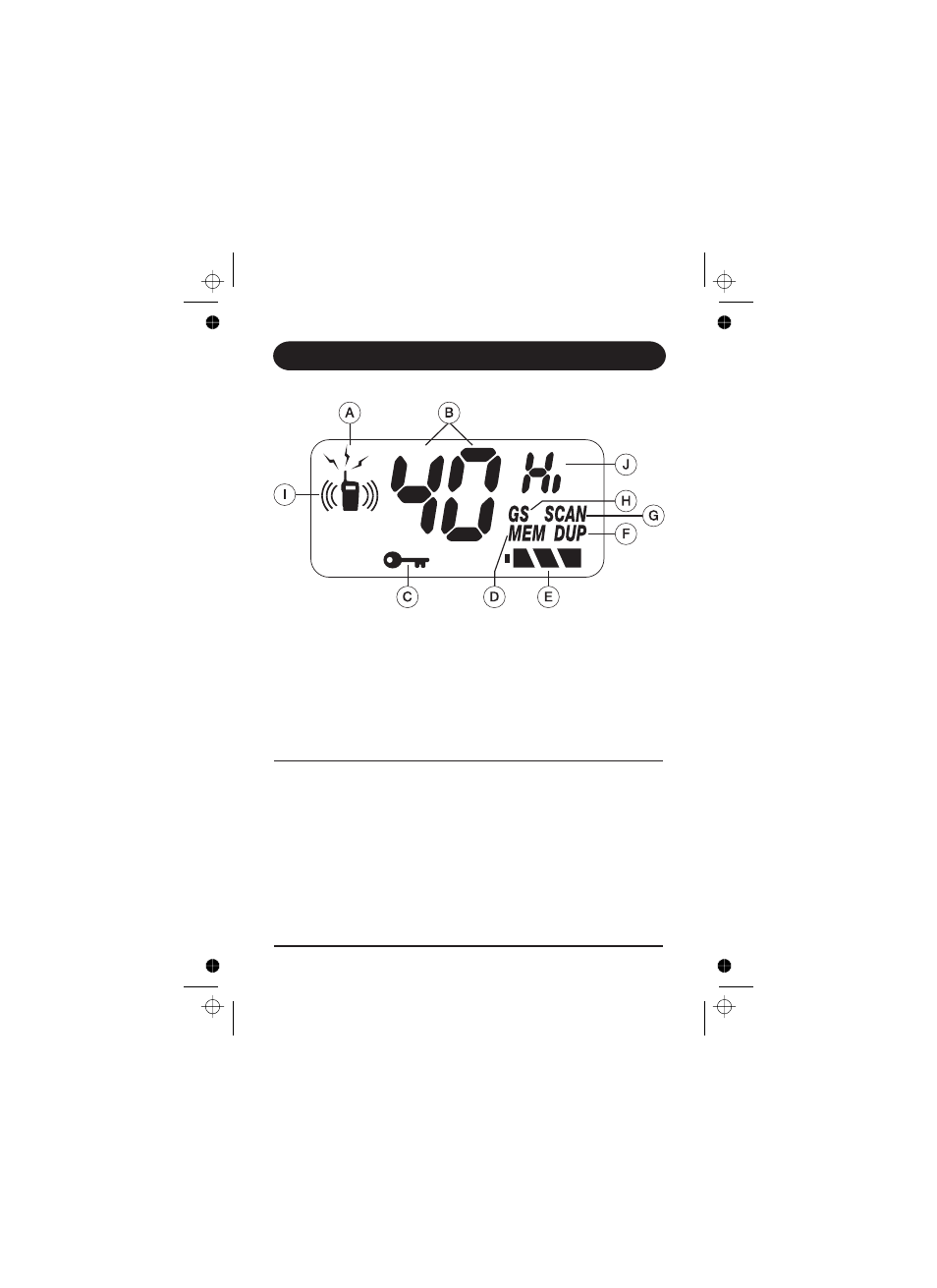

A. Transmit

B. Channel Numbers

C. Key Lock

D. Memory

E. Battery Level Indicator

F. Duplex Transmit

G. Scanning

H. Group Scanning

I. Receiving

J. Power Level Indicator

1. Speaker Jack

2. Microphone Jack

3. On/Off Volume

4. LCD Display

5. Up Button

6. Down Button

7. Microphone

8. Speaker

9. Scan Button

10. Transmit Power Select /

open/group scan

11. Memory On/Off Button

12. Duplex On/Off Button

13. PTT (Push-to-talk)

Button

14. Monitor Switch

15. Belt Clip
