3

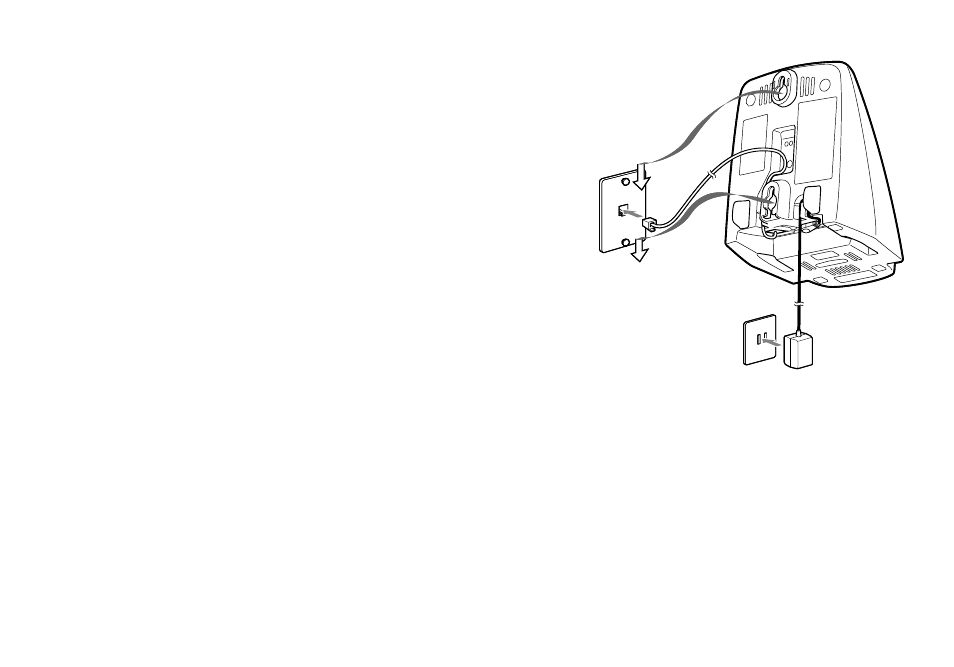

Wall.Mounting.the.Base

This.phone.can.be.mounted.on.any.standard.wall.plate..

Plug.the.AC.adapter.into.the.DC.IN.9V.jack.
Wrap.the.AC.adapter.cord.inside.the.molded.wiring.channel.as.

shown.
Plug.the.AC.adapter.into.a.standard.20V.AC.wall.outlet.
Plug.the.telephone.line.cord.into.the.TEL.LINE.jack..Wrap.the.cord.

inside.the.molded.wiring.channel.as.shown.
Plug.the.telephone.line.cord.into.the.telephone.outlet.
Align.the.mounting.slots.on.the.base.with.the.mounting.posts.on.

the wall. Then push in and down until the phone is firmly seated.

Note:.DO.NOT.use.an.AC.outlet.controlled.by.a.wall.switch.

)
2)

3)
4)

5)
6)
