4. Align the pins on the
CTCSS Board with
the sockets on the
mother board. Make
sure they go straight
into the sockets.
The 4 pin socket is
toward the front of the
scanner.
The 3 pin socket is
toward the back of
the scanner.
5. Gently push straight
down on the CTCSS
Board until the pins
are fully seated in
the sockets.
6. Carefully replace the cover and the five screws.
Note: The tabs on the cover hook under the front part of the
chassis.
46
To speaker
(Inside Top
Cover)

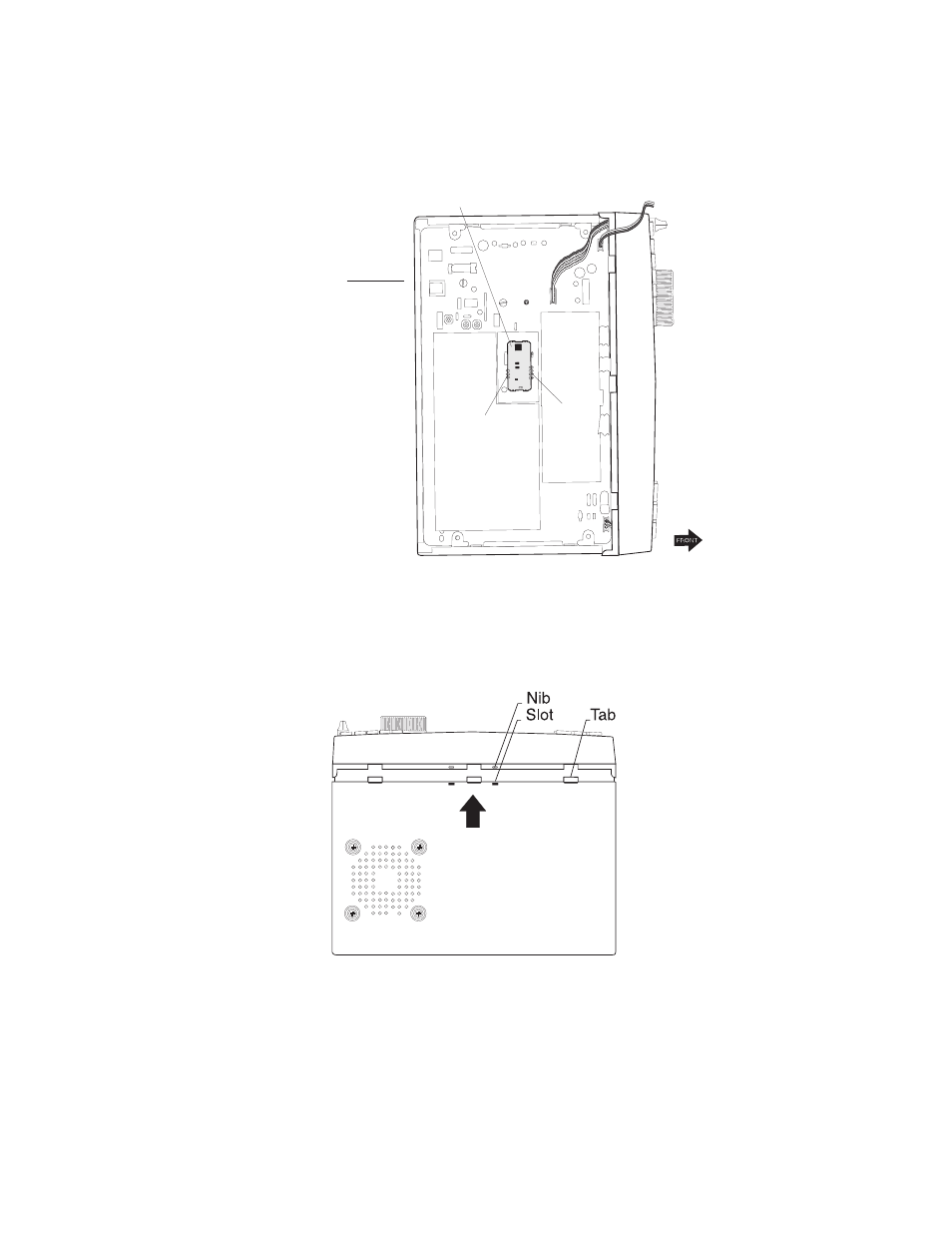

CTCSS Board installed
3 pins
4 pins
