3-6 Chapter 3: Motherboard Info
3. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for the 24-pin and 4-pin power plugs from the power
supply unit. The plugs from the power supply unit are designed to fit these
connectors in only one orientation. Find the proper orientation and push down
firmly until the connectors completely fit.

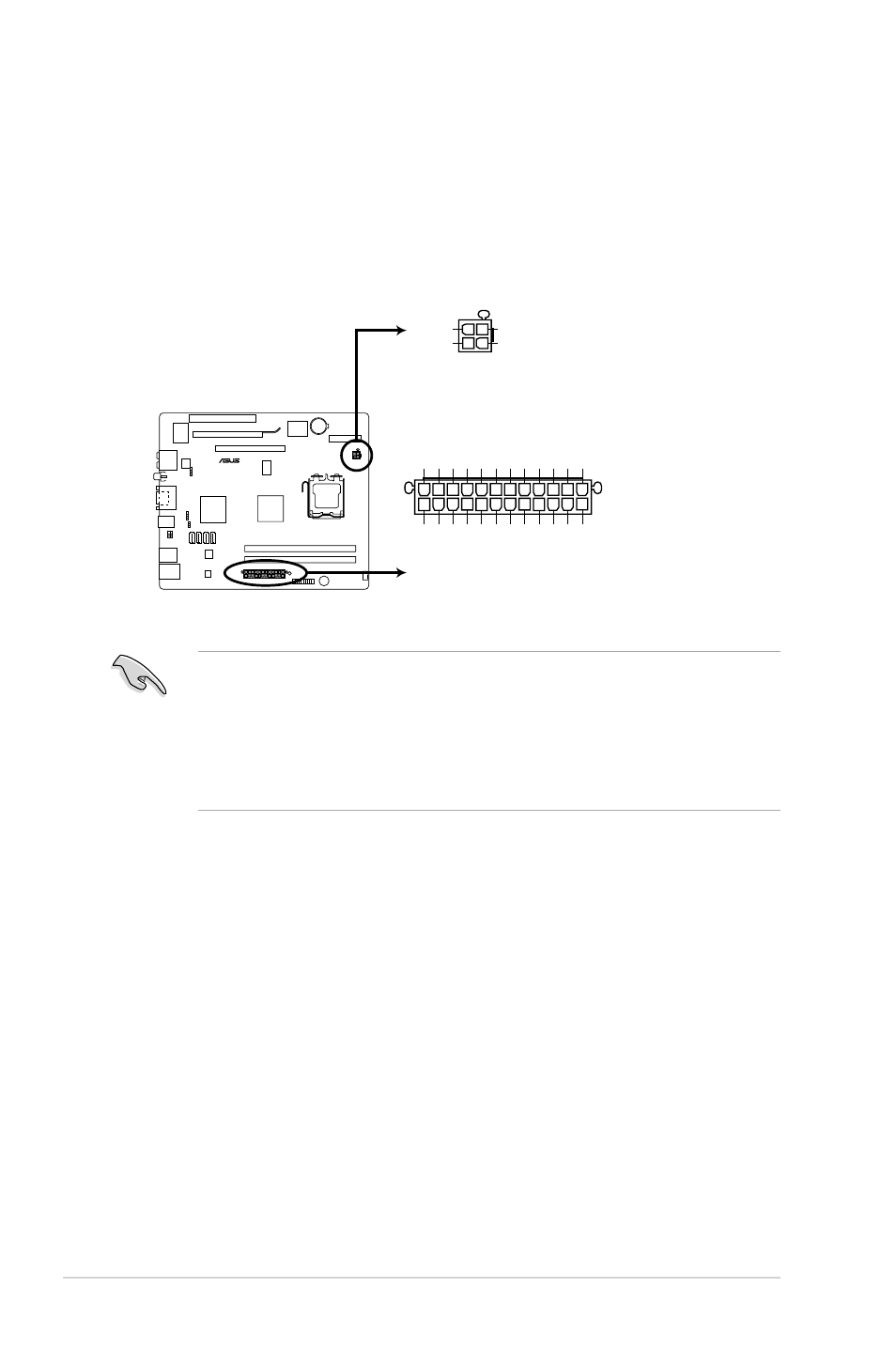

P5QP18L
P5QP18L ATX power connectors
EATXPWR
PIN
1
GND +5 Volt
s
+5 Volt
s
+5 Volt
s
-5 Volt
s
GND GND GND PSON# GND -12 Volt
s
+3 Volt
s
+3 Volt
s
+12 Volt
s
+12 Volt
s
+5V Standb
y
Power OK
GND
+5 Volt
s
GND
+5 Volt
s
GND
+3 Volt
s
+3 Volt
s
ATX12V
PIN 1
+12V DC
+12V DC GND
GND
• Do not forget to connect the 4-pin ATX12V power plug. Otherwise, the
system will not boot.
• We recommend that you use a PSU with a higher power output when
configuring a system with more power-consuming devices or when you
intend to install additional devices. The system may become unstable or
may not boot up if the power is inadequate.
