3-2 Chapter 3: Motherboard Info
3.1 Introduction
The motherboard comes already installed in ASUS T5-P5G41E system. This
chapter provides technical information about the motherboard for future upgrades
or system reconfiguration.

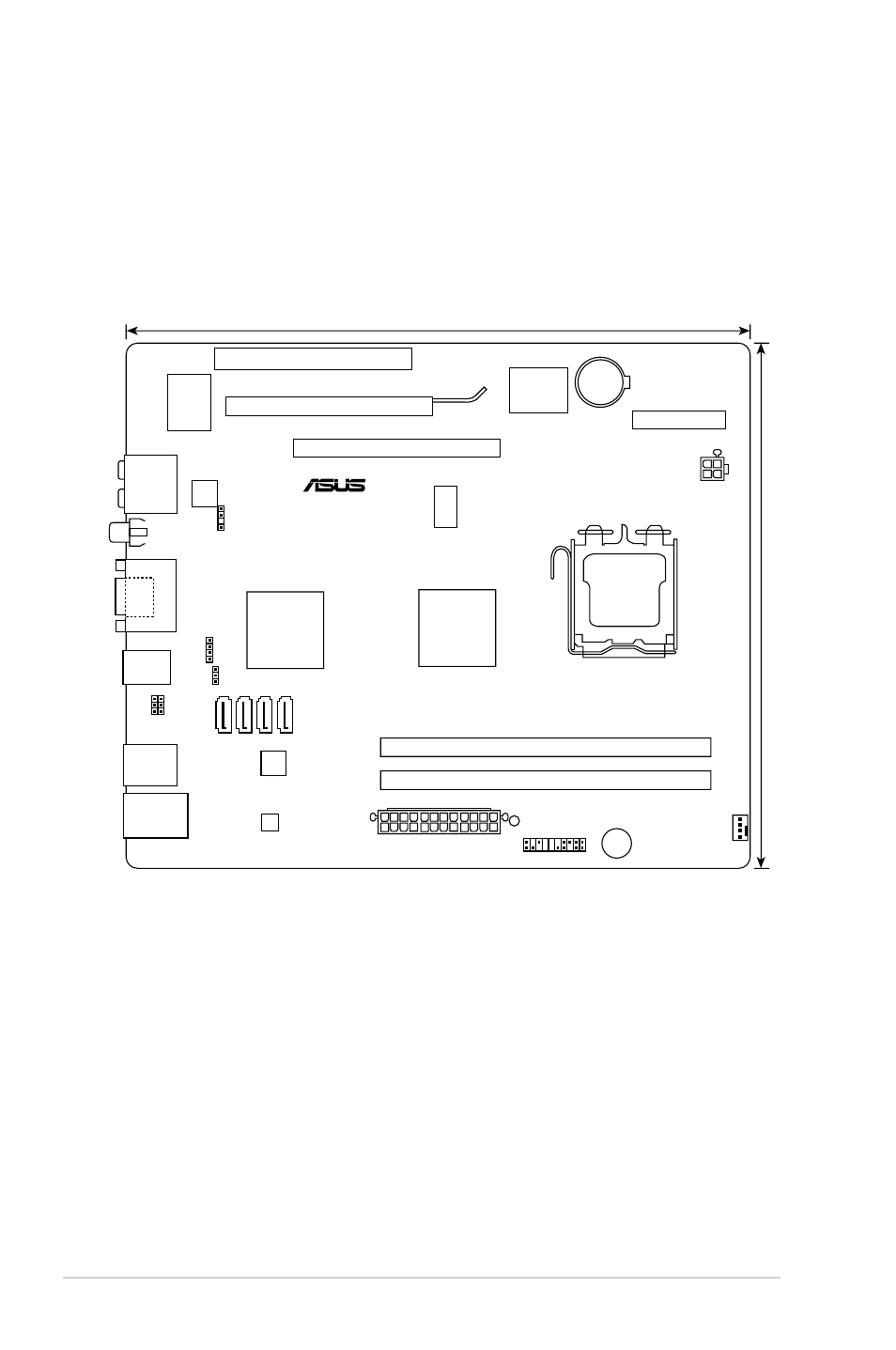

3.2 Motherboard layout
P5QP18L
PCIEX16
FRONT_CON
SPDIF_OUT
IC
S
9LRS954
SATA1 SATA2 SATA3 SATA4
PCI1
ATX12V
LGA775
EATXPWR
CPU_FAN
SB_PWR
Intel ®
G41
Intel ®
ICH7
Lithium Cell
CMOS Power Super
I/O
AUDIO
VIA
VT6308P
ALC
887
DDR3 DIMM_A1 (64bit, 240-pin module)
DDR3 DIMM_B1 (64bit, 240-pin module)
SPDIF_O
KBMS
VG
A
HDMI
F_USB34
LAN1_USB12
8Mb
BIOS
Atheroes
L1E
BUZZER
CLRTC
USB5
USBPW1-4
KB_USB5PWR
26.7cm(10.5in)
22.4cm(8.8in)
PANEL
