Introduction
12

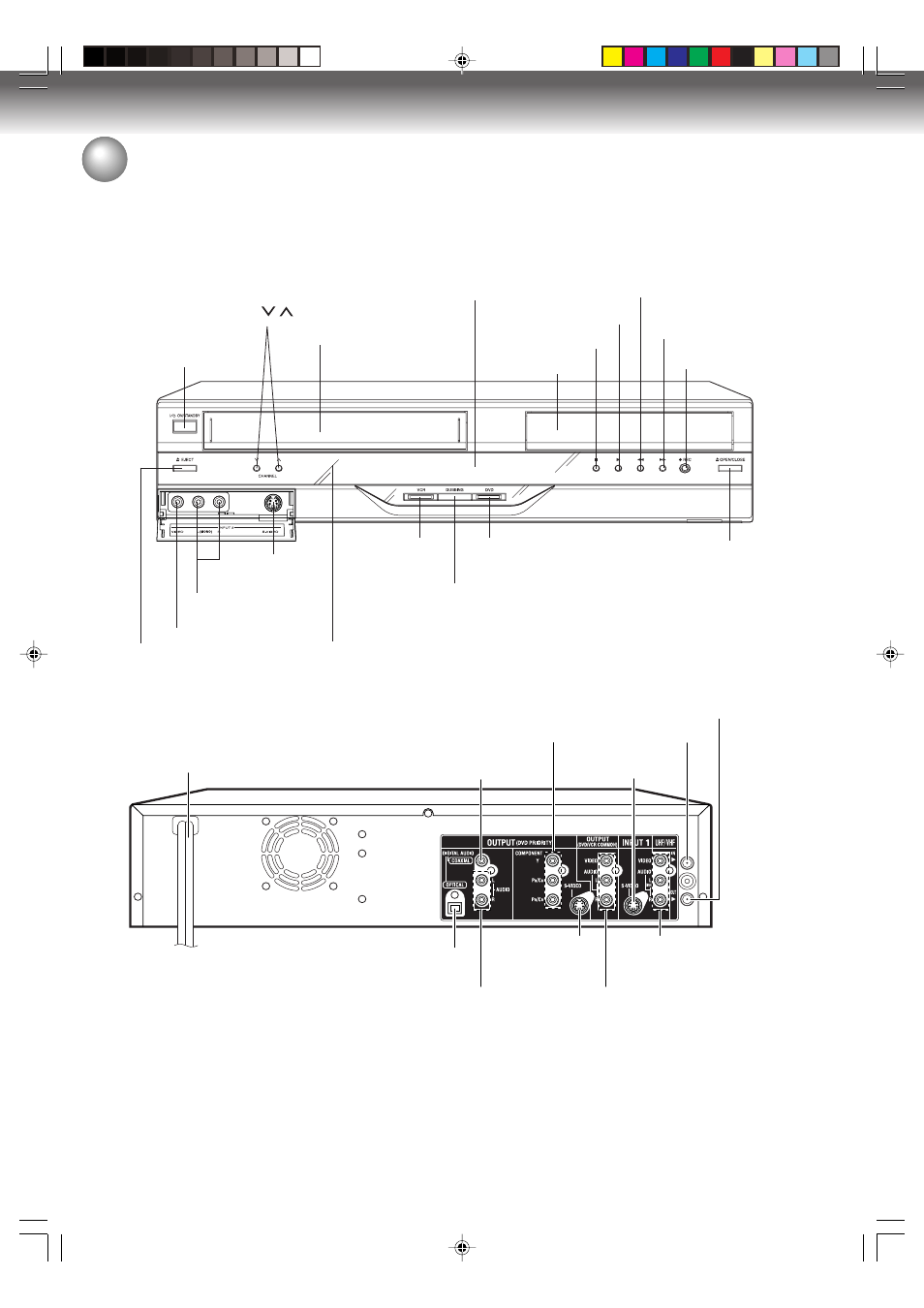

Parts and functions
Rear
Front
AC power cord
COAXIAL DIGITAL
AUDIO OUT jack
(DVD Priority)
AUDIO (L/R)/VIDEO OUT jacks
(DVD/VCR common) AUDIO (L/R)
OUT jacks
(DVD Priority)
AUDIO (L/R)/VIDEO
IN (INPUT 1) jacks
S-VIDEO
IN (INPUT 1) jack
S-VIDEO OUT jack
(DVD Priority)
COMPONENT
OUT jacks
(DVD Priority)
OPTICAL DIGITAL
AUDIO OUT jack
(DVD Priority)
RF IN jack
RF OUT jack
POWER button
EJECT button
OPEN/CLOSE button
PLAY button
STOP button
F.FWD (Fast Forward)
button
REW (Rewind) button
REC/OTR button
CHANNEL / buttons
Disc tray
Cassette loading slot
DVD button/
DVD indicator
DUBBING button
VCR button/
VCR indicator
Display window
VIDEO IN (INPUT 2) jack
S-VIDEO IN
(INPUT 2) jack
AUDIO (L/R) IN
(INPUT 2)jacks
* This unit has a door on the front panel.
Please open it to access the S-VIDEO jack and the AUDIO (L/R)/VIDEO IN (INPUT 2) jacks.
Remote sensor
