13
1 - Analog Out
Balanced analog outputs on 1/4” TRS jacks. The level of
the outputs is controlled by the monitor level control knob
on the front panel.
2 - AES/EBU inputs
Female XLR connectors for up to 8 AES channels.
3 - AES/EBU outputs
Male XLR connectors for up to 8 AES channels.
4 - SPDIF I/O
Upper row:
- RCA connectors for 8 input channels of SPDIF
Lower row:
- RCA connectors for 8 output channels of SPDIF
5-8 ADAT/Toslink I/O connectors
The optical connections carry either Toslink (optical
SPDIF) or ADAT signal.
ADAT:
-
At normal sample rate 8 channels of ADAT is carried
on a single lightpipe. Use the MAIN connector.
- At double sample rate 8 channels of ADAT is
distributed on 2 lightpipe connectors. Use both the MAIN
and the 96 kHz connections.

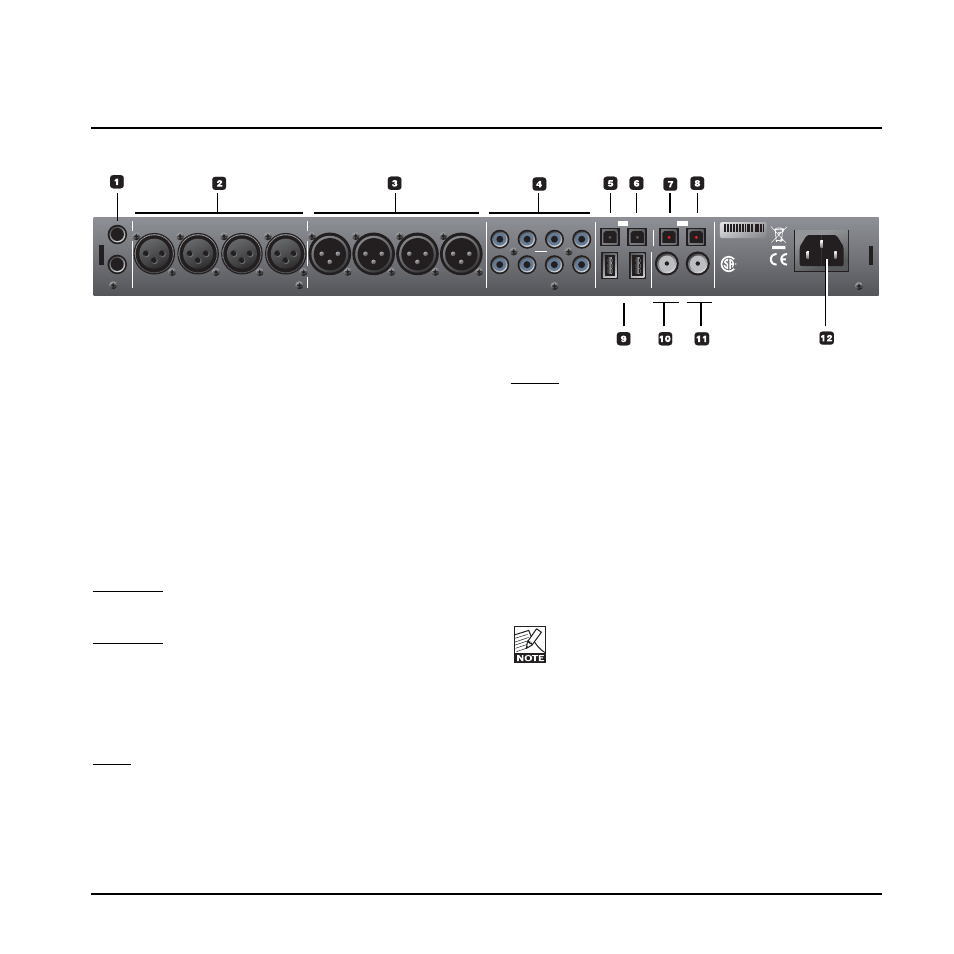

REAR PANEL VIEW
UL60065
EN/IEC 60065 CSA FILE | LR108093
aes/ebu inputs
R
L
monitor
aes/ebu outputs spdif I/O
firewire WCK
3-4 3-4 1-2 1-2 TOS
96k 96k MAIN MAIN ADAT
TYPE: PB001
TC ELECTRONIC
MADE IN DENMARK
R
C US
1/2 3/4 5/6 7/8
OUT
IN
1/2 1/2 3/4 3/4 5/6 5/6 7/8 7/8
12345687-9872
OUT IN PROFESSIONAL AUDIO EQUIPMENT
100-240 V~AC 50-60Hz, 15W
THIS CLASS B DIGITAL DEVICE MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-
CAUSING EQUIPMENT REGULATIONS AND COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION SUBJECT TO CONDITIONS STATED IN THE MANUAL.
OUT IN
Toslink:
-
Digital Konnekt x32 handles up to 6 input channels
and 4 output channels of optical SPDIF via Toslink.
Input for Toslink channels 5/6 is located on the front.
9 - Firewire
Firewire connection for connecting Digital Konnekt x32 to
a computer and/or linking up to 4 units.
10 - Wordclock Out
Due to the DICE II chip, Digital Konnekt x32 can act as
an excellent master clock generator for you setup.
Connect via standard BNC plugs.
Beware that the Word Clock signal is not
standardized. Some Word Clock receivers are
known to fail when the peak-to-peak signal
exceeds 3 Volt, and others are known to require at
least 4 Volt, making it impossible to design a Word
Clock driver guaranteed to operate with all receivers.
Digital Konnekt x32 send 1.7V PP.
11 - Wordclock In
Connect your external wordclock generator here and
select “WCK in on the front panel.
12 - Power In
The switchmode power-supply accepts from 100 to
240VAC.
