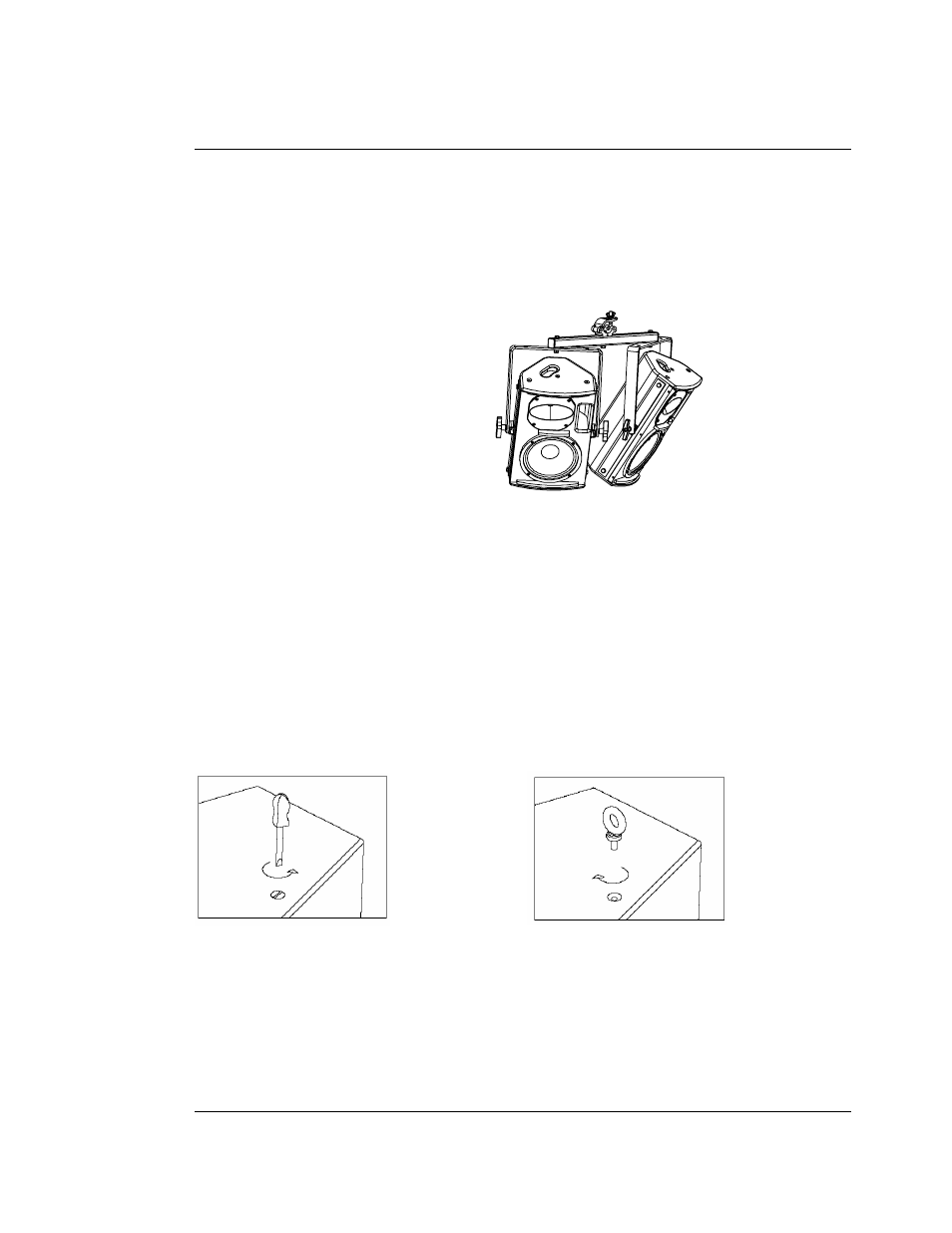

To create a horizontal array for truss mounting:
• Assemble the flying yokes and
attach them to the cabinets as
detailed above using the fixings
provided with the flying yokes.
• Swing the yokes around to the
tops of the cabinets and attach
them to the ends of the T-bar
using the fixings provided.
• Attach the SC-01 scaffold clamp
to the middle of the T-bar using
the screws provided.
• Lift the assembly on to the truss structure and point the array as required.
Flying Single Enclosures
All NuQ series cabinets, including low frequency enclosures, can be rigged in permanent
installations using optional M10 shoulder eyebolts (available from Turbosound or third
party suppliers). These can be attached to the rigging points provided on the top and
back of the cabinet. The rigging point at the rear of the cabinet is used to alter the
downward angle of the enclosure.
As supplied, these rigging points are fitted externally with M10 countersunk slot-head
screws. To facilitate rigging of the enclosure simply remove these M10 screws and
replace them with M10 x 18mm shoulder eyebolts using a suitable thread locking
compound to avoid the possibility of loosening.
Note: Eyebolts must have a thread length of at least 18mm (3/4”).
SC-01
Scaffold Clamp
NuQ-TB
Twin Bar
NuQ-FY10
Flying Yoke
