Hardware Compatibility
Model NuQ-8 NuQ-10 NuQ-12 NuQ-15
Wall mount WB-20B
PB-55
WB-20B
PB-55
WB-55B
PB-55
WB-55B
PB-55
Flying Yokes NuQ-FY8 NuQ-FY10 NuQ-FY12 NuQ-FY15
Swivel brackets NuQ-SB8 NuQ-SB10 n/a n/a
Swivel bracket
extenders
NuQ-SBE8 NuQ-SBE10 n/a n/a
Horizontal array NuQ-TB NuQ-TB n/a n/a
OmniMount™ Series 20.5 Series 60 Series 60 Series 120
Speaker Pole and Tripod Stand Mounting
NuQ series two-way cabinets are equipped with pole mount sockets for portable use on
35mm speaker stands or poles. NuQ series bass cabinets are equipped with pole mount
receptacles that allow two-way cabinets to be mounted at the correct height above the
sub-bass unit.
Use with Flying Yokes
Additional pole mounting flexibility is provided by adjustable flying yokes which allow
two-way speakers to be angled downwards in order to achieve better audience coverage
from a simple two-way-plus-sub-bass combination. The FY-PH pole holder adapter fixes
to the yoke and mounts directly on top of the speaker pole or tripod stand.

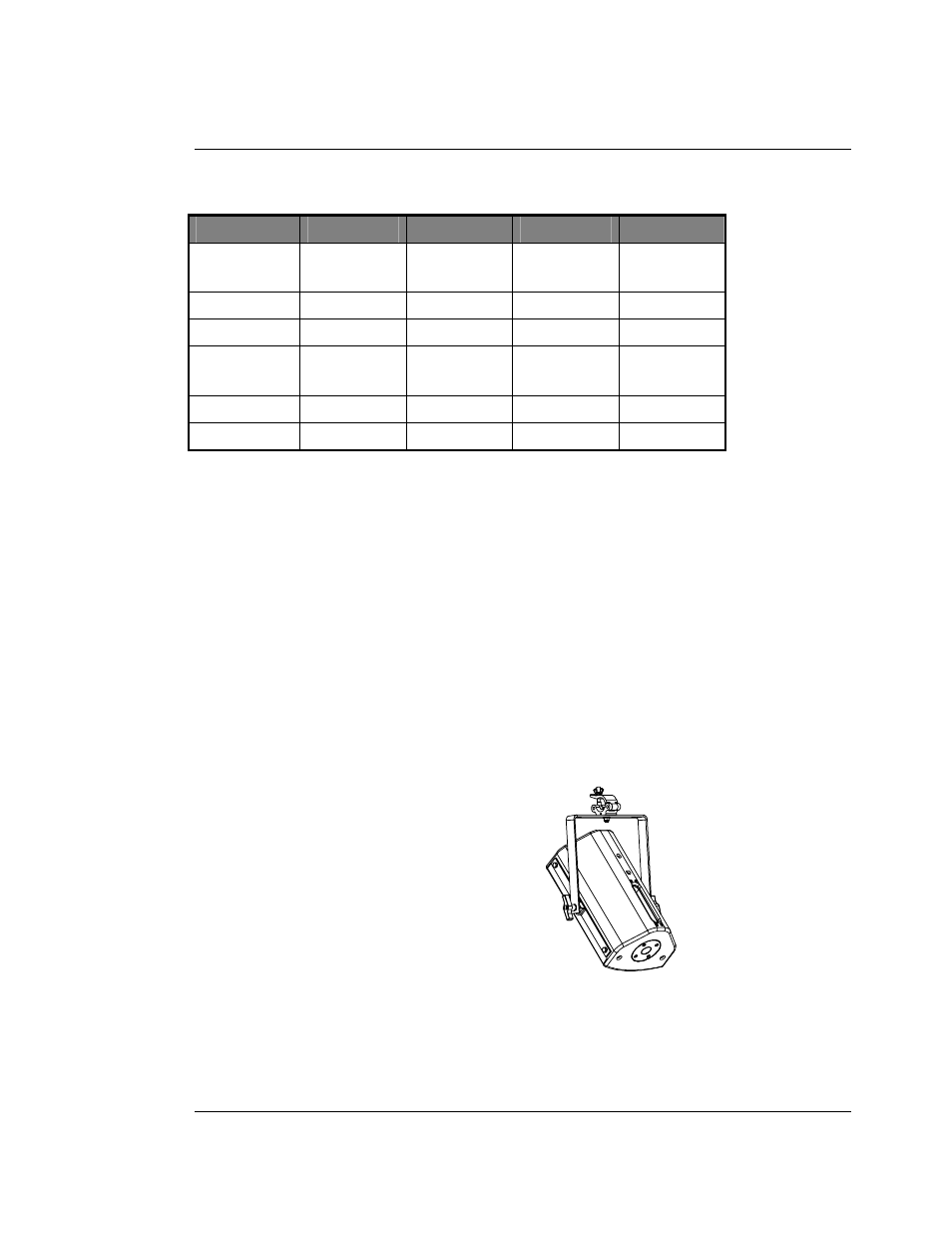

Truss Mounting
Cabinets can be rigged from standard truss systems
using model-specific flying yokes and scaffold clamps.
These allow virtually unlimited adjustment of rotation
and downward angle to ensure accurate room coverage.
• Remove the four M10 countersunk screws on
the sides of the cabinet using a 6mm Allen key
• Fit the flying yoke using the M10 bolts supplied
and tighten
• Attach the scaffold clamp to the top bar of the flying yoke using the M12 bolt
supplied and tighten
• Mount the loudspeaker to the truss, angle and rotate as required and tighten the
thumbwheels
SC-01
Scaffold Clamp
NuQ-FY8
Flying yoke
