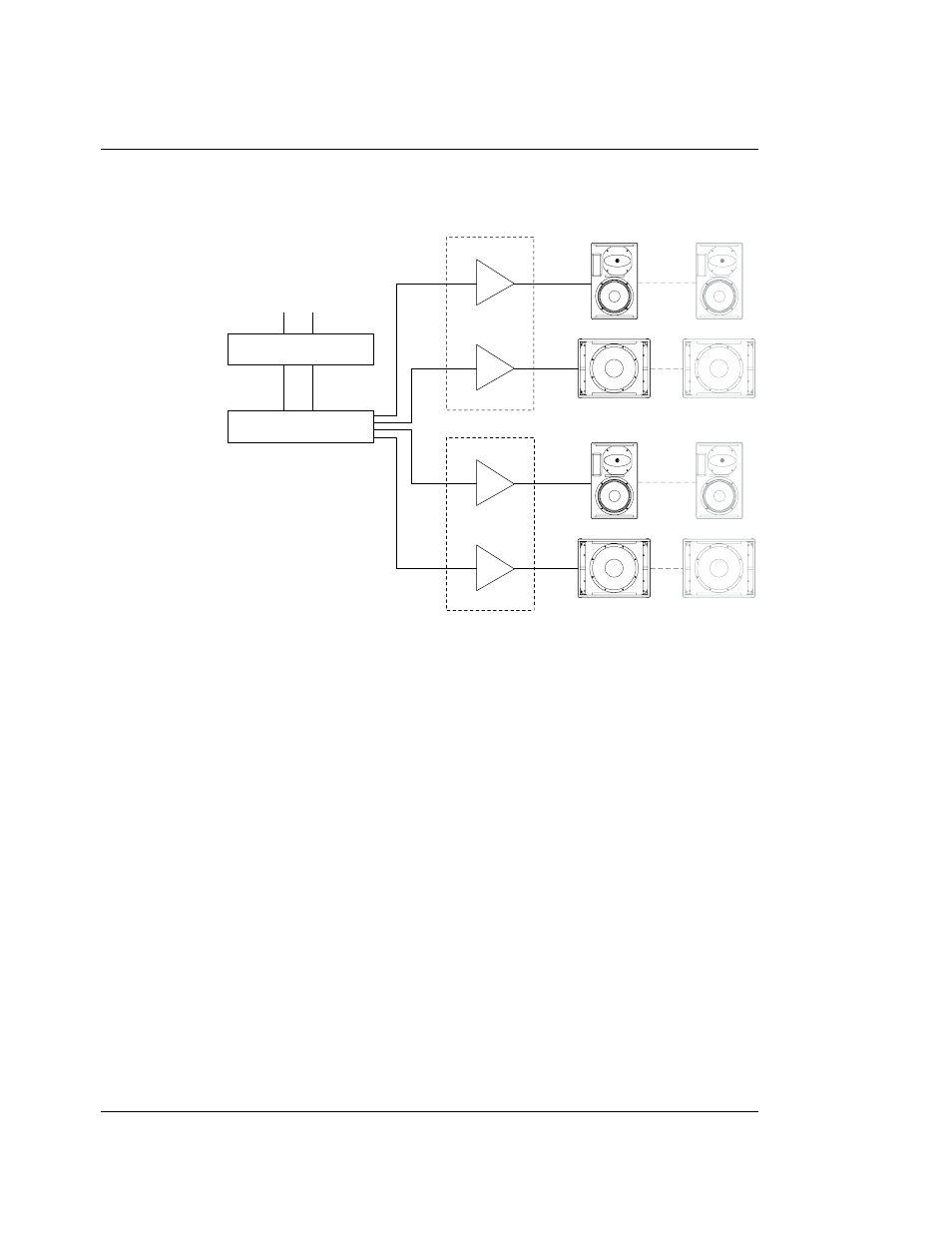

System 2 – Stereo Passive setup with Bass Units and Active Crossover
MID/HI
BASS
MID/HI
BASS
POWER AMPLIFIERS
FROM MIXER
L R
LMS-D24
EQ
LEFT
RIGHT
In this case an LMS-D24 is used to separate the bass and mid / high frequencies and feed
them to the appropriate cabinets.
This system can be scaled up with the addition of further amplifiers and processors.
By substituting an LMS-D26 processor for the LMS-D24 there will be two extra channels
available for adding perhaps another pair of mid/top cabinets through an extra stereo
power amplifier.
The B15 bass speakers shown are rated at 8 ohms impedance so it is possible to run two
cabinets from one amplifier, providing the amplifier is powerful enough, although
additional amplifiers will still provide the best performance.
It is recommended to use a bass cabinet and a mid/top with each stereo amplifier as this
helps distribute the load across the power supplies better.
NB: The EQ shown is for tuning the system to the room / venue.
