User n
User 2
TrueAlarm smoke sensors
Fire source
Fire Control
Fire Alarm Control Panel
(4100U shown for reference)
Local panel alarm
notification appliances
DACT output for routing
alarm to local fire department
Automatically generated e-mail
is sent to user account list for
supplemental notification
E-mail distribution
receivers
Forwarded
message
Compatible wireless message devices receive either
directly addressed or forwarded e-mail messages
FIRE ALARM ALARM SILENCED PRI ORITY 2 ALARM SYSTEM SUPERVISORY SYST EM T RO UBLE PO WER ON ALARM ACK SUPV
ACK TBL
ACK ALARM ACK ALARM
SILENCE SYSTEM
RESET
DISPLAY TIME
SYSTEM IS NORMAL 12:35:15 am MON 22 NOV 99
To remote
annunciators
SafeLINC FPII module; size:
4" x 11-5/16" (102 mm x 287 mm)
Pagers PDAs
Intranet/Internet Service
Provider Network
Address selected to
receive e-mail
User 1
MIS/IT e-mail
distribution lists
(from PC or direct)
SafeLINC
FPII Model
Compatible Panels Mounting Reference Module Impact
4100-6060 4100U Fire Alarm Control Panels
Mounts in Blocks A & B in an
expansion bay
4120 Series Network Panels:
4120-0160
4120-8001
4100-8010
4100-8201
4100-8511 4100-8601
4100-8700
4100-8701
4100-8721
4100 Series Fire Alarm Panels:
4100-0160
4100-8001
4100-8010
4100-8201
4100-8210 4100-8511
4100-8601
4100-8701
4” (102 mm) module width,
requires two slot locations
Reduces RS-232 Module capacity by
one;
With a SafeLINC FPII installed, each of
these panels can have up to two
additional RS-232 Modules
4020-0160
4020 Series Fire Alarm Panel
model 4020-8001 Mounts in available 4” width on
back plate or on top hat bracket
Select either 4020-0160 or the
4020-0113 RS-232 Module; only one is
available with the 4020
3 S4100-0028-2 9/2003

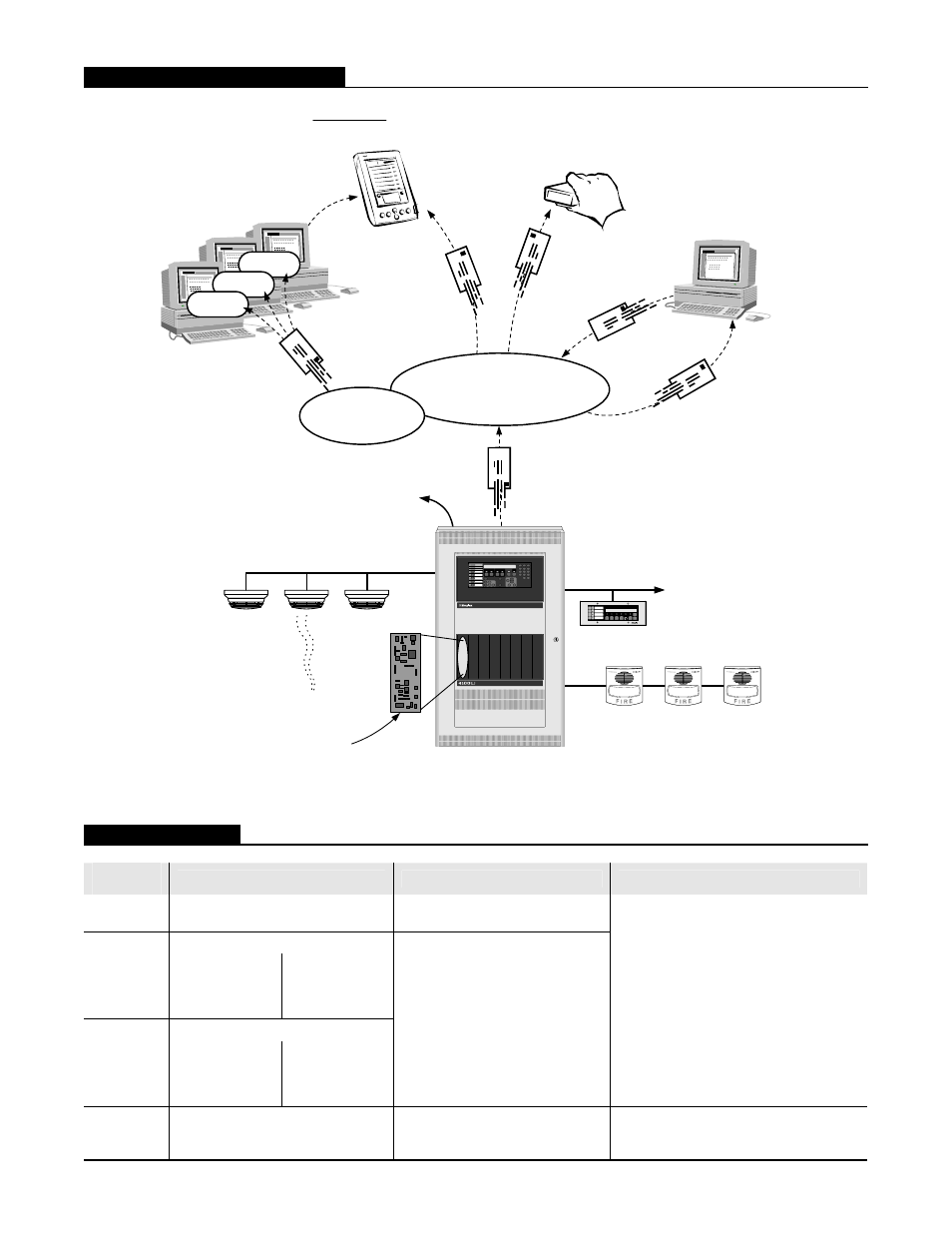

Message Distribution Diagram
Product Selection
