9.4 RADIO STATUS ICONS
Status Icons indicate the various operating characteristics of the radio. The icons show operating modes
and conditions and appear on the third line of the display (see Table 9-3). The battery icon indicates
approximate level only, based on battery voltage.

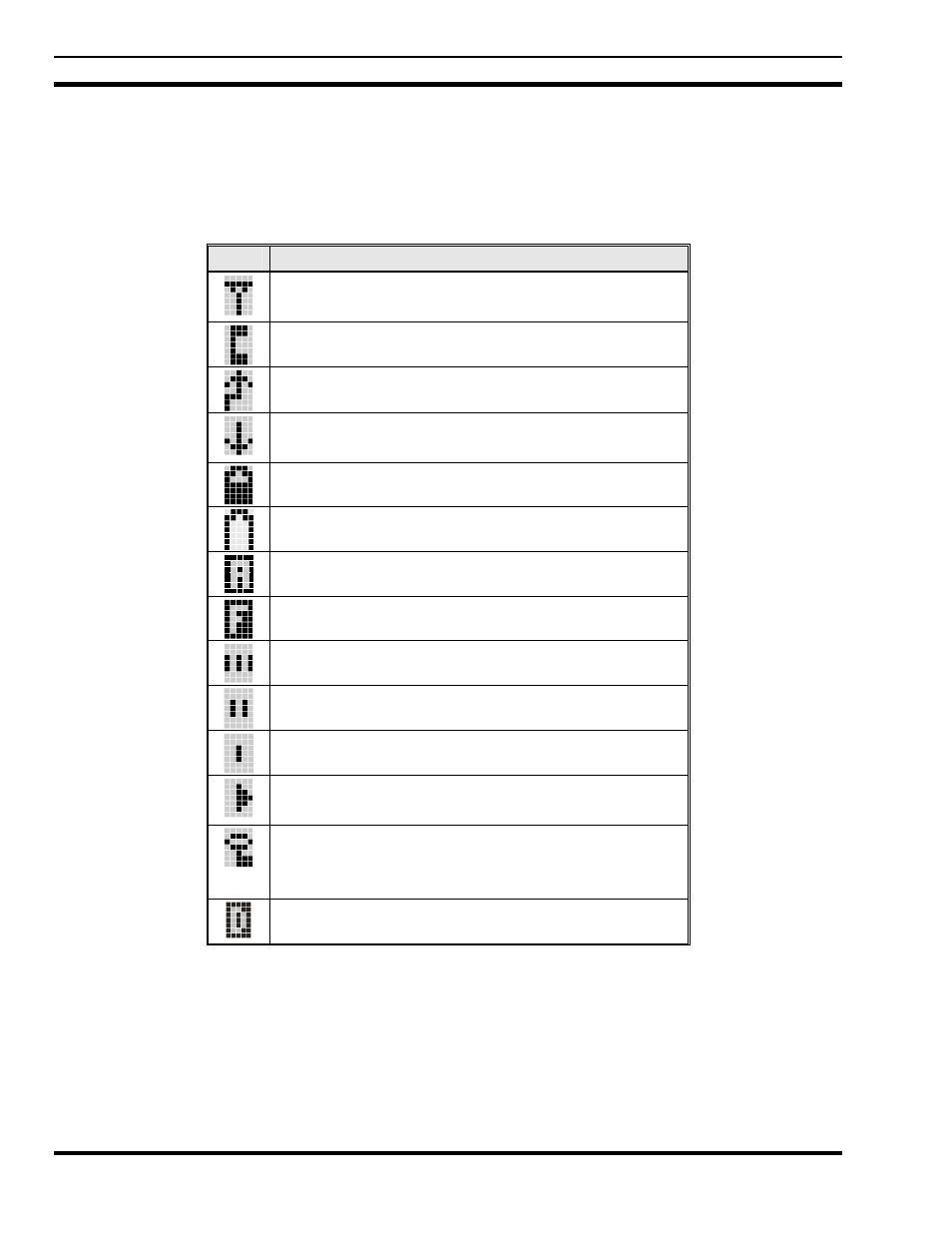

Table 9-3: Display Descriptions
ICON DESCRIPTION
Steady – “Busy” transmitting or receiving.
Flashing – call queued.
Steady – special call mode (individual or telephone).
Steady – during all radio transmissions.
Steady – transmit at low power.
If icon is not visible – transmit at high power.
Steady – battery charge indicator.
Flashing – Low battery indicator.
Steady – Indicates the current channel is set up as
an analog channel.
Steady – trunked system in Failsoft ™ mode.
Steady – group or channel in scan lis.t
Steady – priority 2 group or channel.
Steady – priority 1 group or channel.
Steady
(rotates clockwise) – scan mode enabled.
If icon is not visible – scan is disabled.
P7200 Only
Steady – transmit in encrypt mode.
Flashing – receiving an encrypted call.
Steady – Indicates the current channel is set up as a
ProVoice or Aegis channel.
