27

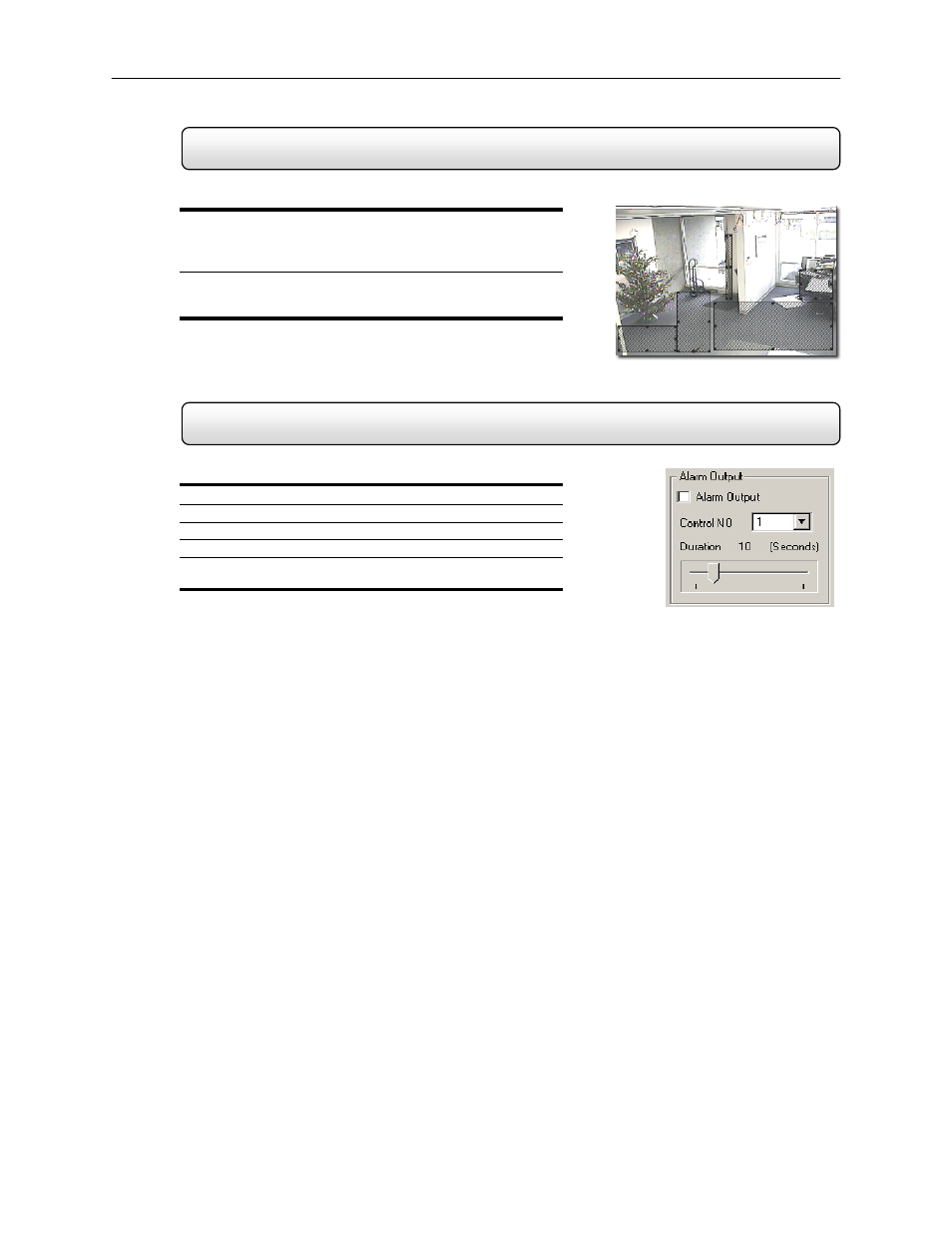

4.3.1 Creating a Motion Area
Creating a Motion Area
1) Place the mouse pointer at the upper left hand corner of the
area you want to designate, press and hold down the left
mouse button, drag the mouse. Let go of the button when the
Motion Area is the size you want it to be.
2) Continue creating as many Motion Areas as you wish. You can
resize them and move them by dragging the sides and corners
of the Motion Area.
4.3.2
Activating an Alarm Output on a Motion Event
Enabling Alarm Output on a Motion Event
1) From the Motion Setup window, select a camera to edit.
2) Configure the camera for Motion.
3) Check the Alarm Output box.
4) Select a Control Output to activate for the selected camera.
5) Select the duration you wish the Control Output to be activated
for. When a Motion event occurs.
Figure 4.2.2.1
Figure 4.3.2
