TL-WR740N Wireless Lite N Router
- 74 -
Step 2: Enter the information like the screen shown below.

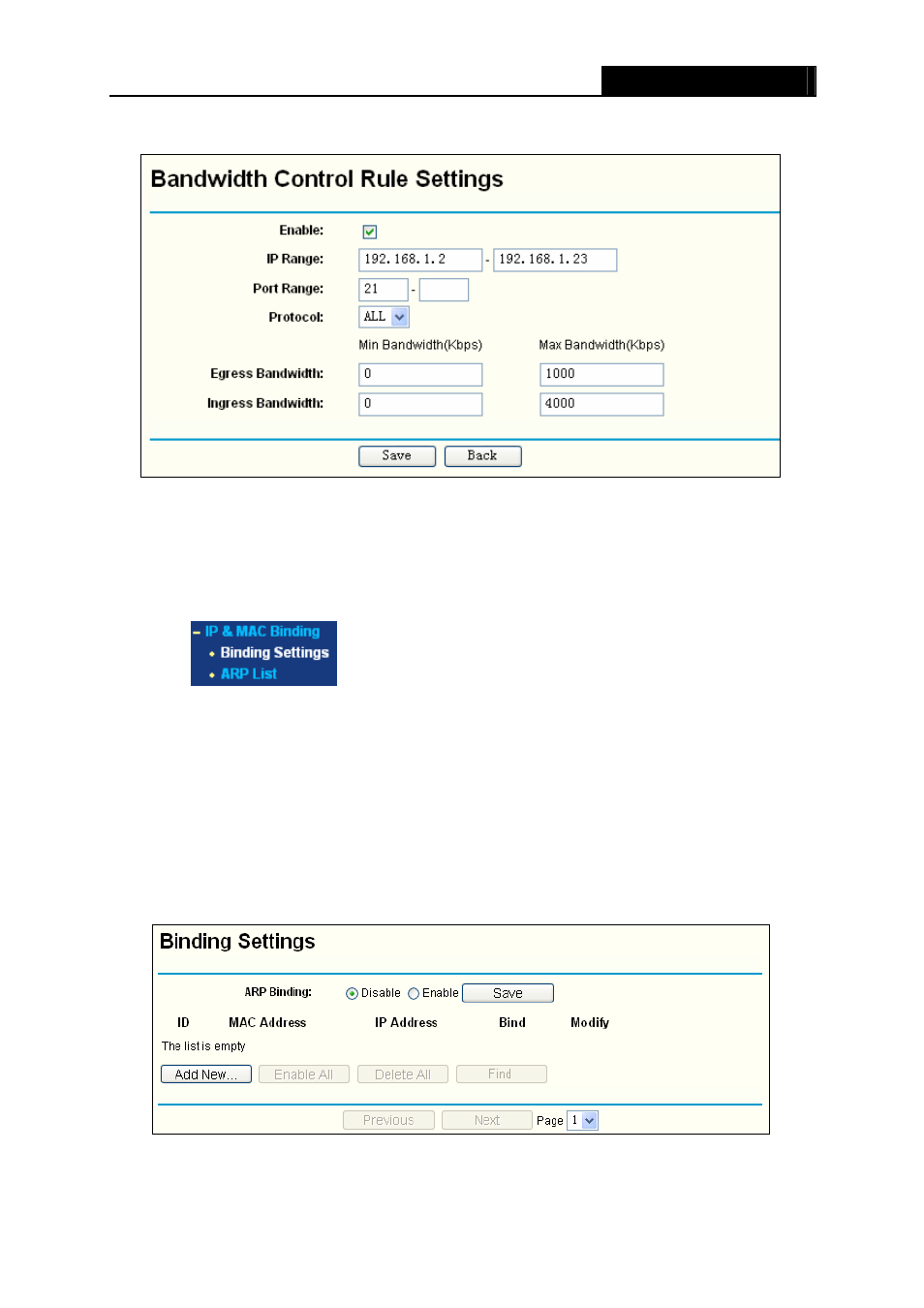

Figure 4-61 Bandwidth Control Rule Settings
Step 3: Click the Save button.
4.14 IP& MAC Bing Setting
Figure 4-62 the IP & MAC Binding menu
There are two submenus under the IP &MAC Binding menu (shown in Figure 4-62): Binding
Setting and ARP List. Click any of them, and you will be able to scan or configure the
corresponding function. The detailed explanations for each submenu are provided below.
4.14.1 Binding Settings
This page displays the IP & MAC Binding Setting table; you can operate it in accord with your
desire as shown in Figure 4-63.
Figure 4-63 Binding Settings
¾ MAC Address - The MAC address of the controlled computer in the LAN.
