TP-Link TL-WR740N - Manual (Page 75)

TL-WR740N Wireless Lite N Router
- 68 -

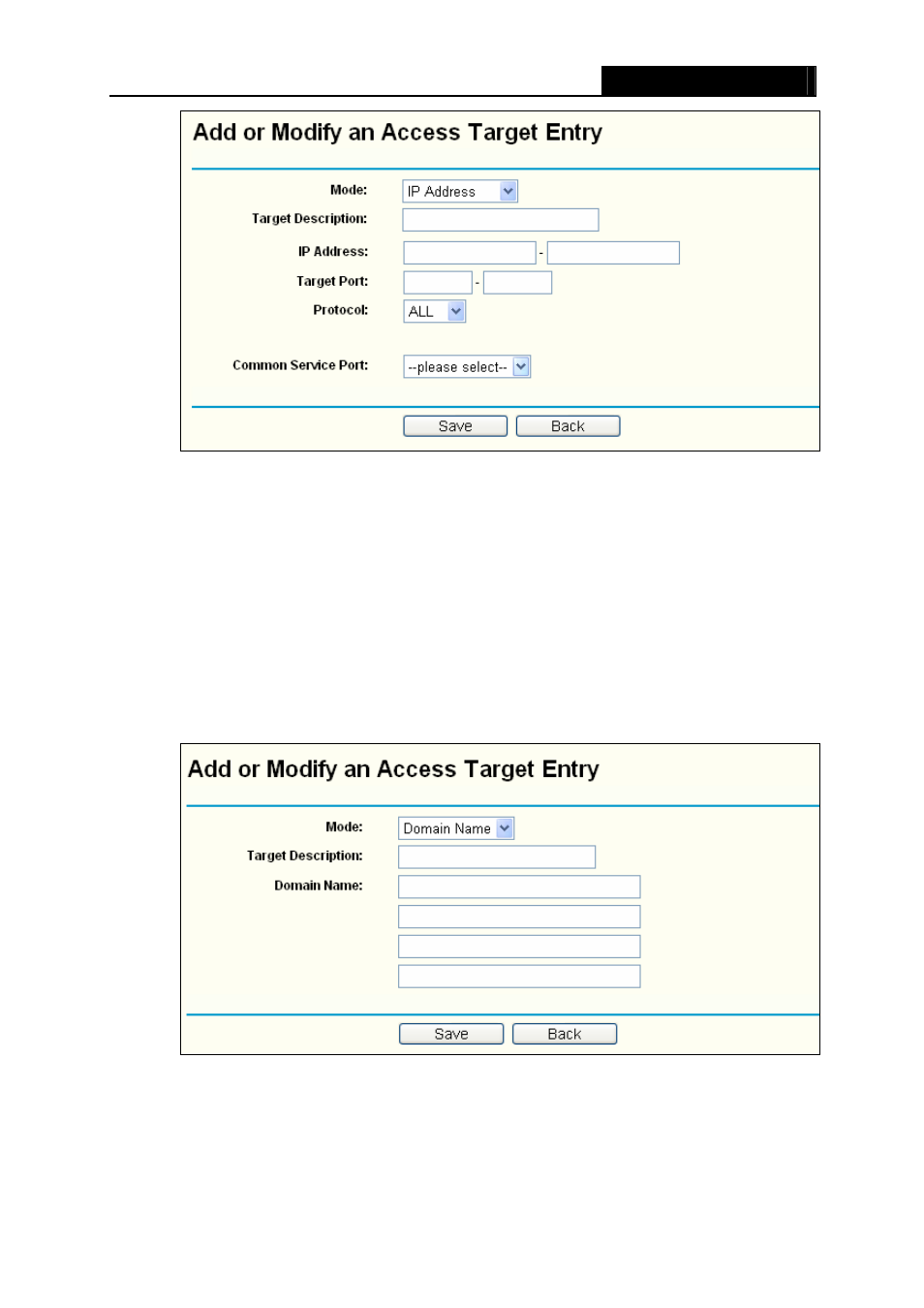

Figure 4-52 Add or Modify an Access Target Entry
1) In Target Description field, create a unique description for the target (e.g.
Target_1).
2) In IP Address field, enter the IP address of the target.
3) Select a common service from Common Service Port drop-down list, so that the
Target Port will be automatically filled. If the Common Service Port drop-down list
don’t have the service you want, specify the Target Port manually.
4) In Protocol field, select TCP, UDP, ICMP or ALL.
z If you select Domain Name, the screen shown is Figure 4-53.
Figure 4-53 Add or Modify an Access Target Entry
1) In Target Description field, create a unique description for the target (e.g.
Target_1).
