TL-WR740N Wireless Lite N Router
- 22 -

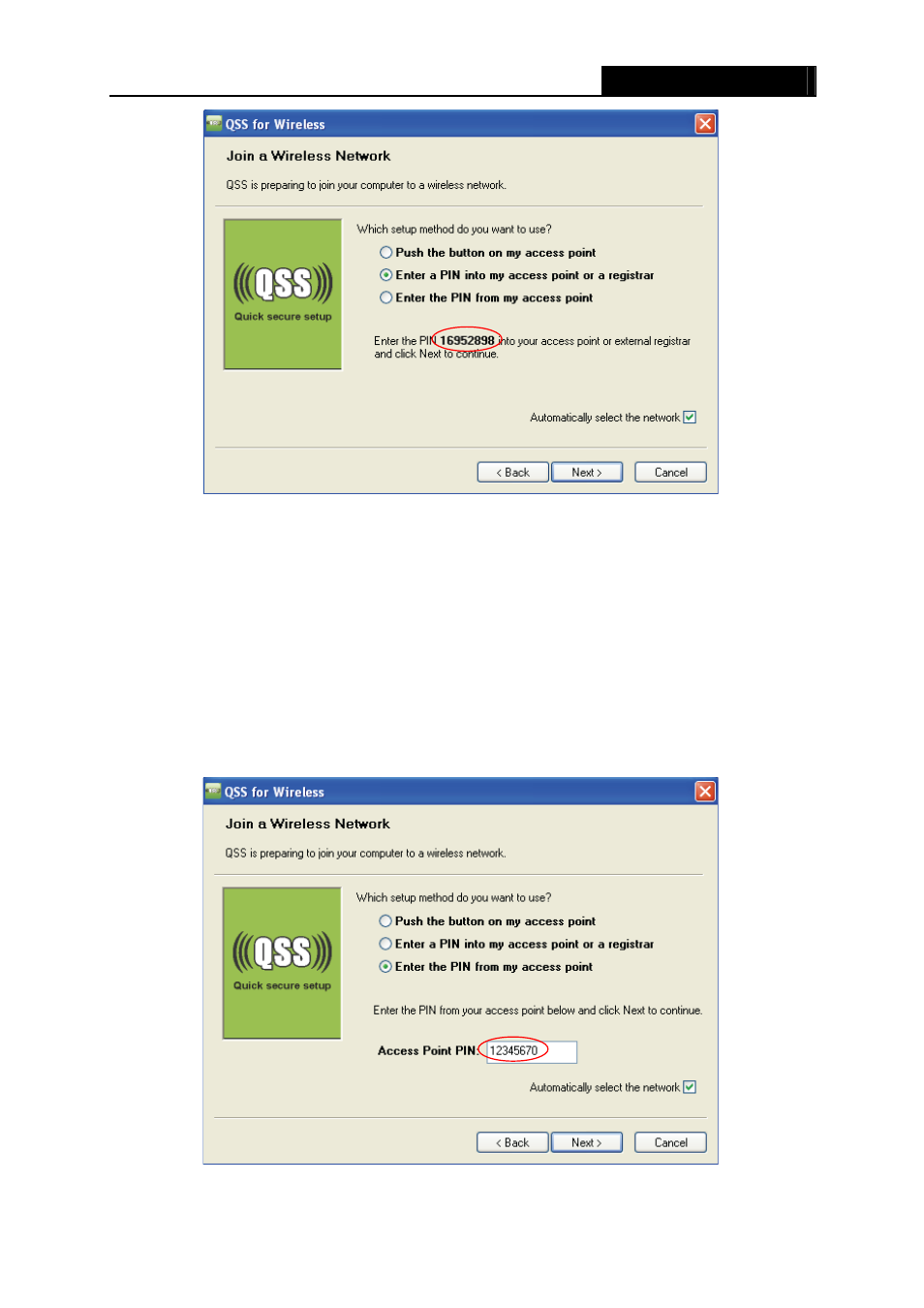

The QSS Configuration Screen of Wireless Adapter
)
Note:
In this example, the default PIN code of this adapter is 16952898 as the above figure shown.
Method Two: Enter the PIN from my Router
Step 1: Get the Current PIN code of the Router in Figure 4-3 (each Router has its unique PIN
code. Here takes the PIN code 12345670 of this Router for example).
Step 2: For the configuration of the wireless adapter, please choose “Enter the PIN from my
access point” in the configuration utility of the QSS as below, and enter the PIN code of
the Router into the field after “Access Point PIN”. Then click Next.
The QSS Configuration Screen of Wireless Adapter
