TL-WR740N

Wireless Lite N Router

- 93 -

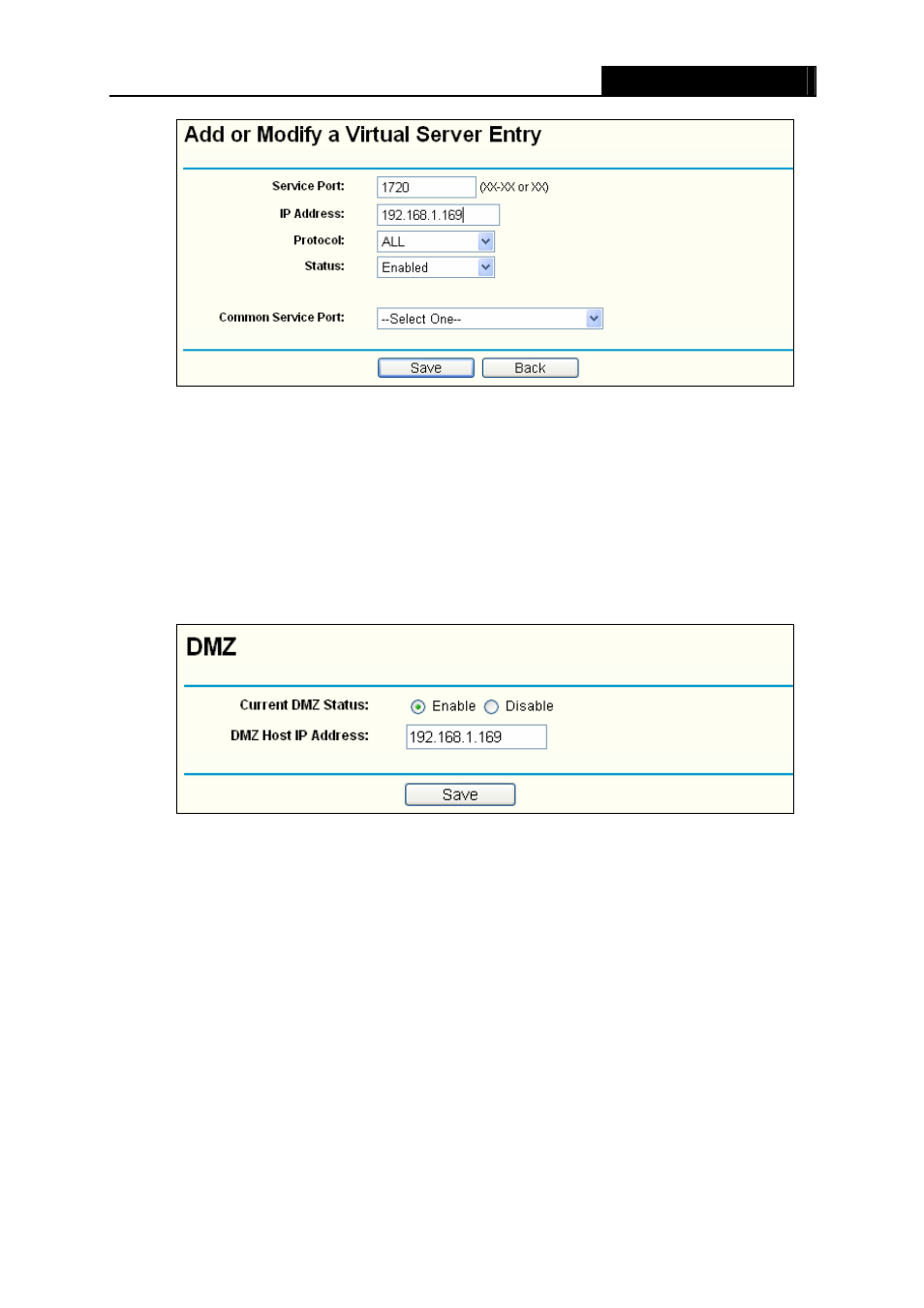

Figure A-5 Add or Modify a Virtual server Entry

)

Note:

Your opposite side should call your WAN IP, which is displayed on the “Status” page.

4) How to enable DMZ Host: Log in to the Router, click the “Forwarding” menu on the left

of your browser, and click "DMZ" submenu. On the "DMZ" page, click Enable radio

button and type your IP address into the “DMZ Host IP Address” field, using

192.168.1.169 as an example, remember to click the Save button.

Figure A-6 DMZ

5) How to enable H323 ALG: Log in to the Router, click the “Security” menu on the left of

your browser, and click “Basic Security” submenu. On the “Basic Security” page,

check the Enable radio button next to H323 ALG. Remember to click the Save button.
