6-12 Field Service
6.5.6
Removing the Heat Sink Assembly
Use the following procedure to remove and replace the Heat Sink Assembly:
1.
Remove the Keyboard Assembly as described in Paragraph 6.5.4.
2.
Remove the two screws that secure the heat plate to the housing as shown
in Figure 6-9.
3.
Replacement is the reverse of Steps 1 and 2.

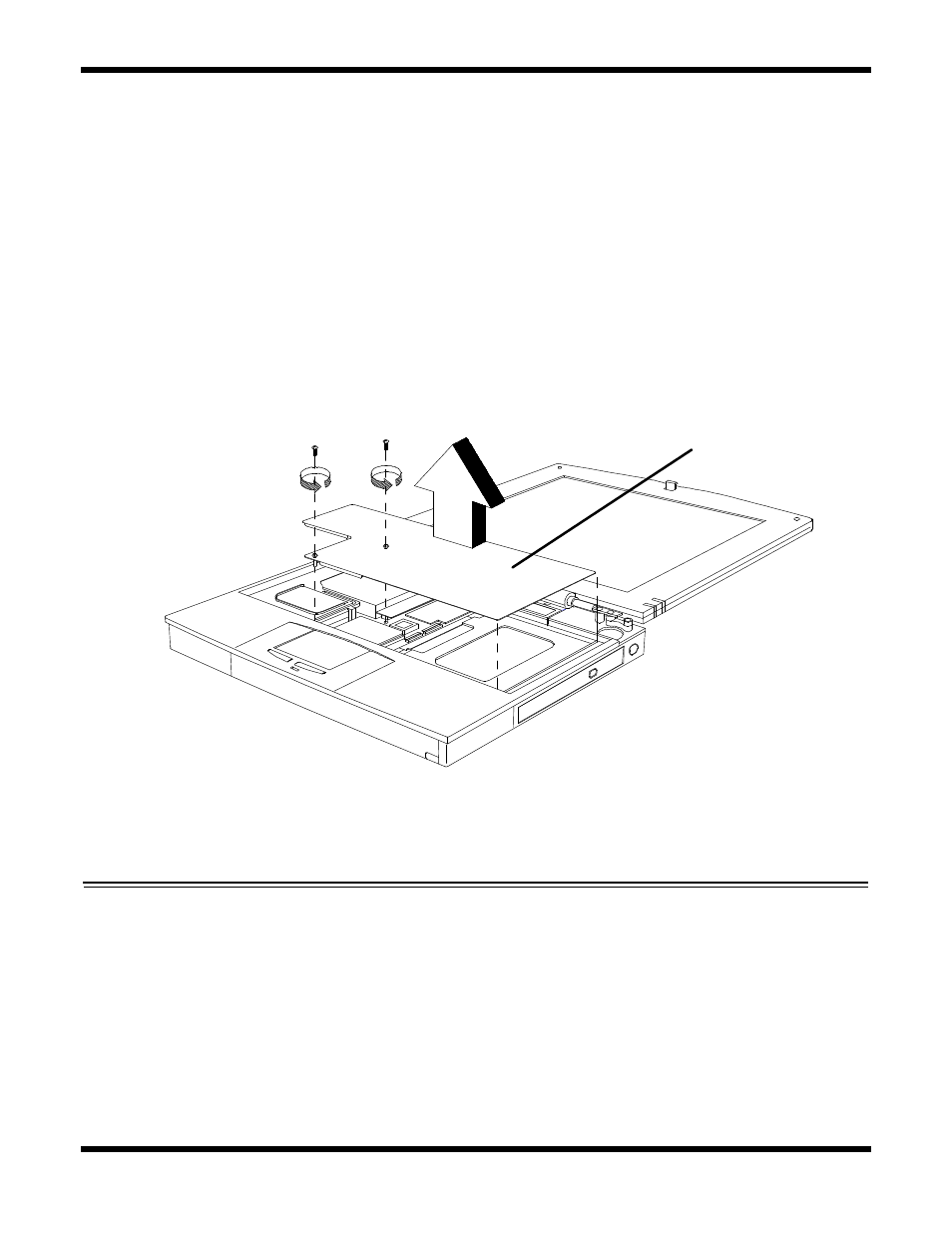

Figure 6-9 Removing/Replacing the Heat Sink Assembly
Heat Sink
Assembly
