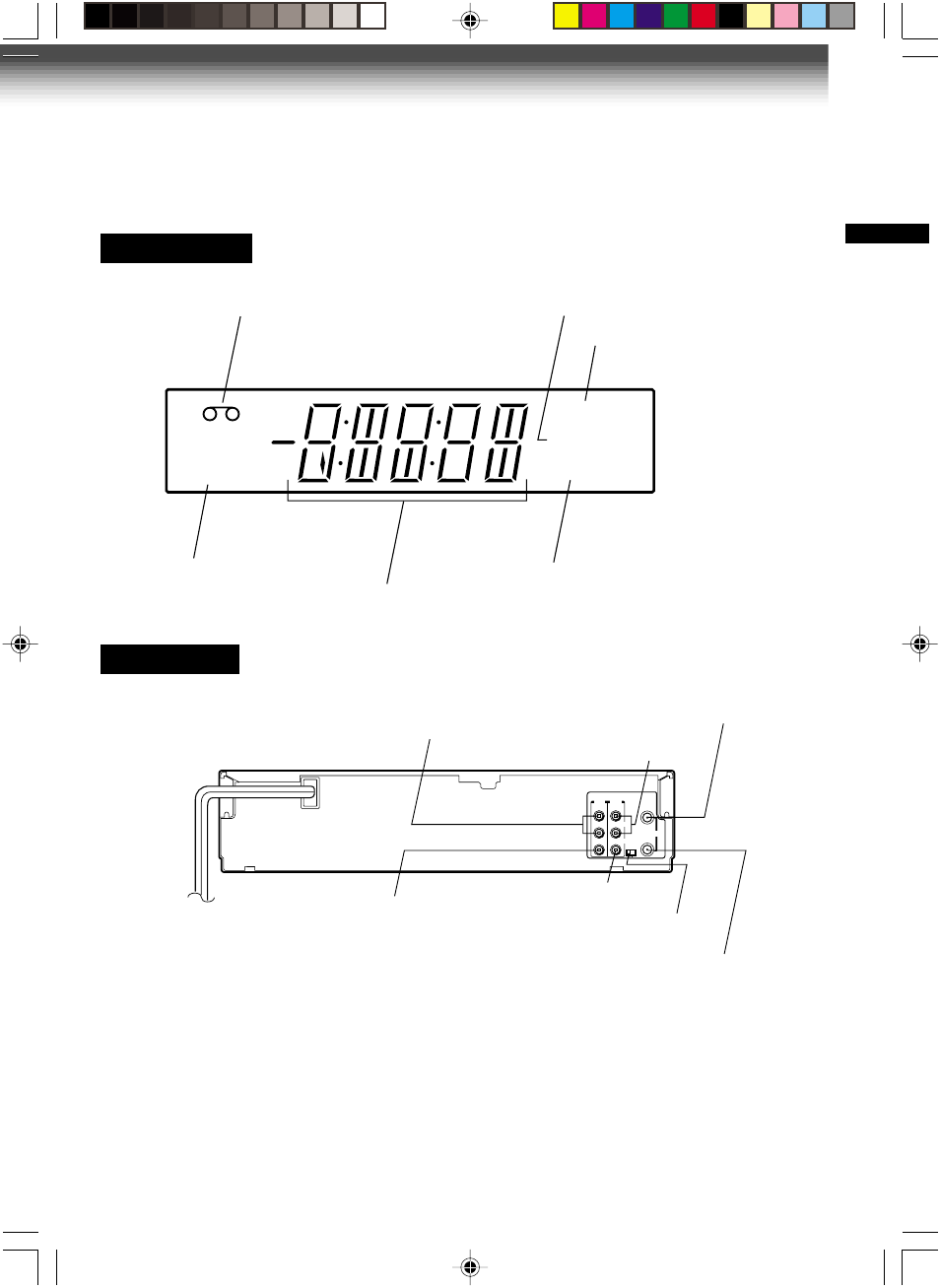

Rear Panel
LINE IN 1 AUDIO (Rear), 2 (Front) jacks
If the connected equipment is monaural (has one audio output jack), connect the L (MONO) side, the same
sound is recorded on both L and R on the Hi-Fi track.
Multifunctional
indicator
VCR indicator
Cassette indicator
Timer recording indicator
Hi-Fi indicator
SAP indicator
VCR Display
Hi-Fi
SAP
VCR
TIMER
INTRODUCTION
L
R
CH selector (3/4)
LINE OUT AUDIO jacks (L, R)
LINE OUT VIDEO jack
RF IN (FROM ANT.) terminal
LINE IN 1 AUDIO jacks (L, R)
RF OUT (TO TV) terminal
LINE IN 1 VIDEO jack
CH
OUT
( TO TV)
IN
( FROM ANT.)
LINE
OUT LINE
IN 1
VIDEO
AUDIO
3 4
RF
