38
FRAME SETUP OVERVIEW
The Frame Setup Menu allows configuration of the PPS, resolution, quality, and sensitivity of camera channels. When configuring the
PPS sliders the BLUE slider represents the PPS the XVR will record during intensive recording and have available for transmitting to
remotely connected systems. The RED slider represents the PPS that will be recorded by the XVR under normal recording conditions.
The total PPS of all blue sliders may not exceed the recording PPS of the XVR unit. The PPS of a red slider may not exceed that of the
blue slider for the same channel. The dual sliders allow configuration of the XVR to record at a lower PPS while still being able to
transmit at a higher PPS to remote connections.
Ex. If a camera channel is set to 25 PPS (blue) and 7 PPS (red), the XVR will record at 7 PPS and users viewing live video remotely
can receive up to 25 PPS.
NOTE: The 4 Channel XVR only allows the user to select one frame rate for both recording and remote viewing.

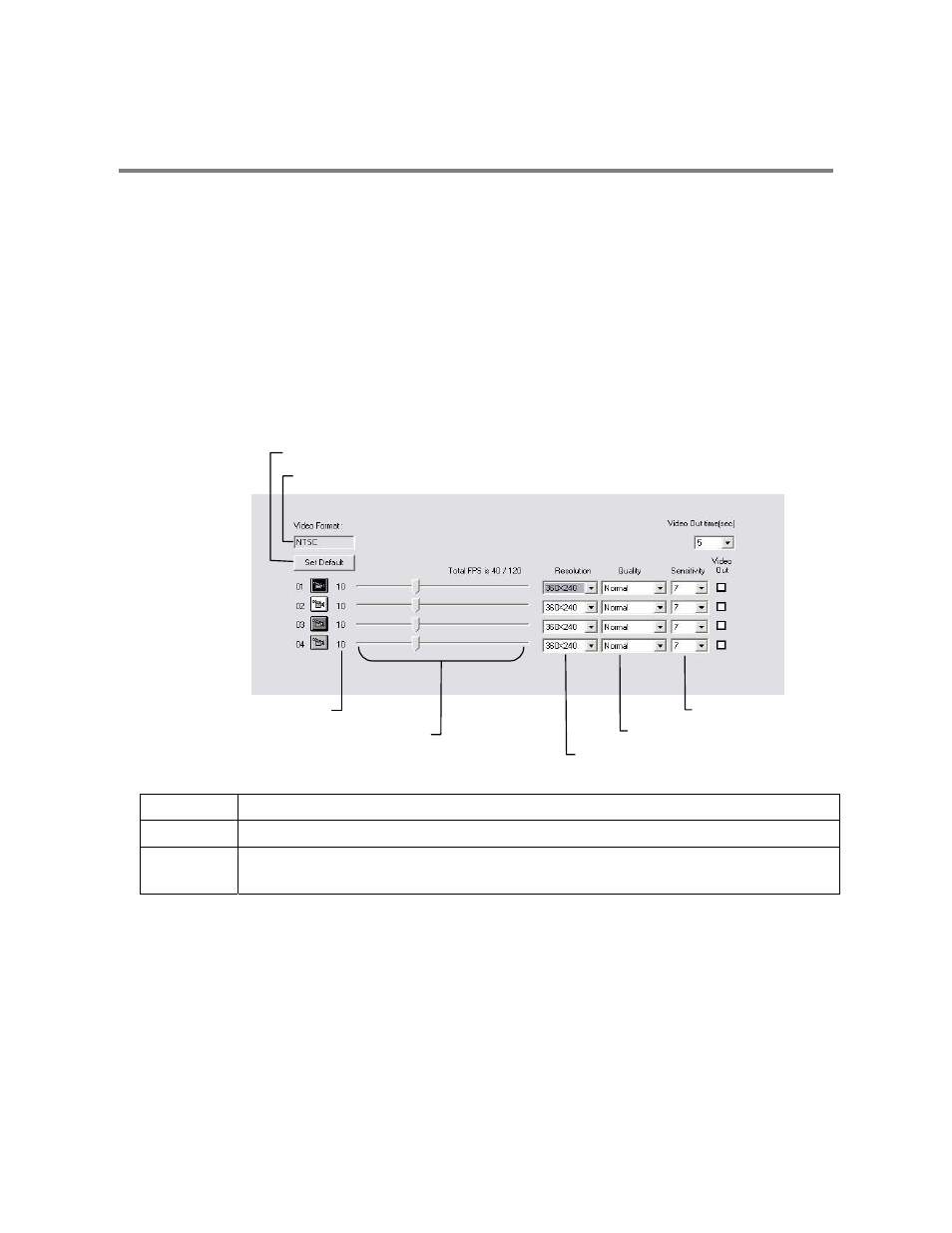

Frame Setup (4 Channel)
Frame Select Sets the PPS recorded by the XVR and available for viewing on a remote client PC
Video Quality Lower quality video has a smaller file size but appears more pixilated
Sensitivity Sets the Keyframe refresh rate. Adjusting this setting can have negative effects on video quality
NOTE: Do not change from default setting unless instructed by a system administrator.
Video Format – NTSC/PAL
No. of Recording Frames Selected
Recording Resolution
Video Quality
Sensitivity
Frame Select
Reset Default Settings
