Installation DNI-3 User Manual
2-2 Telect, Inc. 108469 Issue A Rev 2
In the above table, the first shaded row is the capacity for a 7-ft bay. The
second shaded row is the capacity for an 8-ft bay; the last shaded row is for
an 11.5-ft bay.

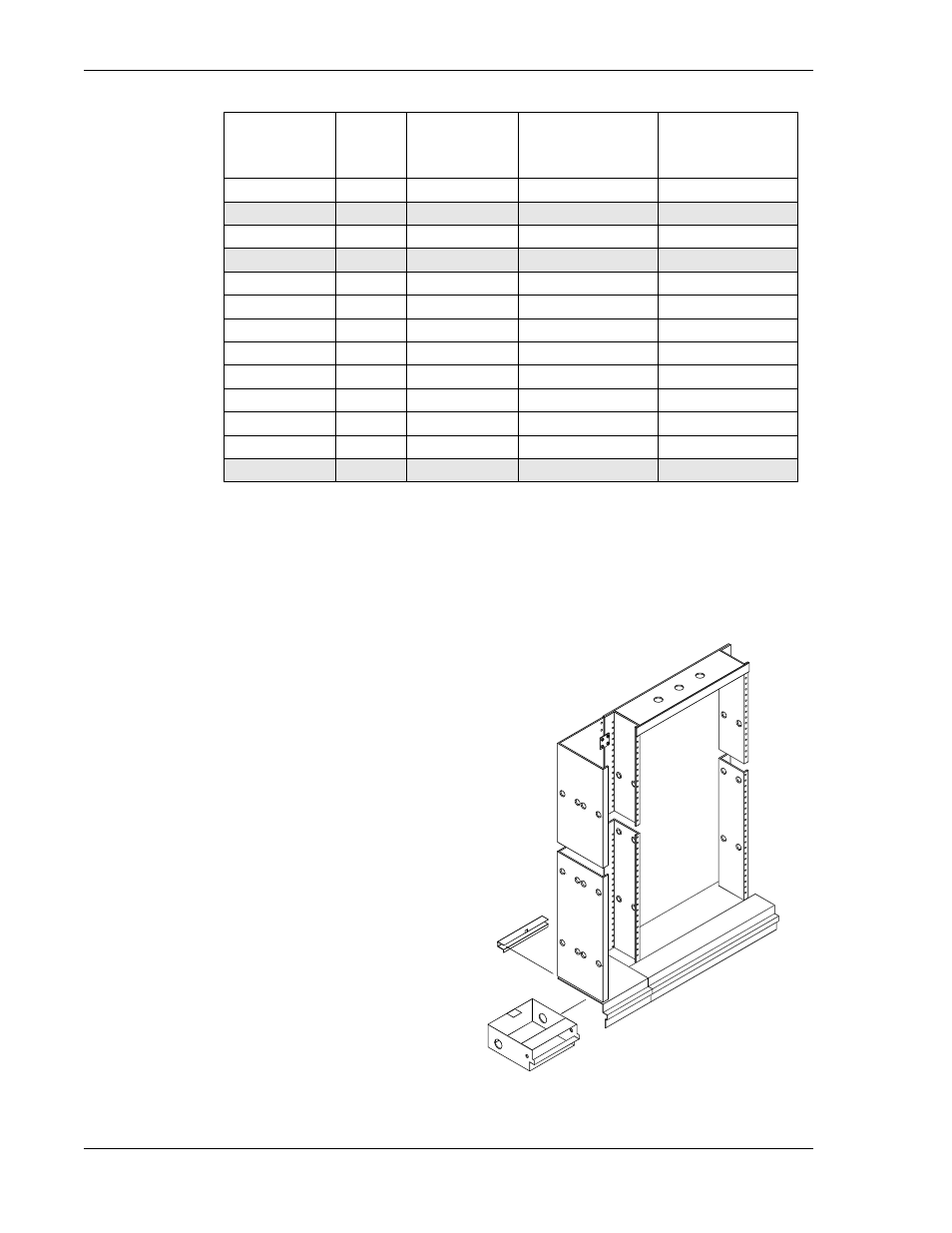

Network Bay Extender Panel
Each network bay extender
panel provides 81 square
inches (522.5 square cm) of
cable routing space (enough
for 1280 RG59 cables). The
panel comes with nine cable
management brackets that se-
cure and channel the circuit
cables. Telect recommends
two extender panels for each
fully provisioned DNI-3 net-
work bay. This provides ade-
quate cable routing space for
cables going to and coming
from the DNI-3 network bay.
Tools and Equipment
No special tools or equip-
ment are required.
385–416 13 1664 21.30 39
417–448 14 1792 22.94 42
449–480 15 1920 24.58 45
481–512 16 2048 26.21 48
513–544 17 2176 27.85 51
545–576 18 2304 29.49 54
577–608 19 2432 31.13 57
609–640 20 2560 32.77 60
641–672 21 2688 34.41 63
673–704 22 2816 36.04 66
705–736 24 2944 37.68 69
737–768 24 3072 39.32 72
769–800 25 3200 40.96 75
DCS
Terminations
Panels Total Cables
Cable Space
Needed per Side
of Bay (in.
2
)
EIA Bay Spaces
Required
Existing
Network
Bay
Extender
Panel
