DNI-3 User Manual User Functions
Issue A Rev 2 108469 Telect, Inc. 4-3
Step Action

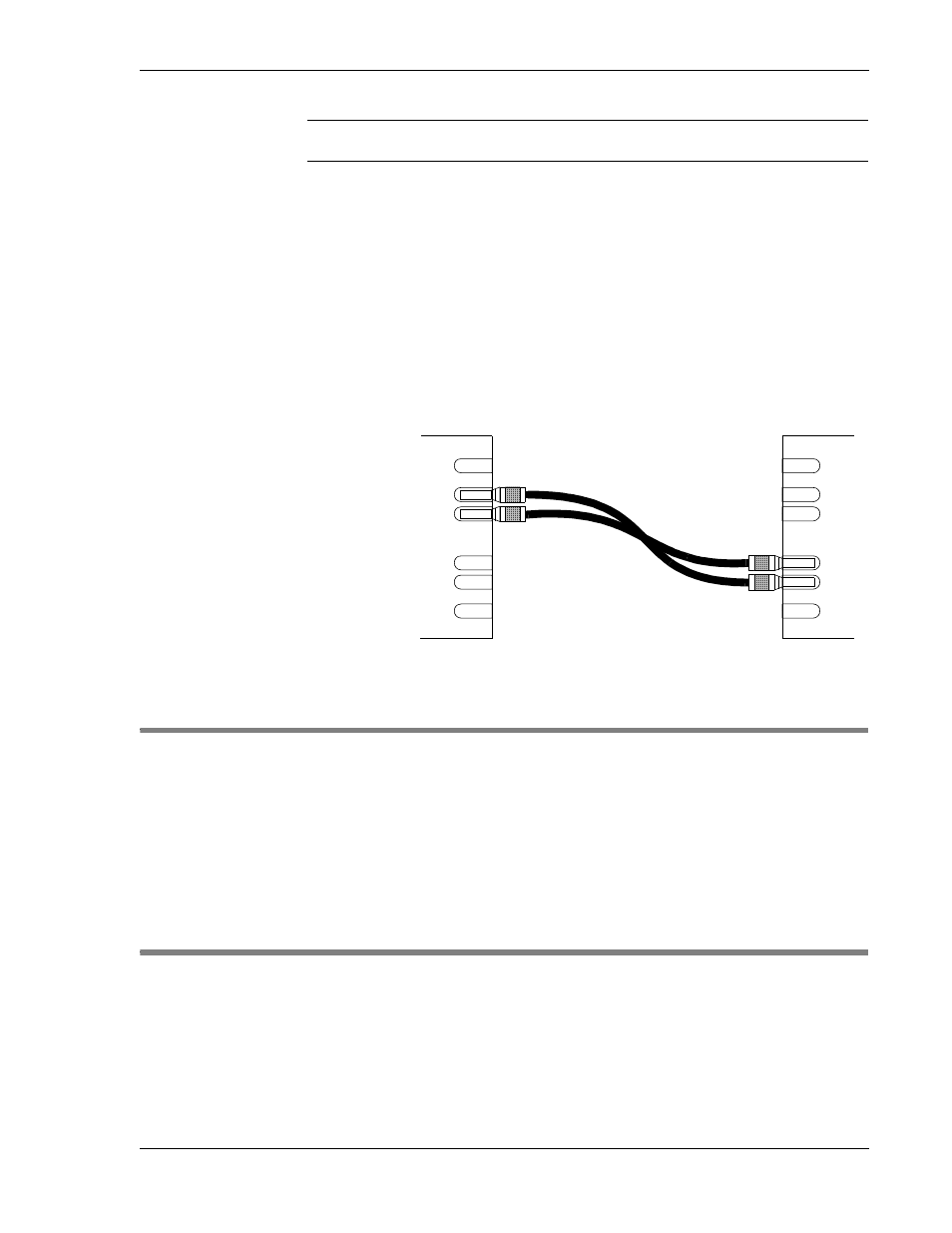

1. Using one Mini-WECO patch cord:
a. Insert the plug of one end into the IN TLJ at the first location.
b. Insert the plug of the other end into the OUT TLJ at the second
location.
2. Using a second Mini-WECO patch cord:
a. Insert the plug of one end into the OUT TLJ at the first location.
b. Insert the plug of the other end into the IN TLJ at the second lo-
cation.
L
OOPING
To temporarily loop an NE or DCS OUT port to its IN port, use the TLJs
on the front of the DNI-3 panel and a Mini-WECO looping plug.
Insert the looping plug into both the IN and OUT TLJs on the front of the
DNI-3 panel for looping either the NE (NE-2) or the DCS (NE-1) circuit.
M
ONITORING
Use the TLJs on the front of the DNI-3 panel and the following additional
equipment:
• Mini-WECO patch cord (Mini-WECO plug at each end)
• Test set
O
I
O
I
