Installation DNI-3 User Manual
2-4 Telect, Inc. 108469 Issue A Rev 2
7. Starting at the lowest DNI-3 panel and working upward, connect
the DCS OUT cables to the NE-1 OUT termination points on the
rear of the DNI-3 panels.

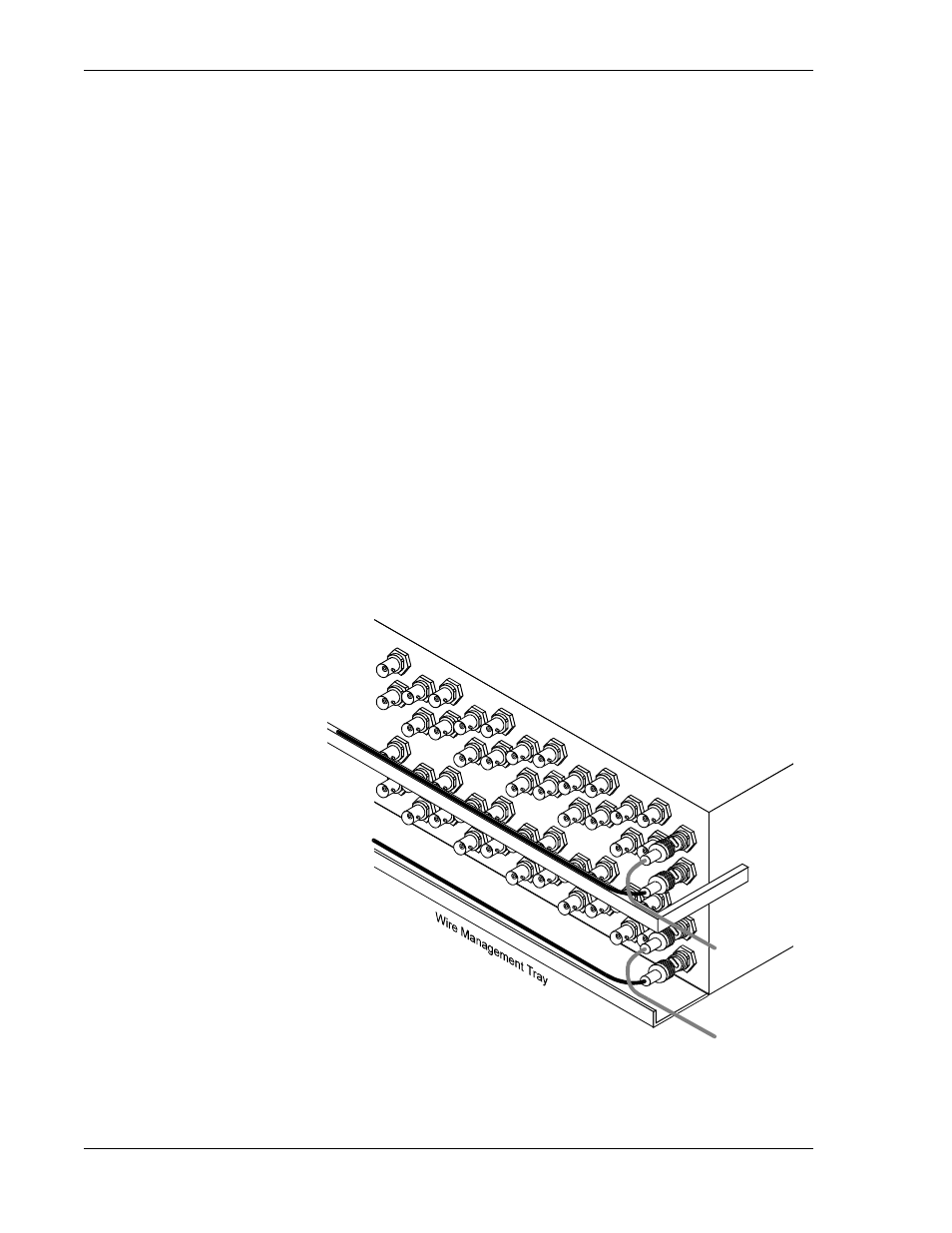

8. Secure the DCS OUT cables to the wire management tray via the
tie-down slots.
9. Route the NE IN cables to the same side of the network bay as the
DCS IN cables. Tie-wrap the cables in place within the extender
panel cable management brackets.
10. Starting at the lowest DNI-3 panel and working upward, connect
the NE IN cables to the NE-2 IN termination points on the rear of
the DNI-3 panels.
11. Secure the NE IN cables to the tie-down bar.
12. Route the NE OUT cables to the same side of the network bay as
the DCS OUT cables. Tie-wrap the cables in place within the ex-
tender panel cable management brackets.
13. Starting at the lowest DNI-3 panel and working upward, connect
the NE OUT cables to the NE-2 OUT termination points on the rear
of the DNI-3 panels.
14. Secure the NE OUT cables to the tie-down bar.
IN
IN
OUT
OUT
Tie-Down
Bar
