23 3M ™ Multimedia Projector MP7630 © 3M IPC 2000
Optional Video Module
Features
Optional Video Module Connections
Laser Disc
S-VHS
RED WHT
OUT OUT
IN
IN IN IN
VCR
RED WHT YEL
OUT OUT OUT
Audio L
Audio R
Video
Audio L
Audio R
OUT
IN
Cable
The Optional Video Module makes it possible to hook the MP7630 to a laser disc, VCR, or other
video devices. Two versions will be available: an NTSC Package (with RCA connectors and televi-
sion tuner), and a PAL package (with a SCART connector and no television tuner).
3
4
6
5
2

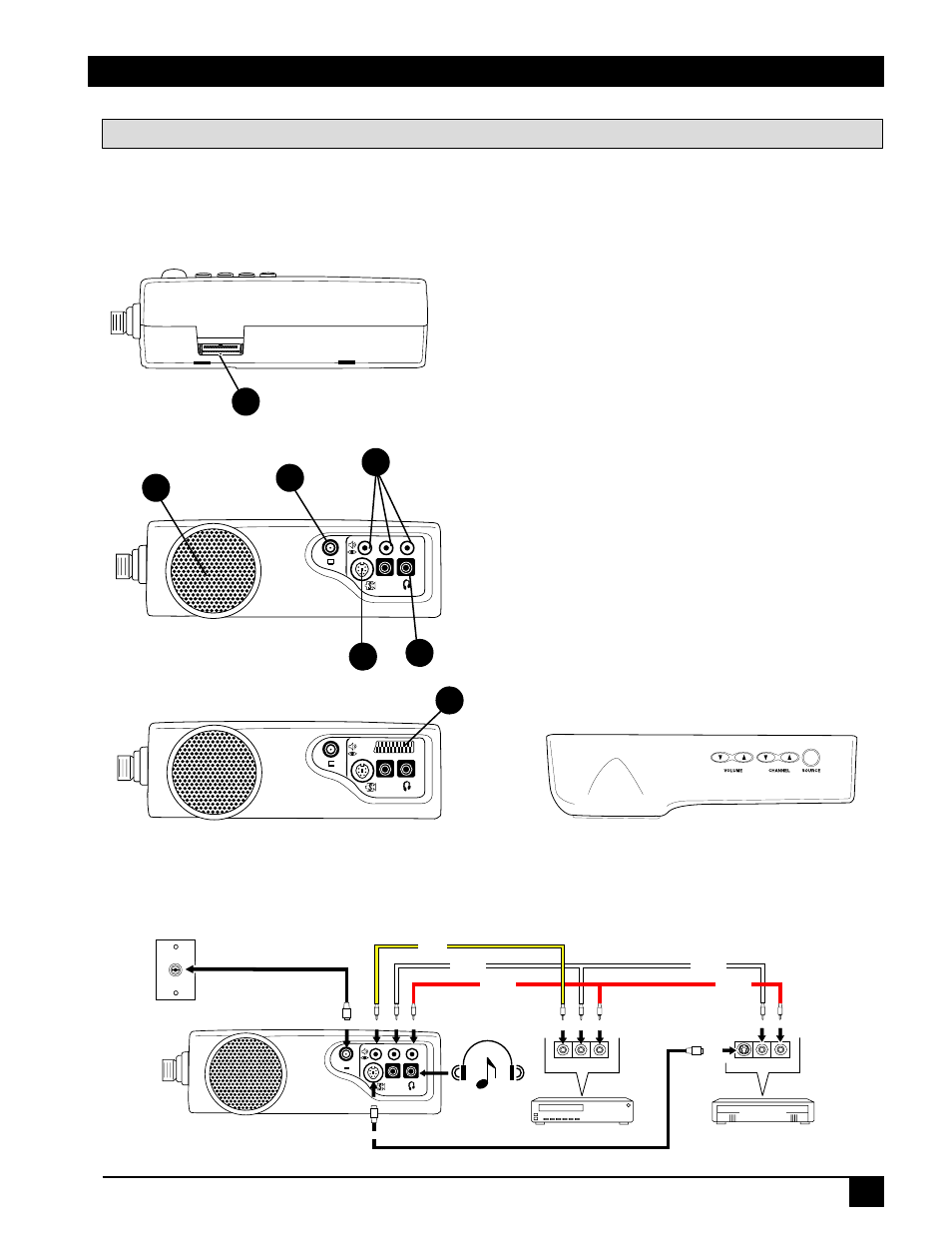

Back of projector without Optional Video Module
Back of projector with NTSC Tuner Module
1. Video Module Connection
2. Speaker
3. Cable Television (CATV) Connection
4. RCA Cable Connection
(a) Video (Yellow)
(b) Audio (White/Red)
5. S-Video Connection
6. Headphone Jack
7. SCART Connection
NTSC Package:
• NTSC Tuner Module
• CATV
• S-Video
• 3 RCA
• Audio
1
PAL Package:
• PAL Video Module
• S-Video
• SCART connector
• Audio
Back of projector with PAL SCART Module Top view of video module
7
